Lateral for wedge wire resin trap

More Views

Lateral for wedge wire resin trapLateral for wedge wire resin trapLateral for wedge wire resin trap

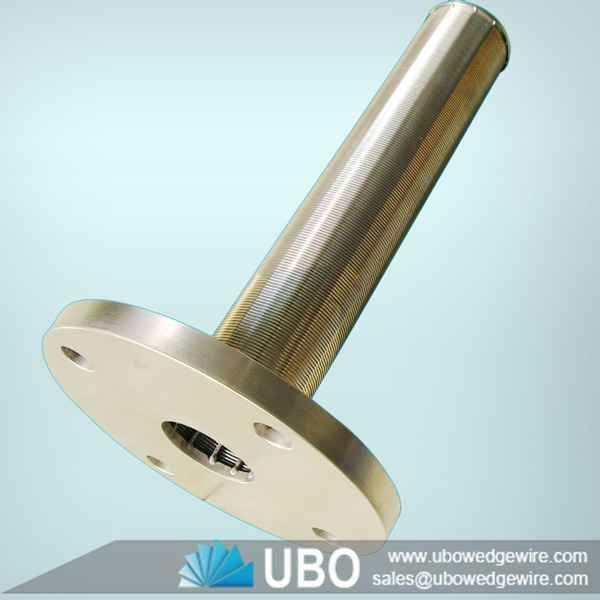

Lateral for wedge wire resin trap

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Lateral for wedge wire resin trap

Lateral for wedge wire resin traps are placed in a housing, inline with the flow to capture expensive media from traveling downstream. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly thus minimizing pressure loss through the system.
Your resin trap can be designed to suit either new or existing strainer bodies.

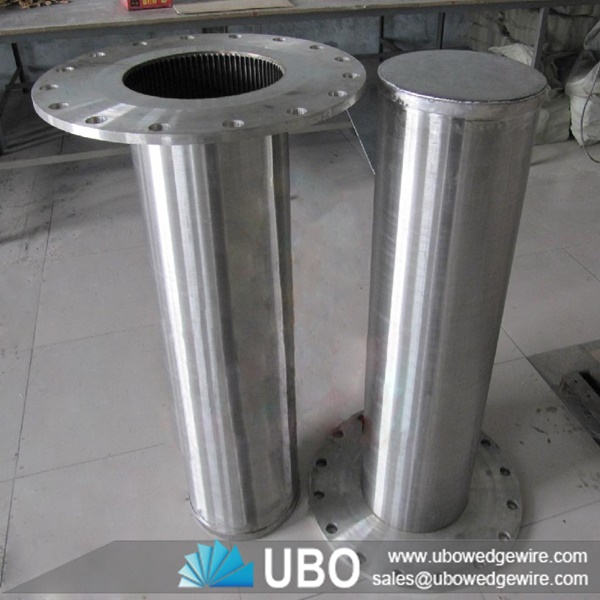

Lateral for wedge wire resin trap

Used of Lateral for wedge wire resin trap

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Principle of Lateral for wedge wire resin trap

A Resin Trap / Strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low,so that cleaning can be done during flow interruption.

Advantages of Lateral for wedge wire resin trap

Very precise slots for perfect particle retention combined with minimum
Obstruction of the process flow,flexibility in design,strong construction,Large open area,plug-resistant slot design.

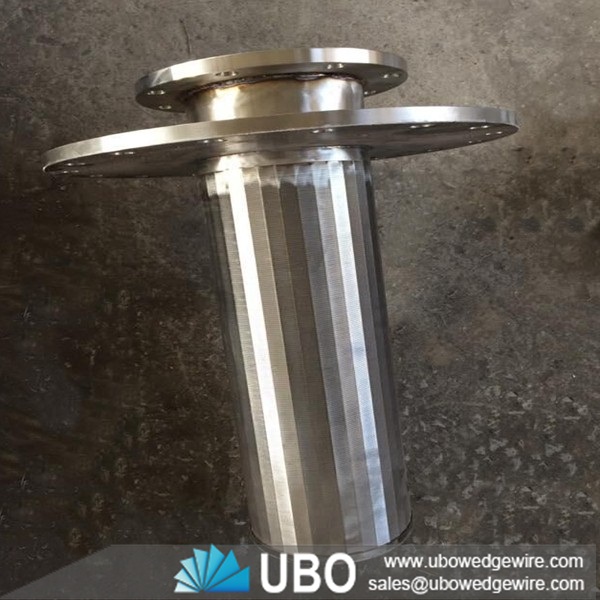

Lateral for wedge wire resin trap

Specifications of Lateral for wedge wire resin trap:

Type Slots mm ΦA ΦB L1mm L2mm
AM 0.05, 0.1,   0.2,   0.3,   0.5,    1.0 G2" Φ50 30,55 73, 126, 180, 231, 284, 338, 389
G1 1/2" Φ38 30,55
G2" 1 1/4"NPT 30
G2" 1 1/2"NPT 30
Φ68 G2" 30
1 1/2"NPT 1 1/4"NPT 30
2 1/2" Φ60 20

Lateral for wedge wire resin trap

Packaging and Transportation of Lateral for wedge wire resin trap:

Lateral for wedge wire resin trap

transportation
