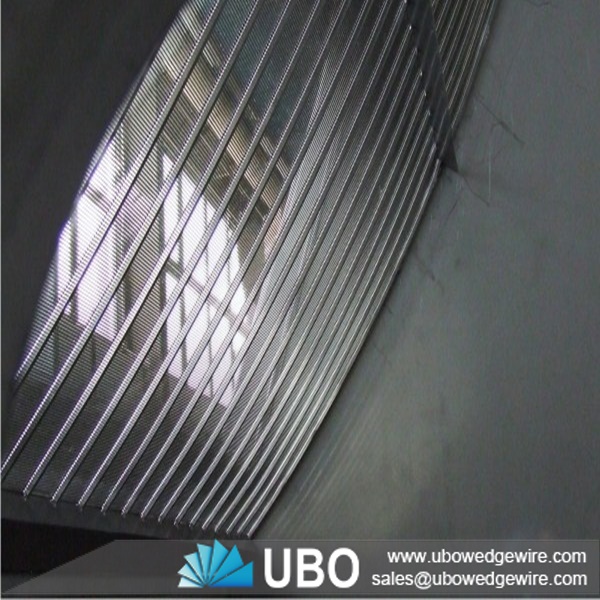

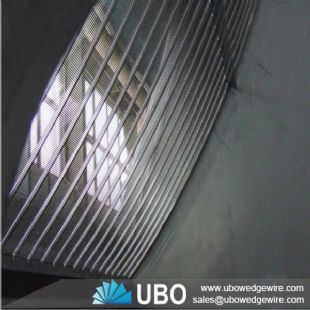

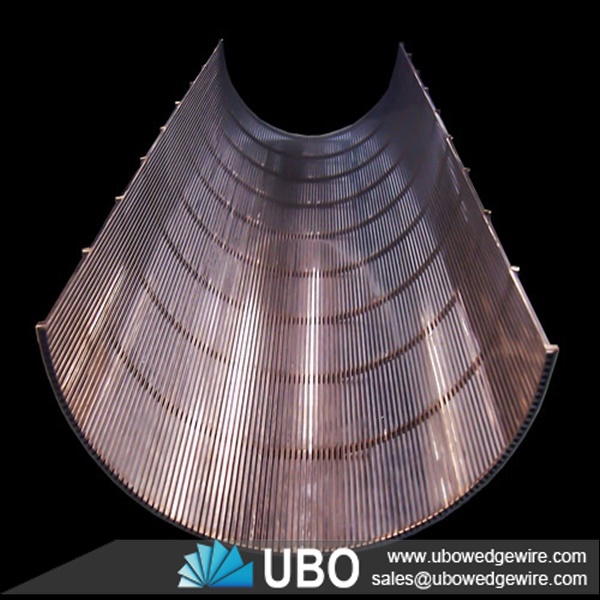

Gravity screen for filtration

More Views

Gravity screen for filtrationGravity screen for filtrationGravity screen for filtration

Gravity screen for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.


Details of Gravity screen for filtration

Gravity screen can be fabricated in a range of both flat panels and tubes. Wedge-wire and support profiles are resistance welded with accurate slot dimensions. The screens can be mechanically and electropolished, and given additional surface hardening treatments.

Further support structures and fastening brackets, can be added. Tubes can have various end piece connections and additional internal strengthening.

The wire tubes can be made for the support of other filter media, such as filter cloths.

Feature of Gravity screen for filtration

1 Compact construction, heat resistant, rust-resistant, good mechanism performance, long working life, wear-resistant, low temperature resistant, long replacement cycle, saving production costs.

2 well-proportioned screen aperture, not prone to jam, increase quality and efficiency of refined powder.

3 Proper construction, saving time and strength during installation and replacement, i.e. reducing time for installation, examination and maintainance, decreasing labor strength.

Application of Gravity screen for filtration

Gravity screens are mainly used for liquid/solid seperation and manufactured to suit a wide range of industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Our sieve bends offer many advantages: more fine fibre removal ,better flow rate ,original solutions to reduce spare parts cost , special alloys for improved wear life ,customised surface finishing.

Gravity screen for filtration

Specifications of Gravity screen for filtration:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.


galvanized low carton (LCG), stainless steel (304,316 etc.)


up to 6 meters.


from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

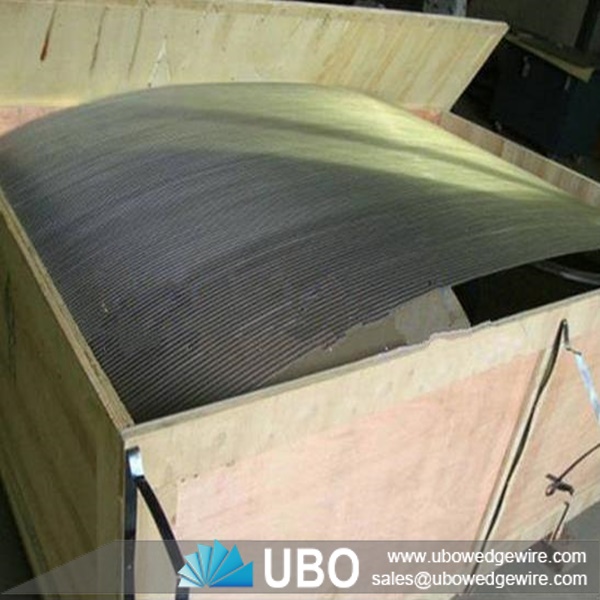

Packaging and Transportation of Gravity screen for filtration:
