Corrosion Resistant Wedge Wire Screen Panel for Water Treatment

More Views

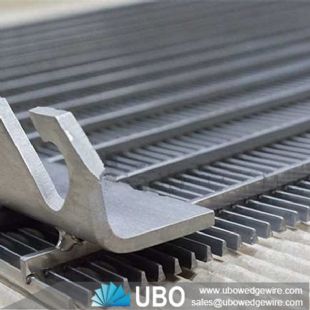

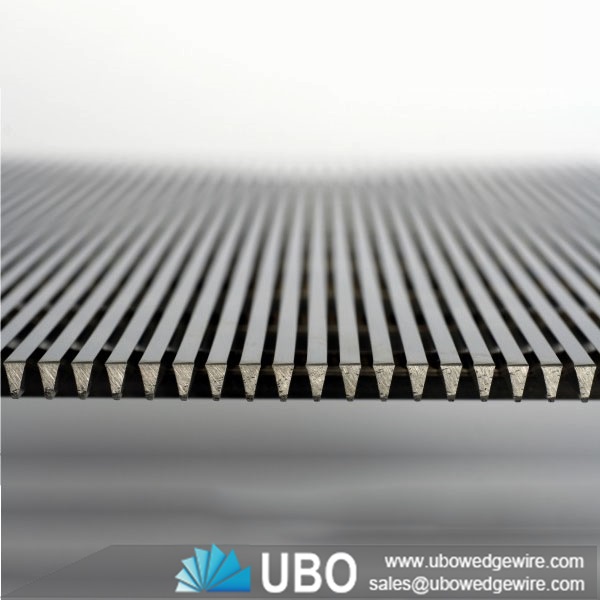

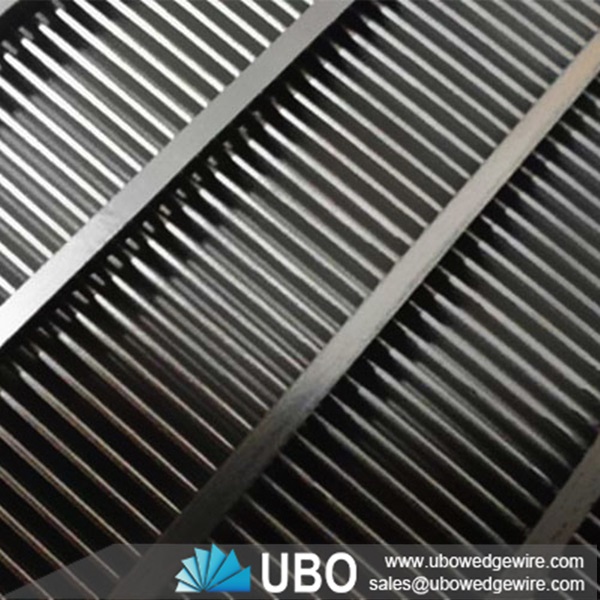

Corrosion Resistant Wedge Wire Screen Panel for Water TreatmentCorrosion Resistant Wedge Wire Screen Panel for Water TreatmentCorrosion Resistant Wedge Wire Screen Panel for Water Treatment

Corrosion Resistant Wedge Wire Screen Panel for Water Treatment

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Corrosion Resistant Wedge Wire Screen Panel for Water Treatment

Wedge wire screen plate is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized

Application for Corrosion Resistant Wedge Wire Screen Panel for Water Treatment

V wire screen panels are used in sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more

Advantages for Corrosion Resistant Wedge Wire Screen Panel for Water Treatment

1) high porosity

Trapezoidal (wedge) wire wound on the support bar of circular type arrangement form a continuous high-density uniform gap, to ensure that the porosity and no clogging of screens.

2) Good pressure resistance.

According to the actual needs of longitudinal strut arrangement of design and connectivity gaps in the form of screens, which makes the products have a high compression performance.

3) Low operating costs

High porosity of the filter pipe is more conducive to groundwater infiltration. Plenty of deep water to make the water level drop is reduced, thus reducing energy consumption. Especially suitable for water wells fine sand and silt formation.

4) Reduce pump wear

Under the same conditions, higher porosity makes speed of infiltration of groundwater drainage pipe to be slower than the speed of infiltration of other filtering device, thus avoiding sand into the drainage pipe in the larger pressure, reduce the pump wear.

5) Extend the life of wells

In contrast, groundwater infiltration high porosity for filter pipe more easier, low flow rate, extend the life of the well.

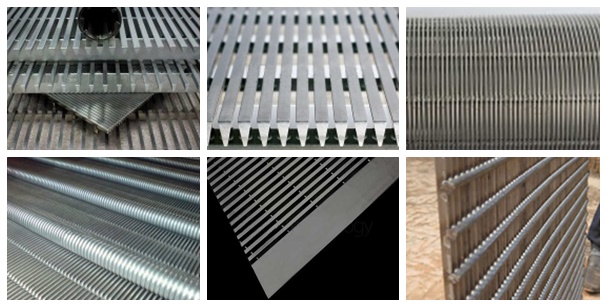

Corrosion resistant wedge wire screen water well oil water water treatment

Specifications of Corrosion Resistant Wedge Wire Screen Panel for Water Treatment:

Corrosion resistant wedge wire screen water well oil water water treatment



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Corrosion Resistant Wedge Wire Screen Panel for Water Treatment:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)

2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
