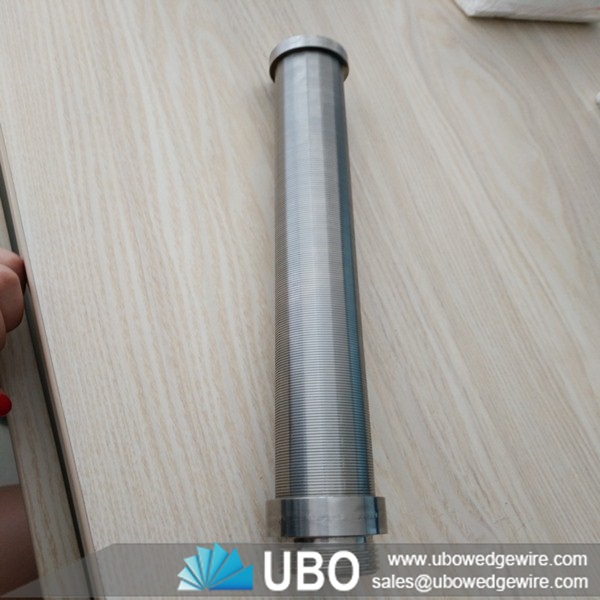

Wedge Wire screen tube for water well
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen pipe |
Application: | water-treatment,beer brewing,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

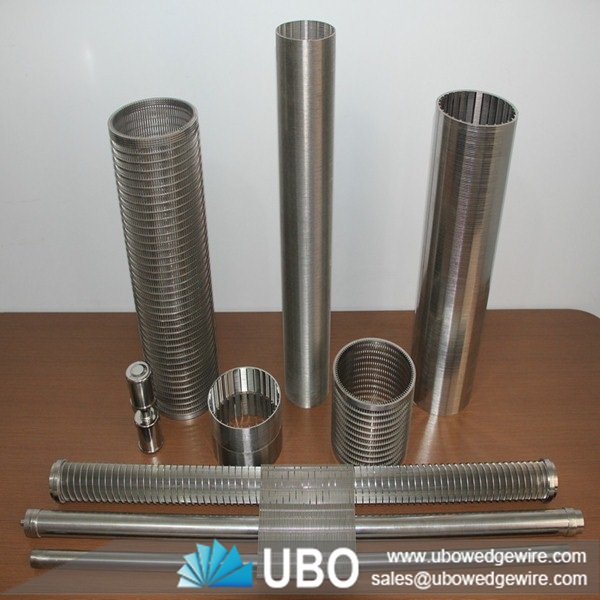

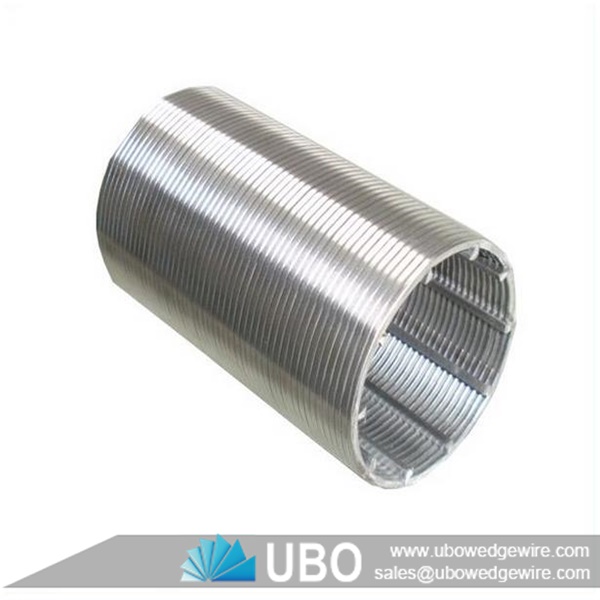

Details of Wedge Wire screen tube for water well
Wedge Wire screen tubes are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Application of Wedge Wire screen tube
The v wire wedge wire screen pipe are mainly used for the water-treatment,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.
Feature of Wedge Wire screen tube
Non-clogging surface .
Large open area .
Low pressure drop .
Hydraulic efficiency .
High flow rates .
Mechanical strength .
Abrasion-resistant .
Easy cleaning
Specifications of Wedge Wire screen tube for water well:
wedge wire |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
support rod |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 |
Note: other specifications available as per request |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters |
Diameter |
from 25mm to 1200mm. |
