304 SS wedge wire screen pipe for solid-liquid separation

More Views

304 SS wedge wire screen pipe for solid-liquid separation304 SS wedge wire screen pipe for solid-liquid separation304 SS wedge wire screen pipe for solid-liquid separation

304 SS wedge wire screen pipe for solid-liquid separation

Category:Wedge Wire Application
Material:stainless steel302,304,304L,316,316L
Properties:wedge wire screen
Application:water,food,industry,oil filtration,pharmaceutical industry etc.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 304 SS wedge wire screen pipe for solid-liquid separation

The V-shaped wire of wedge wire screen can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

304 SS wedge wire screen pipe for solid-liquid separation

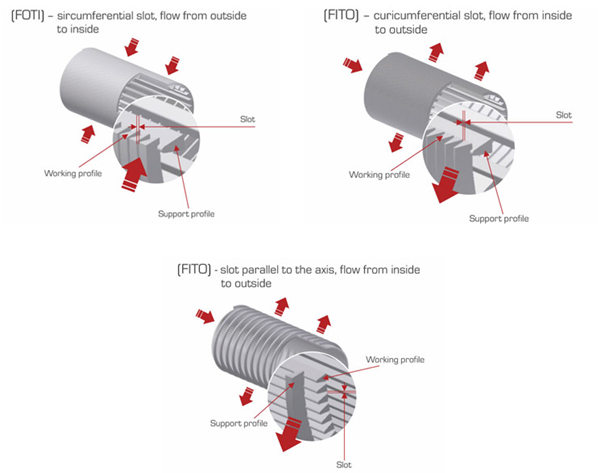

Characteristics of 304 SS wedge wire screen pipe for solid-liquid separation

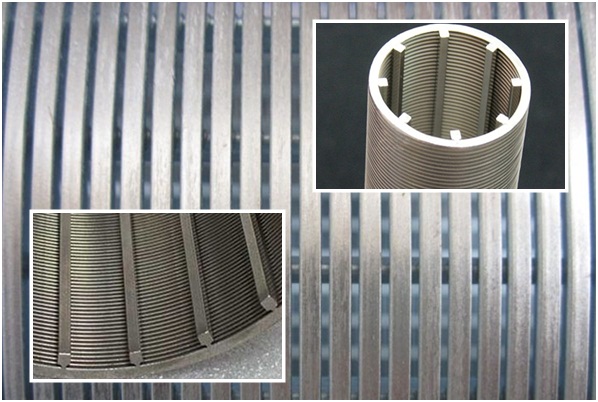

The wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantages of 304 SS wedge wire screen pipe for solid-liquid separation

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost

Application of 304 SS wedge wire screen pipe for solid-liquid separation

The wedge wire screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.

304 SS wedge wire screen pipe for solid-liquid separation

Specifications of 304 SS wedge wire screen pipe for solid-liquid separation:

 304 SS wedge wire screen pipe for solid-liquid separation

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

from 25mm to 1200mm.

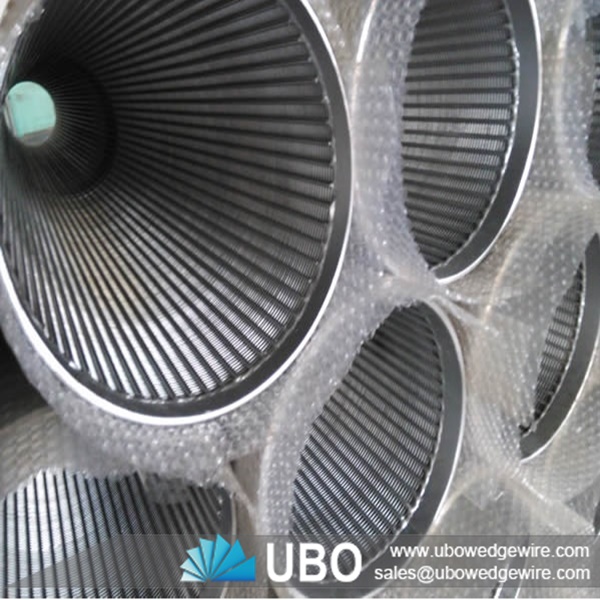

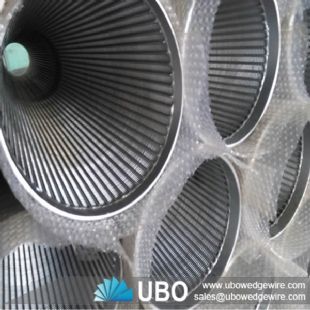

Packaging and Transportation of 304 SS wedge wire screen pipe for solid-liquid separation:

packing
