wedge wire water well screens suppliers

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire water well screens suppliers

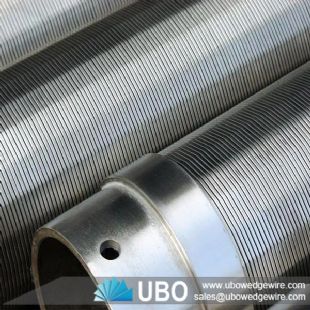

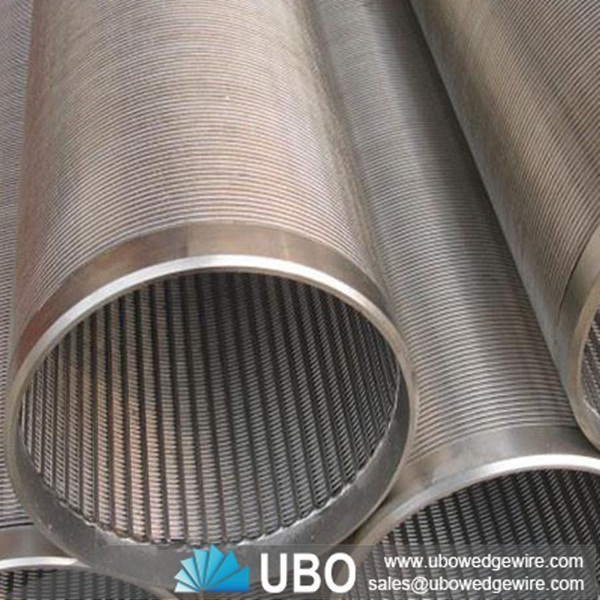

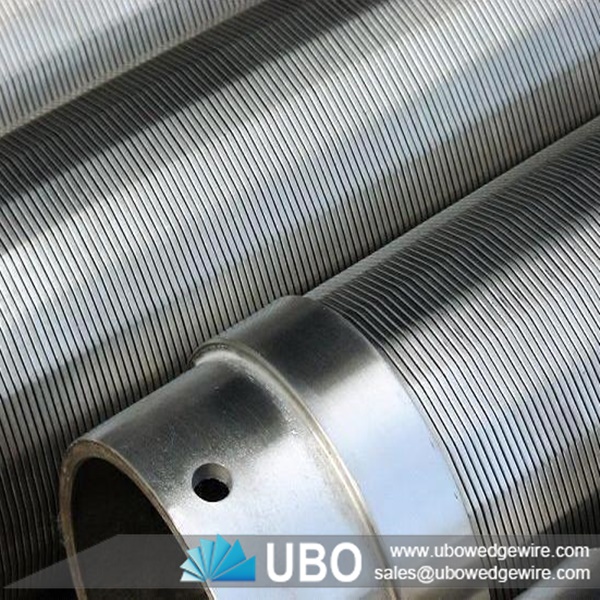

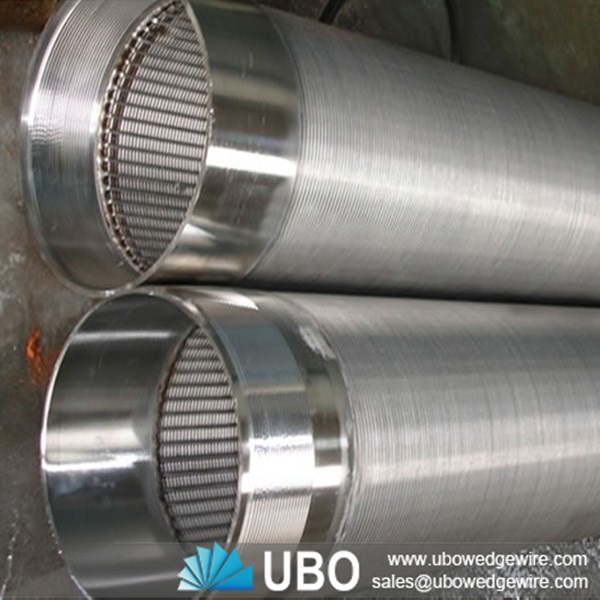

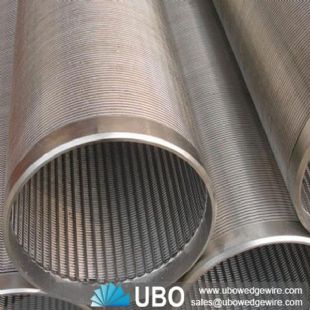

Wedge wire water well screens suppliers are welded by profile V-wire and support wires,it is also called Johnson screen. It has large filter area because of big opening,vee wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will be reduced when water flows in for greater filter area,avoid the grains of sand flow in the wedge wire water well screens in the high pressure conditions,so extend the pipe's life . Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes. Moreover, we have inside perforated metal and wedge wire tube outside filter.

wedge wire water well screens suppliers

Customized design of wedge wire water well screens suppliers

The design is customized to your demands;
Slot opening from 50 micron up to 2000 micron
All API and ANSI pipe sizes are available
Customized construction:
Lower V-wires for reduced OD
Higher support rods for more standoff
Customized material grades 304/316L/904/Duplex/Alloy 825/625/C276 etc.
Customized end-fittings and threaded connections
Fixation of screen by welding or shrink fitting of end-rings to the base-pipe

Characteristics of wedge wire water well screens suppliers

1.They consist of V-shape or wedge shape profile wire and the longitudinal support rods.
2.The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.
3.Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

Application of wedge wire water well screens suppliers

Can be used with deep well,submersible pumps,and can also be used as water treatment equipment for environmental protection, desalination of seawater into the treatment of industrial water and domestic water, water treatment, water softening treatment, the petroleum industry: oil filtration and recycling end-product of chemical organic solution of acid, alkali liquid filtration, alcohol and other filtering. Can also be used for hydro-geological exploration, drilling, drilling, construction, reservoirs precipitation, foundation digging precipitation, geothermal development and utilization of mineral exploitation, geothermal air conditioning, repair broken wells,underground water sources.

wedge wire water well screens suppliers

Specifications of wedge wire water well screens suppliers:

wedge wire water well screens suppliers

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
