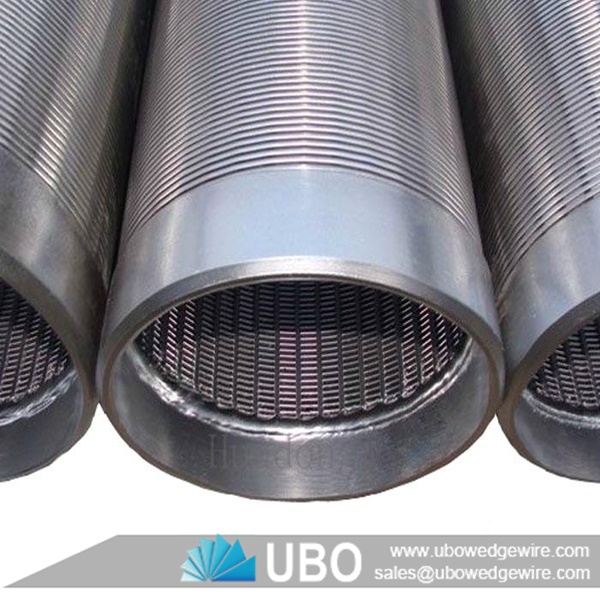

wedge wire screen water well screen with plain end

More Views

wedge wire screen water well screen with plain endwedge wire screen water well screen with plain endwedge wire screen water well screen with plain end

wedge wire screen water well screen with plain end

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen water well screen with plain end

Wedge wire screen water well screen with plain ends are welded by profile V-wire and support wires,it is also called Johnson screen. It has large filter area because of big opening,vee wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will be reduced when water flows in for greater filter area,avoid the grains of sand flow in the Wedge wire screen water well screen in the high pressure conditions,so extend the pipe's life . Between the same length,diameter and slot size,Wedge wire screen water well screen is thrice than bridge filter pipes. Moreover, we have inside perforated metal and wedge wire tube outside filter.

wedge wire screen water well screen with plain end

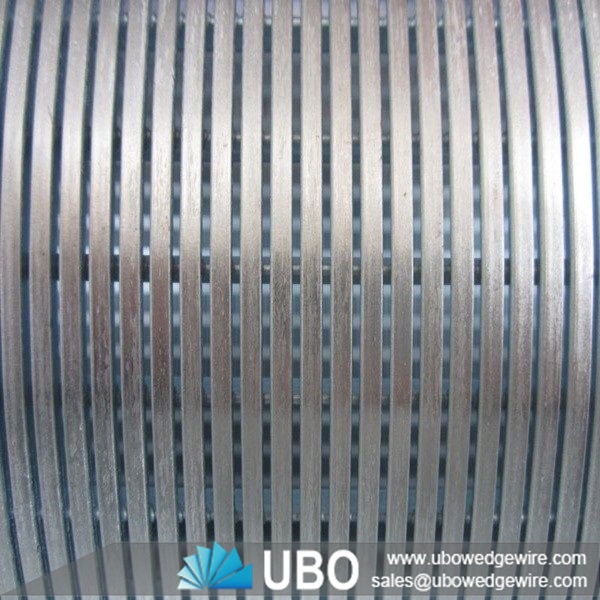

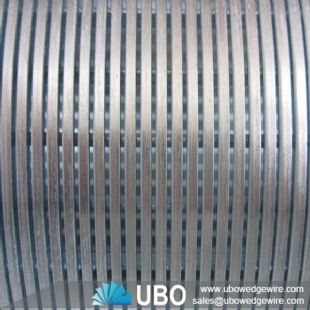

Construction of wedge wire screen water well screen with plain end

1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the strainer have bigger filter area and non obstructive, avoid the high concentration of impurities.
3.After work for a period of time, the strainer can be back flush.It can use for many times.

Feature of wedge wire screen water well screen with plain end

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

Application of wedge wire screen water well screen with plain end

Can be used with deep well,submersible pumps,and can also be used as water treatment equipment for environmental protection, desalination of seawater into the treatment of industrial water and domestic water, water treatment, water softening treatment, the petroleum industry: oil filtration and recycling end-product of chemical organic solution of acid, alkali liquid filtration, alcohol and other filtering. Can also be used for hydro-geological exploration, drilling, drilling, construction, reservoirs precipitation, foundation digging precipitation, geothermal development and utilization of mineral exploitation, geothermal air conditioning, repair broken wells,underground water sources.

wedge wire screen water well screen with plain end

Specifications of wedge wire screen water well screen with plain end:

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

wedge wire screen water well screen with plain end

Packaging and Transportation of wedge wire screen water well screen with plain end:

transportation
