Wrapped Wedge Wire Trommel Screen Cylinder Filter

More Views

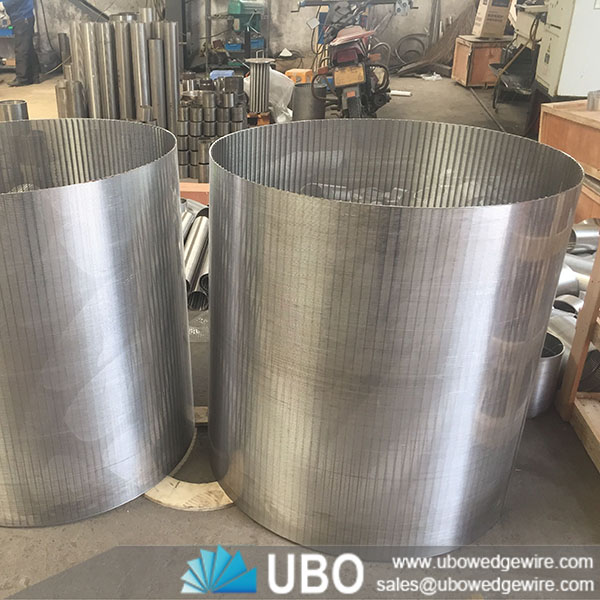

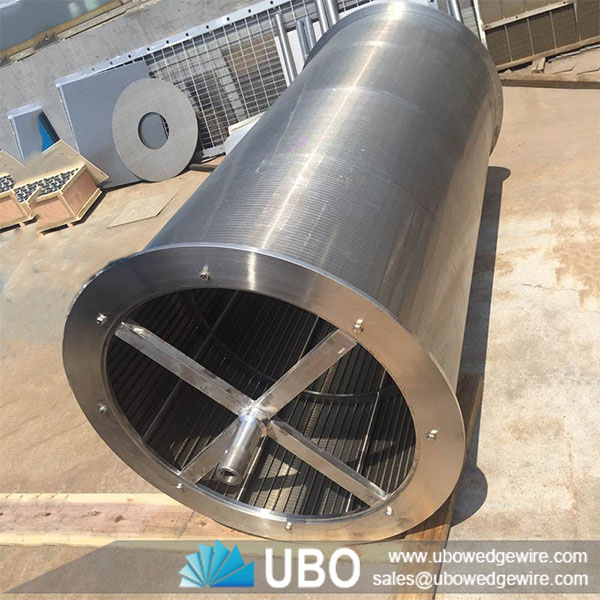

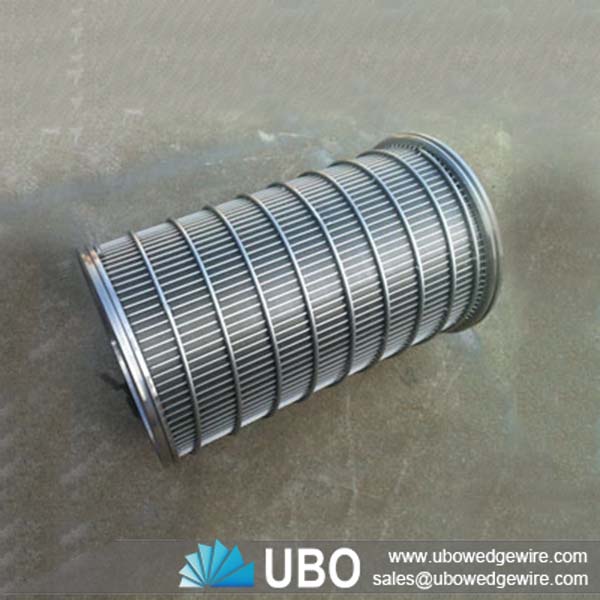

Wrapped Wedge Wire Trommel Screen Cylinder FilterWrapped Wedge Wire Trommel Screen Cylinder FilterWrapped Wedge Wire Trommel Screen Cylinder Filter

Wrapped Wedge Wire Trommel Screen Cylinder Filter

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen cylinder
Application:water-treatment ,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wrapped Wedge Wire Trommel Screen Cylinder Filter

Wrapped Wedge Wire trommel screen cylinder filter consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.

Wedge Wire wedge wrapped Wedge Wire trommel screen cylinder filter

Features of Wrapped Wedge Wire Trommel Screen Cylinder Filter

The SS 304 316 Wedge Wire wedge wire filter screen pipe cylinder is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Application of  Wrapped Wedge Wire Trommel Screen Cylinder Filter

Be suitable for all kinds pressure screen in pulp making system and paper making system.

Wedge Wire wedge wrapped Wedge Wire trommel screen cylinder filter

Wedge Wire wedge wrapped Wedge Wire trommel screen cylinder filter

Specifications of Wrapped Wedge Wire Trommel Screen Cylinder Filter:

Wedge Wire wedge wrapped Wedge Wire trommel screen cylinder filter

Wrapped Wedge Wire trommel screen cylinder filter

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Flange:according to your request

Packaging and Transportation of Wrapped Wedge Wire Trommel Screen Cylinder Filter:

Package: in wood case

Delivery Time: 5-25 days
