Wire Wrapped Screen for Drilling Well

More Views

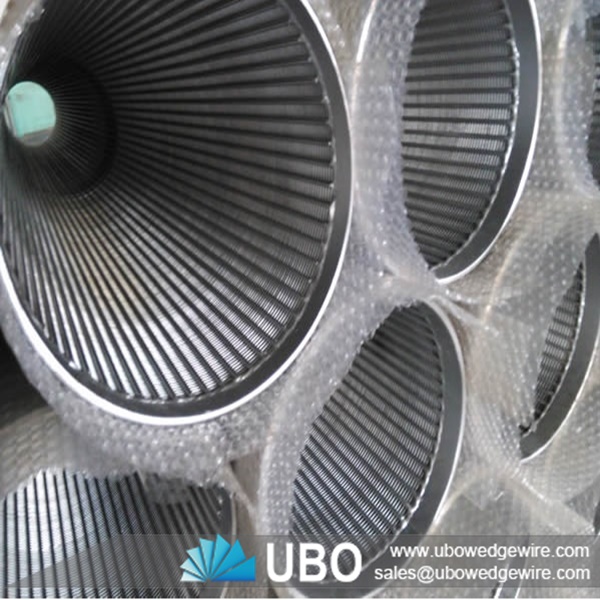

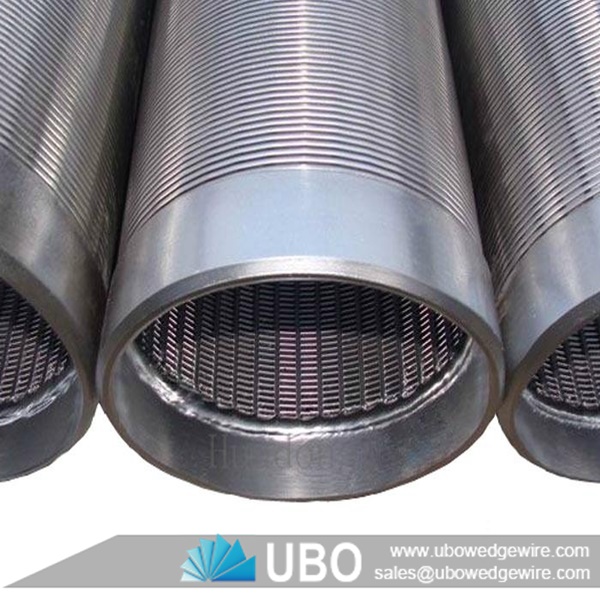

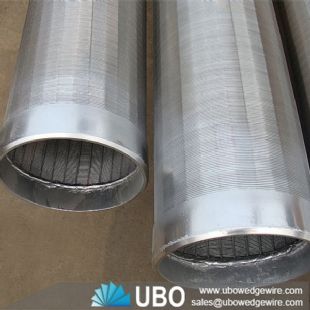

Wire Wrapped Screen for Drilling WellWire Wrapped Screen for Drilling WellWire Wrapped Screen for Drilling Well

Wire Wrapped Screen for Drilling Well

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wire Wrapped Screen for Drilling Well

Wire Wrapped Screen Pipes are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process . This spacing gives passage for water to enter .The entire process is completed on fully computerizes machines . The pitch of winding gives different spacing between two adjacent turns of wire.

Features of Wire Wrapped Screen Pipe for Drilling Well

Wire wrapped screen have the features of great strength , precision , long service life and a wide range of applications in the field of process and engineering such as waste water treatment , sugar juice filtration , crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation , filtration of oils , greases , water , fuels , paints , food products , liquid cooling agents , and chemicals etc.

Applications of Wire Wrapped Screen Pipe for Drilling Well

Wire Wrapped Screen Pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chem ical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.

Wire wrapped screen for drilling well

Specifications of Wire Wrapped Screen for Drilling Well:

Wire wrapped screen for drilling well


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wire Wrapped Screen for Drilling Well:

Package:in wood case.

Delivery Time: 5-25 days.
