Wedge Wire wedge V shap wire slot screen pipe stainless steel 304
| Category: | Wedge Wire Pipe&Cylinder |
|---|---|
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen pipe |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire wedge V shap wire slot screen pipe stainless steel 304

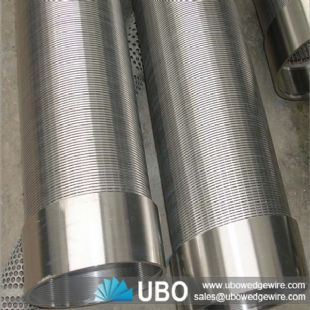

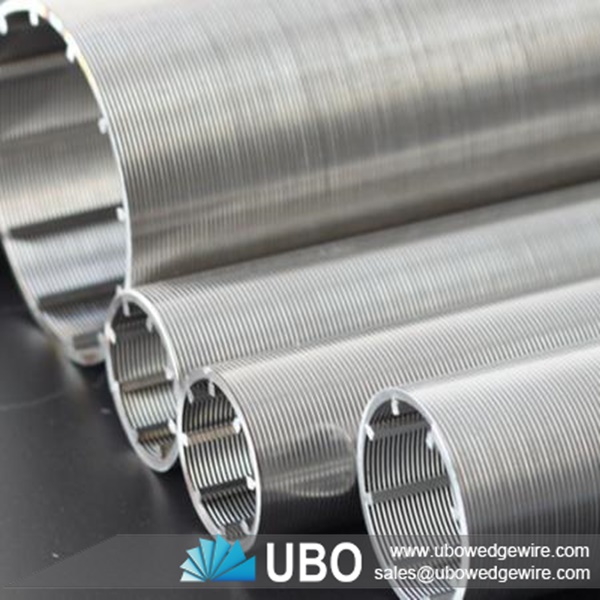

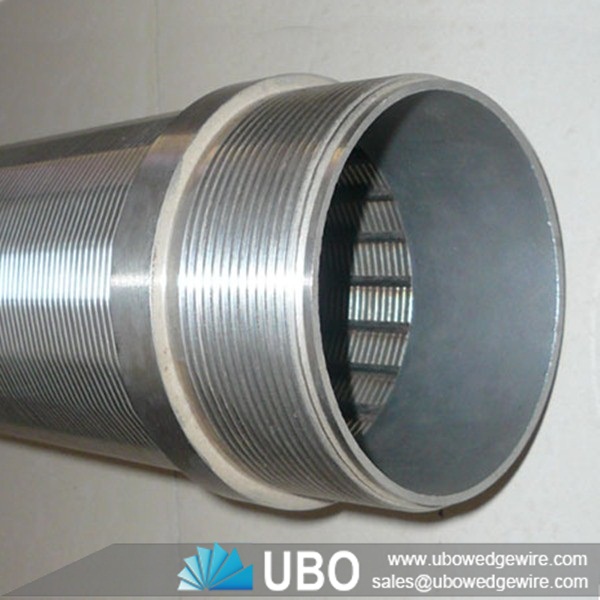

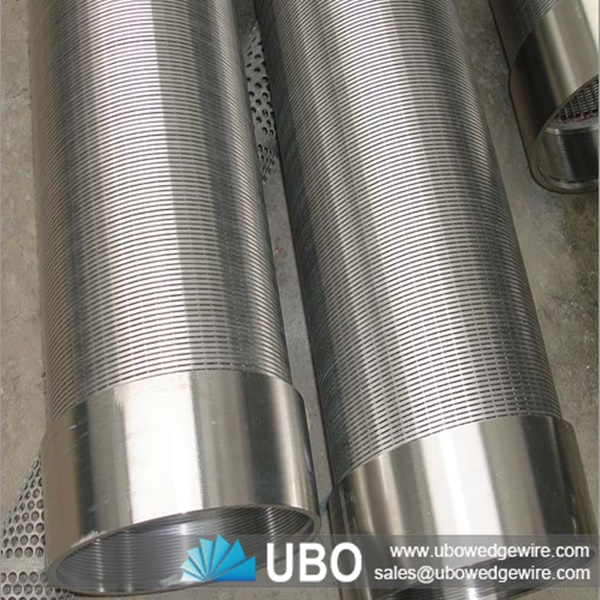

Wedge Wire wedge V shaped wire slot screen pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.
Features of Wedge Wire wedge V shaped wire slot screen pipe stainless steel 304
The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Applications of Wedge Wire wedge V shaped wire slot screen pipe stainless steel 304
deep well, water well, geothermal well, tube well, oil and gas exploration well, irrigation well, resident and industrial using well.
Specifications of Wedge Wire wedge V shap wire slot screen pipe stainless steel 304:
|
wedge wire |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
|
support rod |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 |
|
Note: other specifications available as per request |
|
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length |
up to 6 meters |
|
Diameter |
from 25mm to 1200mm. |
Packaging and Transportation of Wedge Wire wedge V shap wire slot screen pipe stainless steel 304:
Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearlymarked with:
Name & identification mark of manufacturer
Batch number
Date of manufacture
Material
Safe heating & application temperature
