Wedge Wire Water Well Screen with Plain End

More Views

Wedge Wire Water Well Screen with Plain EndWedge Wire Water Well Screen with Plain EndWedge Wire Water Well Screen with Plain End

Wedge Wire Water Well Screen with Plain End

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

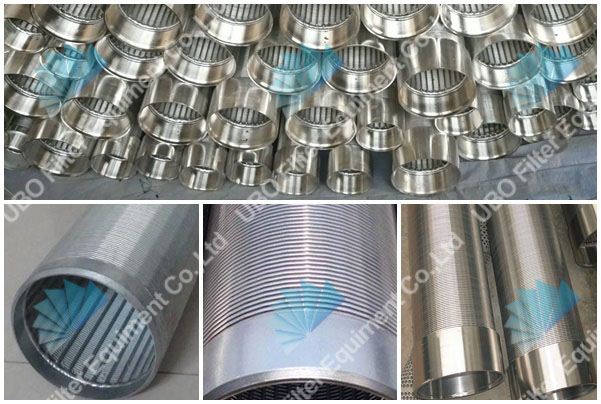

Details of Wedge Wire Water Well Screen with Plain End

wedge wire water well screens are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). wedge wire water well screen have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

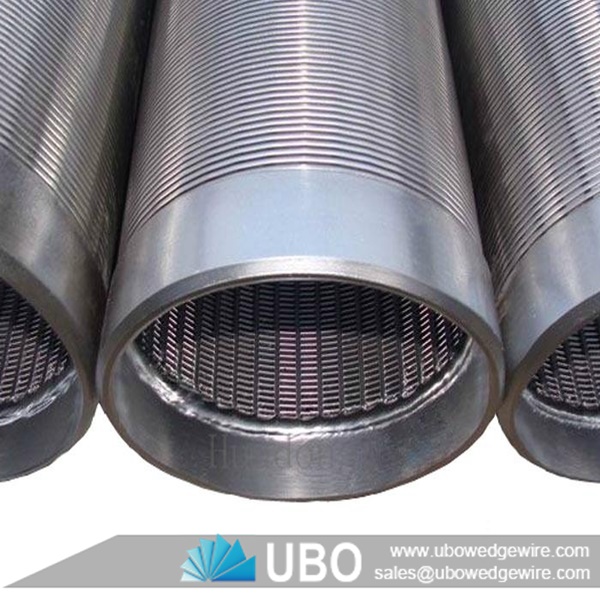

wedge wire water well screen with plain end

Features of Wedge Wire Water Well Screen with Plain End

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Advantages of Wedge Wire Water Well Screen with Plain End

1) Key-stone shaped slot pattern, low risk to plugging, easy to clean;

2) Optimized design for perforation, all welded structure, high mechanical strength which is competitive with casing of the same size;

3) Minimum slot opening: 0.1mm, which can satisfy the most of well-completion requirements;

4) High flow area;

5) The technical is mature, good adaptability.

Applications of Wedge Wire Water Well Screen with Plain End

Wedge wire water well screens are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.

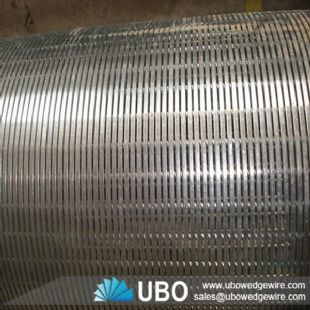

wedge wire water well screen with plain end

Specifications of Wedge Wire Water Well Screen with Plain End:

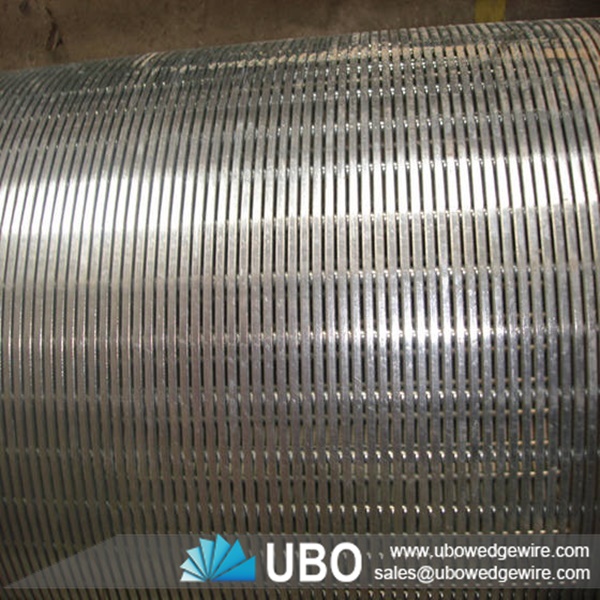

wedge wire water well screen with plain end

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings



Packaging and Transportation of Wedge Wire Water Well Screen with Plain End:

transportation
