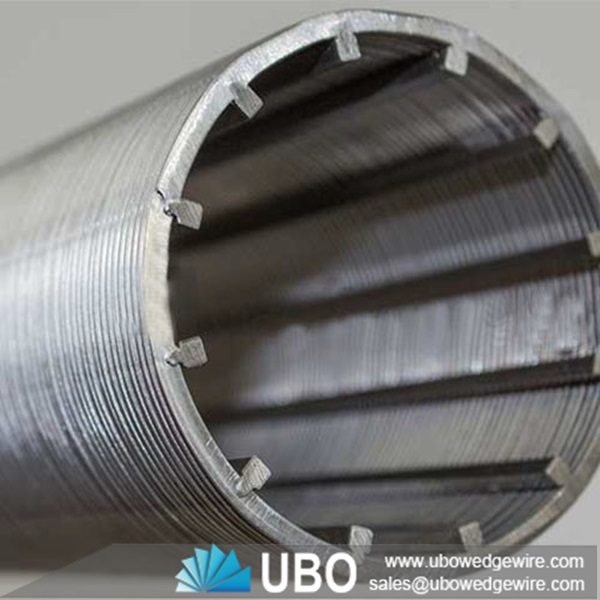

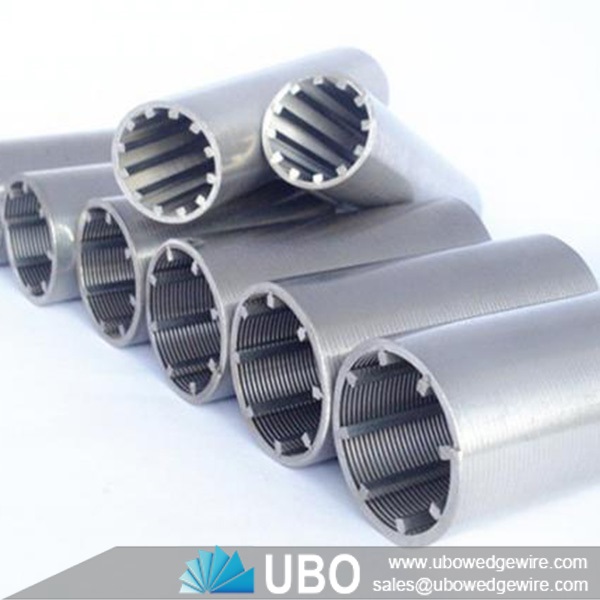

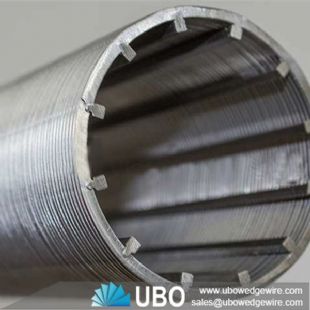

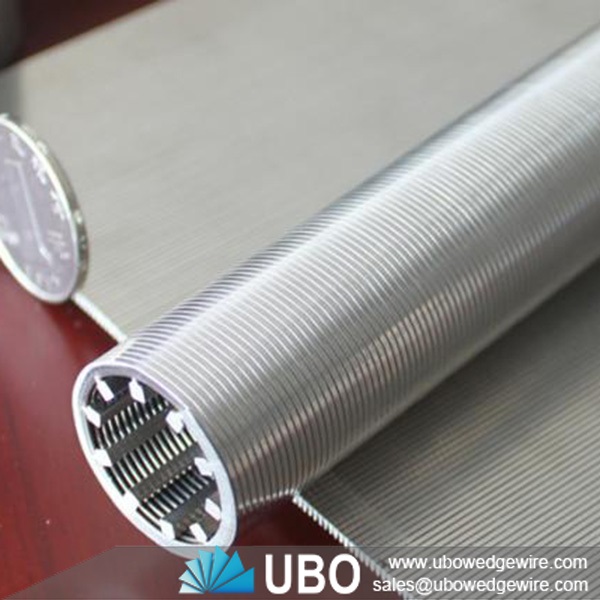

Water Well Screen Stainless Steel Wedge Wire Screen Tube

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water Well Screen Stainless Steel Wedge Wire Screen Tube

The water well screen stainless steel wedge wire screen tube is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.The warp is triangular wire (V-shaped wire). V-wirewedge wire screen pipes have a robust structure and large open area, as well as accurate slot dimension.


At the same time, water well screen stainless steel wedge wire screen tube have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

 Water Well Screen Stainless Steel Wedge Wire Wedge Wire Screen Tube

Features of Water Well Screen Stainless Steel Wedge Wire Screen Tube


1.Screens with large open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation
Screens with large open area shall favor groundwater filtration. Abundant water will reduce the water level’s down, thus to save energy consumption.
3.Under the same condition, large open area can make the speed of groundwater’s enter into the screen much slower than any other filtration apparatus,
which will avoid sand entering into screen because of high pressure, which reduce the abrasion of the pump.
4. Extending the service life of wells
Comparatively, groundwater’s entering into screen with larger open area is much easier than that entering into smaller open area screen.
The slow water flow will extend the service life of the wells.

Advantage of Water Well Screen Stainless Steel Wedge Wire Screen Tube

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Application of Water Well Screen Stainless Steel Wedge Wire Screen Tube

It is widely used in petrochemical, refining, water supply system, dirt water treament, hydraulic system, coal mining, and architecture industry.

With stainelss steel material and special welded structure, it can be easy cleaning by mechanical scraping or back flushing, that's why it is so popular among these industries.

Water Well Screen Stainless Steel Wedge Wire Wedge Wire Screen Tube

Specifications of Water Well Screen Stainless Steel Wedge Wire Screen Tube:

Water Well Screen Stainless Steel Wedge Wire Wedge Wire Screen Tube

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

Packaging and Transportation of Water Well Screen Stainless Steel Wedge Wire Screen Tube:

Package: in wood case

Delivery Time: 5-25 days
