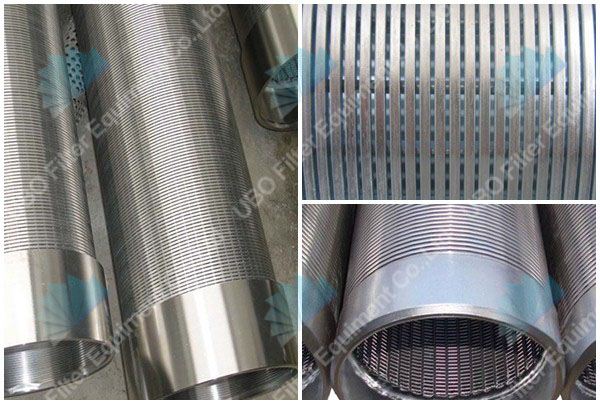

SS wedge wire screen water pick up pipe

More Views

SS wedge wire screen water pick up pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire screen water pick up pipe

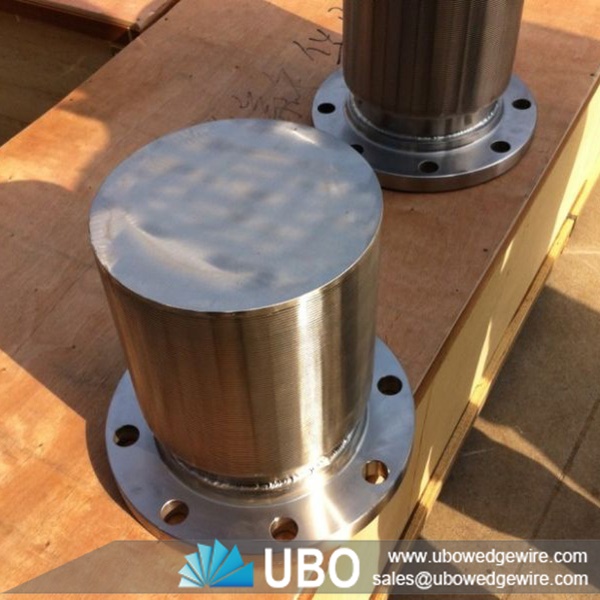

SS wedge wire screen water pick up pipe is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

SS wedge wire screen water pick up pipe

Features of SS wedge wire screen water pick up pipe

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

Application of SS wedge wire screen water pick up pipe

Resin Trap Screen Predominantly used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

SS wedge wire screen water pick up pipe

Specifications of SS wedge wire screen water pick up pipe:

SS wedge wire screen water pick up pipe

Type Slots mm ΦA ΦB L1mm L2mm
AM 0.05, 0.1,   0.2,   0.3,   0.5,    1.0 G2" Φ50 30,55 73, 126, 180, 231, 284, 338, 389
G1 1/2" Φ38 30,55
G2" 1 1/4"NPT 30
G2" 1 1/2"NPT 30
Φ68 G2" 30
1 1/2"NPT 1 1/4"NPT 30
2 1/2" Φ60 20
