Wedge wire water screening dsm screen

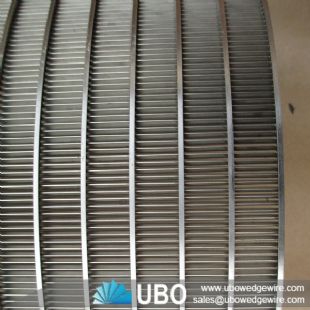

More Views

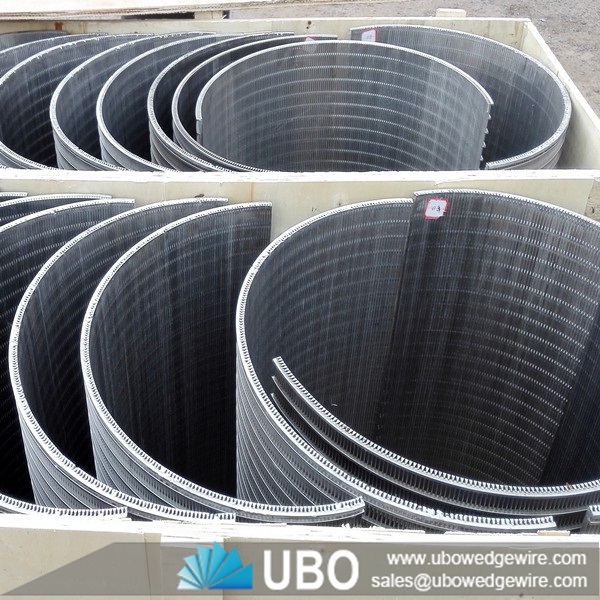

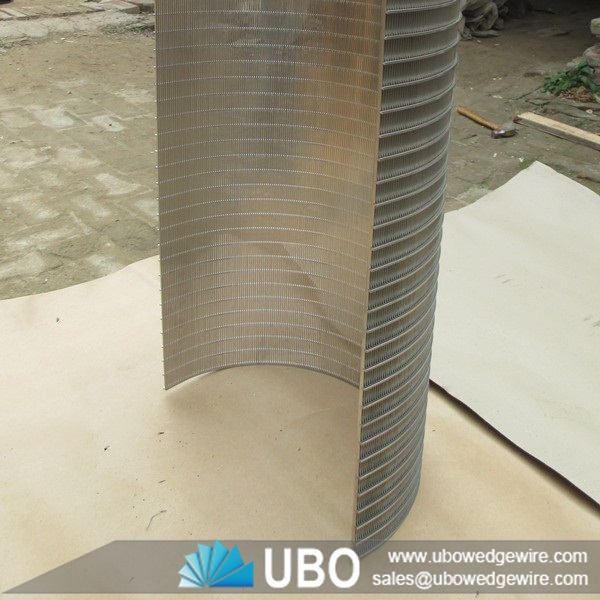

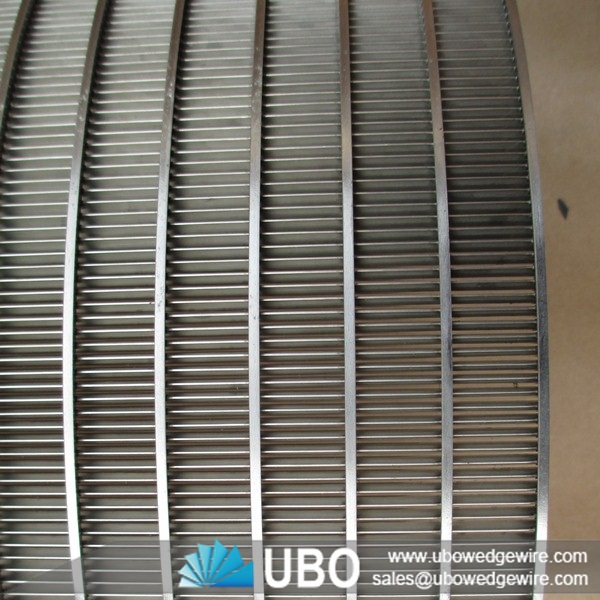

Wedge wire water screening dsm screenWedge wire water screening dsm screenWedge wire water screening dsm screen

Wedge wire water screening dsm screen

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire water screening dsm screen

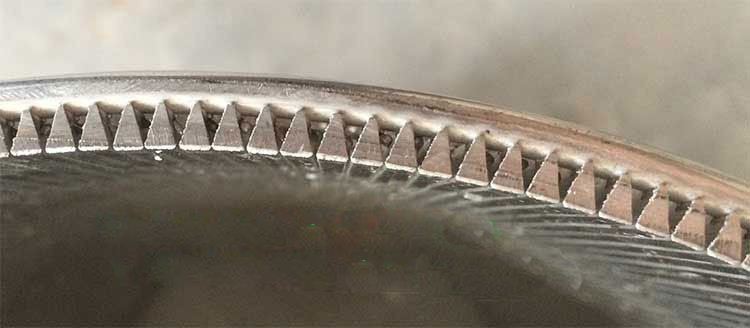

Wedge wire water screening dsm screen is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening

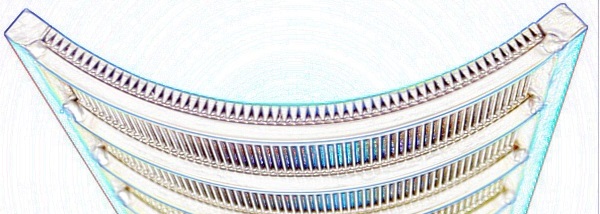

Wedge wire water screening dsm screen

Features of Wedge wire water screening dsm screen

1.The gravity sieve has high yield and good screening effect
2.The gravity bent sieve is very safety,no caulking and long service life.
3.The gravity curved sieve has reasonable structure and no moving parts.
4.The gravity sieve has beautiful appearance and small area
5.The gravity sieve has easy operation,strong adaptability and stable process.
6.The mechanical center of gravity is low, the balance is good, the rotational speed is reasonable, the mechanical performance is stable and reliable.

Uses of Wedge wire water screening dsm screen

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Wedge wire water screening dsm screen

Specifications of Wedge wire water screening dsm screen:

Wedge wire water screening dsm screen



Outside Diameter
Profile
wire
Rod
wire
Rod
quantity
Slot
size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25
45~3000
25
1
33.7
1.5*2
2*3
14
0.1~0.25
45~3000
32
1~1/4
42.4
1.5*2
2*3
16
0.1~0.25
45~3000
40
1~1/2
48.3
1.5*2
2*3
16
0.1~0.25
45~3000
50
2
60.3
1.5*2
2*3
18
0.1~0.5
45~3000
65
2~2/2
76.1
1.5*2
2*3
20
0.1~0.5
45~3000
80
3
88.9
1.8*2.5
2*3
24
0.1~0.5
45~3000
100
4
114.3
1.8*2.5
2*3
30
0.5~2
1000~6000
125
5
139.7
2.3*2.7
2*3
36
0.5~2
1000~6000
150
6
168.3
2.3*2.7
3*5
44
0.5~2
1000~6000
200
8
219.1
3.3*4.5
3*4.7
56
0.5~2
1000~6000
250
10
273
3.3*4.5
4*6
66
0.5~2
1000~6000
300
12
323.9
3.3*4.7
4*6
72
0.5~2
1000~6000
350
14
355.6
3.7*5
4*6
80
0.5~2
1000~6000
400
16
406.4
1.5*2
2*3
94
0.1~2
1000~6000
450
18
457
2*3
4*5
112
0.1~2
500~400
500
20
508
2*3
4*5
124
0.1~2
500~400
550
22
559
2*3
4*5
140
0.1~2
500~400
600
24
610
2*3
4*5
156
0.1~2
500~400
Siot:0.1mm~2mm    Tolerance:0.05
