Quality Wedge Wire Screen Manufacturer in China

Wedge Wire Screen for Hydro Sieve

More Views

Wedge Wire Screen for Hydro SieveWedge Wire Screen for Hydro SieveWedge Wire Screen for Hydro Sieve

Wedge Wire Screen for Hydro Sieve

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen for Hydro Sieve

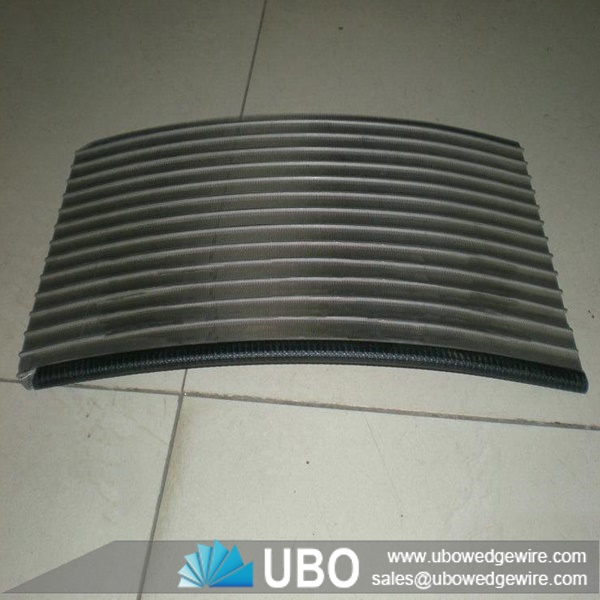

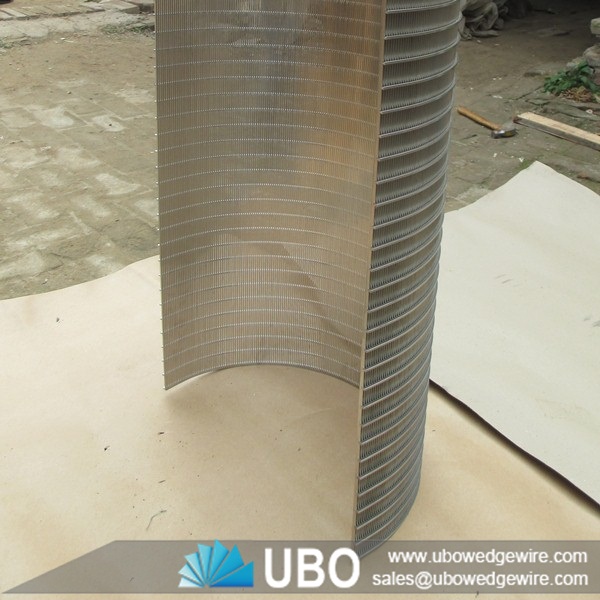

Wedge wire screen for hydro sieve is also known as side hill screen, parabolic screen, run down screen, gravity screen or DSM screen. It can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.

Wedge wire screen for hydro sieve consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

wedge wire screen for hydro sieve

Applications of Wedge Wire Screen for Hydro Sieve

V- Wire Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Advantages of Wedge Wire Screen for Hydro Sieve

A continuous slot opening which significantly increases the available o-pen area, thus providing a greater access to the water bearing zone.

A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.

A uniform and efficient well development due to the continuous slot opening.

Offering great strength. precision, long service life.

wedge wire screen for hydro sieve

Specifications of Wedge Wire Screen for Hydro Sieve:

wedge wire screen for hydro sieve

Surface Profile

W
H

Material

10S

0.75
1.425

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

11SL

10.75
1.8

22S

1.8
3.7

4S

0.45
1.2

50SL

3.4
7.5



Surface Profile
W
H
Material
Q22
2
2.28

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

Q35
3
5
Q53
4
3
D56
4
5.6
D45
3.8
6.0

Packaging and Transportation of Wedge Wire Screen for Hydro Sieve:
