Stainless steel curved surface wedge wire screen filter factory
Category: | Sieve Bend Screen |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | sieve bend screen |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless steel curved surface wedge wire screen filter factory

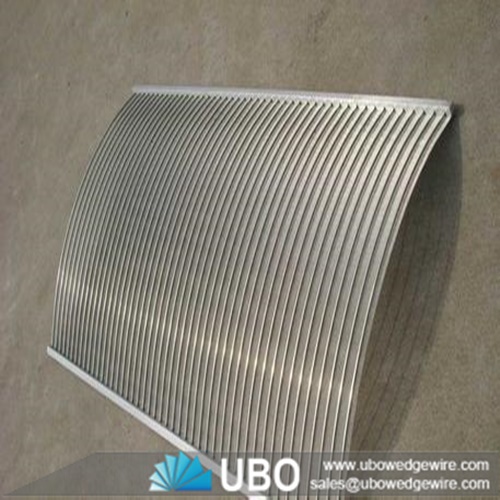

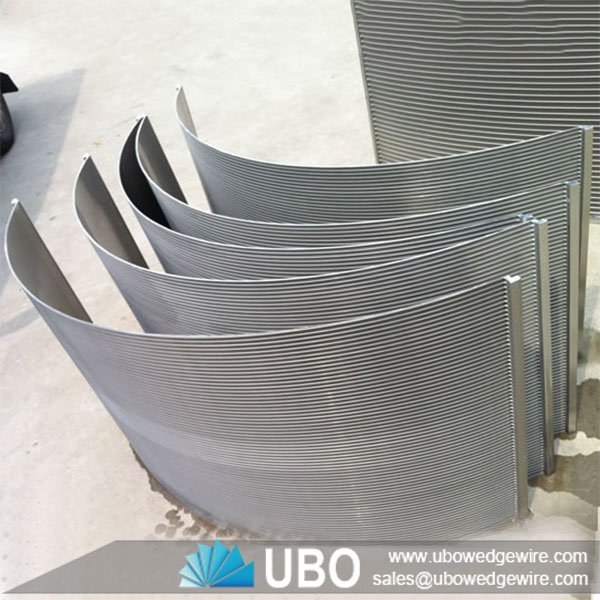

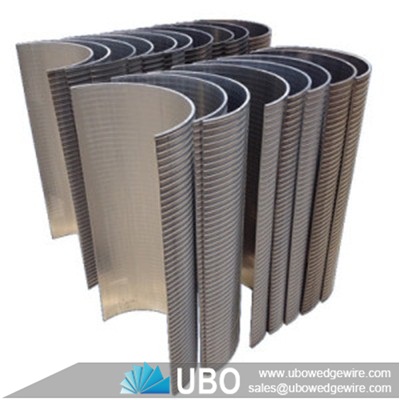

Stainless steel curved surface wedge wire screen filter also known as side hill screens, parabolic screens,rundown screens, gravityscreens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes,corn wet milling, coal preparation, and gold recovery. Stainless steel curved surface wedge wire screen filter factory are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity. A Stainless steel curved surface wedge wire screen filter consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A Stainless steel curved surface wedge wire screen filter has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.
Application of Stainless steel curved surface wedge wire screen filter
They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.
Feature of Stainless steel curved surface wedge wire screen filter
Stainless steel curved surface wedge wire screen filter is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.
Specifications of Stainless steel curved surface wedge wire screen filter factory:
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
Length Range |
Up to 6000mm |
||||||
Width Range |
Up to 6000mm |
||||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5x2.5 |
2x3 |
2x4 |
3x5 |
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5*2.5
2x3 |
2x3 |
3*5 |
3x5 |
3x5
4*6
5*8 |
Angle |
90°,120°,140°,150°,160° etc. |
||||||
Arc height |
10mm,15mm,20mm,50mm or depend on you size of screen panel. |
||||||
Frame |
No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. |
||||||
Note |
Customized according to requirement |
