Stainless Steel Wedge Wire Parabolic Screen

More Views

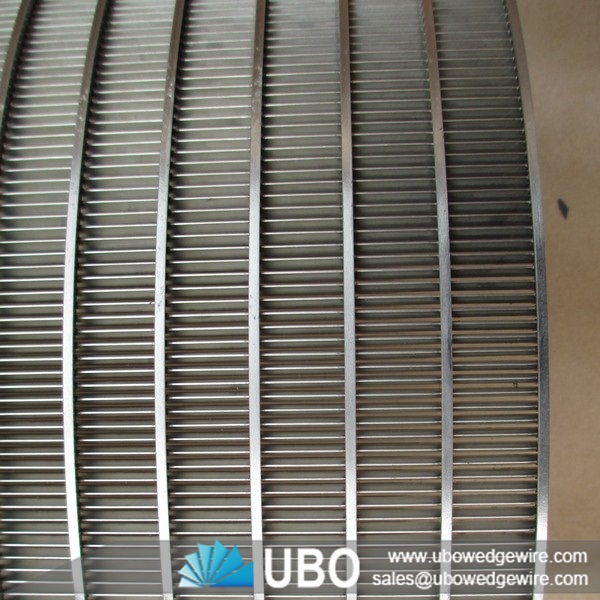

Stainless Steel Wedge Wire Parabolic ScreenStainless Steel Wedge Wire Parabolic ScreenStainless Steel Wedge Wire Parabolic Screen

Stainless Steel Wedge Wire Parabolic Screen

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Parabolic Screen

Stainless steel wedge wire parabolic screenl also known as side hill screens, parabolic screens,rundown screens, gravityscreens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes,corn wet milling, coal preparation, and gold recovery.stainless steel wedge wire parabolic screens are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

Stainless steel wedge wire parabolic screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. stainless steel wedge wire parabolic screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

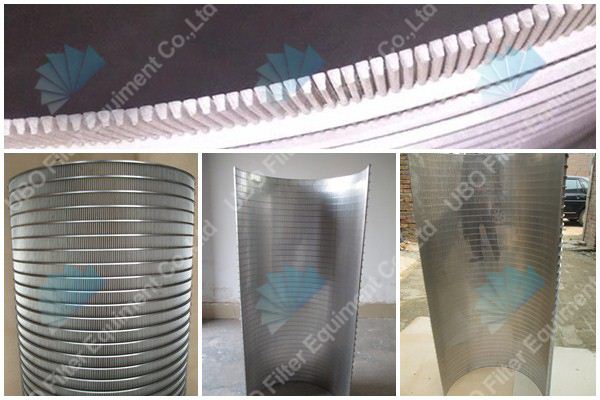

stainless steel wedge wire parabolic screen

Features of Stainless Steel Wedge Wire Parabolic Screen

1) Accurate filtering performance.

2) High efficiency.

3) Narrow slot openings.

4) Normal or high grade type for choice.

5) Various edge types.

6) Wide range of diameters for choice.

7) Special sizes can be customized.

8) Economical but high grade.

9) Corrosion resistance.

10) Rust resistance.

11) Long service life and durable.

Features of Stainless Steel Wedge Wire Parabolic Screen

-- High mechanical strength

-- High wear resistance

-- High impact resistance

-- Larger open area

-- Self-supporting structure

-- Non-plugging slot design

-- Lower operation and maintenance cost

Usages of Stainless Steel Wedge Wire Parabolic Screen

1) Widely used in vairous kinds of medium filtering

2) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;

3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;

4) The organic solution recycling filter

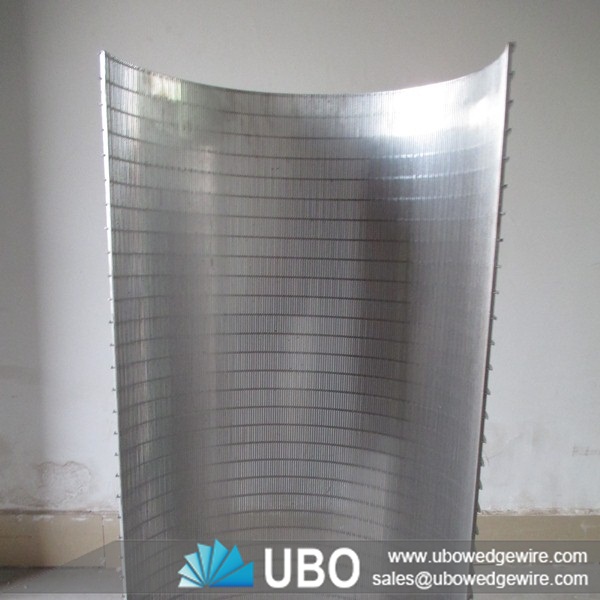

stainless steel wedge wire parabolic screen

Specifications of Stainless Steel Wedge Wire Parabolic Screen:

Stainless Steel Wedge Wire Parabolic Screen

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot Size

Slot size

Radian:

15º,30º,45º as your request

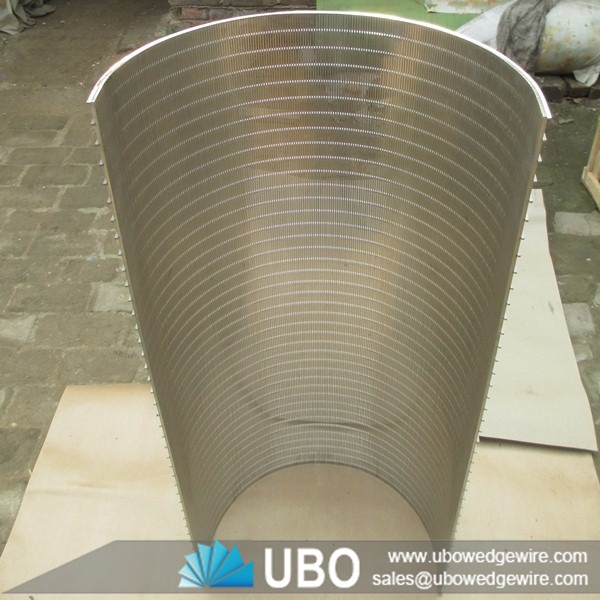

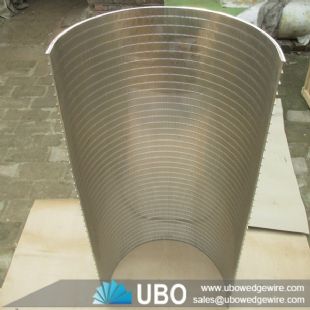

stainless steel wedge wire parabolic screen



Packaging and Transportation of Stainless Steel Wedge Wire Parabolic Screen:

Package: in wood case

Delivery Time: 5-15 days.
