SS wedge wire side hill screen panel

More Views

SS wedge wire side hill screen panelSS wedge wire side hill screen panelSS wedge wire side hill screen panel

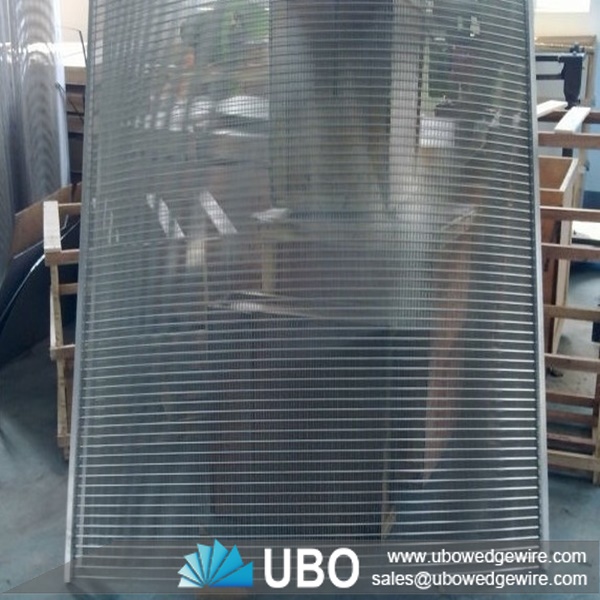

SS wedge wire side hill screen panel

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire side hill screen panel

SS wedge wire side hill screen panel consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. Wedge wire screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

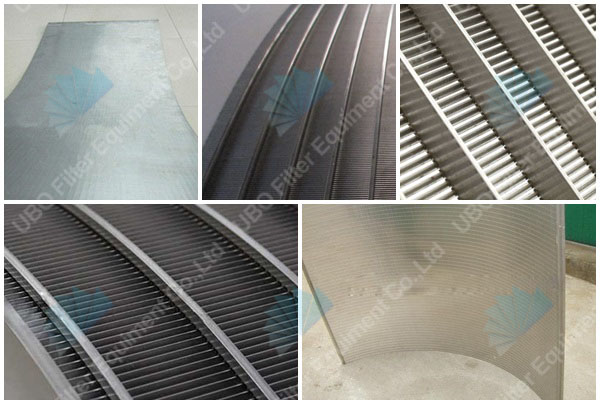

SS wedge wire side hill screen panel

Advantages of SS wedge wire side hill screen panel

Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Flexible Design - we can supply units with any features you may require.

Features of SS wedge wire side hill screen panel

Excellent wire geometry
Cutting edge sharp
Not only to ensure maximum efficiency, but also to maximize the sieve to avoid clogging.
Due to its good wear resistance and unique processing technology, curved screen sieve can reduce production costs and improve work efficiency.

Application of SS wedge wire side hill screen panel

SS wedge wire sie hill screens panels are widely used as mining sieves, coal sieves and other devices.

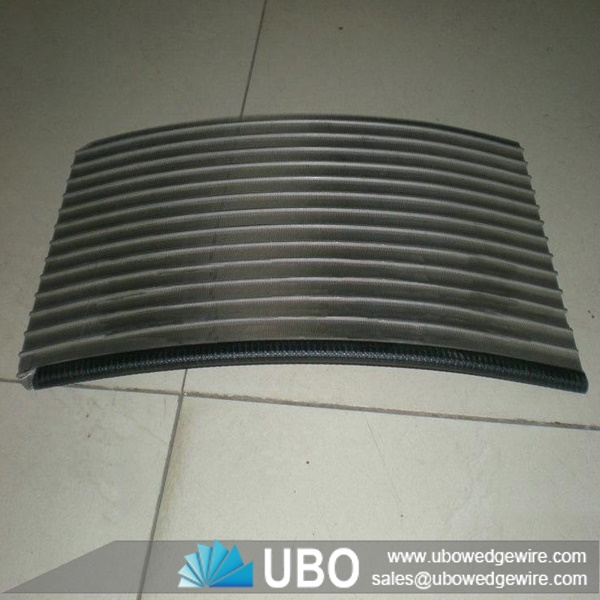

SS wedge wire side hill screen panel

Specifications of SS wedge wire side hill screen panel:

Slot:0.02-8.10mm
Width:19-1200mm
Length:20-6000mm
Tolerance clearance:±0.1mm curing 120°
Material: 304,304L,316,316L,904L,2205,2507,hastelloy-c276,etc.
Mesh selection: wedge wire mesh
Treatment: Pickling

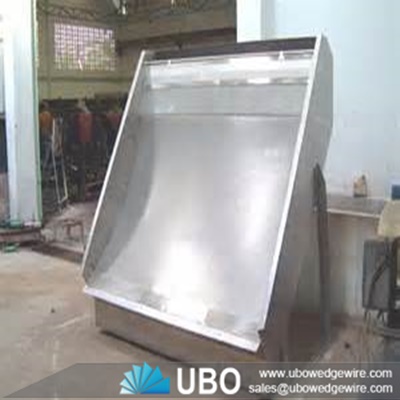

SS wedge wire side hill screen panel
