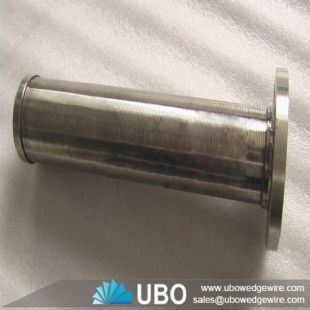

wedge wire water well screen strainer resin trap

More Views

wedge wire water well screen strainer resin trapwedge wire water well screen strainer resin trapwedge wire water well screen strainer resin trap

wedge wire water well screen strainer resin trap

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire water well screen strainer resin trap

UBO wedge wire screen strainer resin trap filter provide a high percentage of open area thus minimizing pressure loss through the system. Your resin trap can be designed to suit either new or existing strainer bodies.

Application for wedge wire water well screen strainer resin trap:

wedge wire screen resin traps connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Feature for wedge wire water well screen strainer resin trap:

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

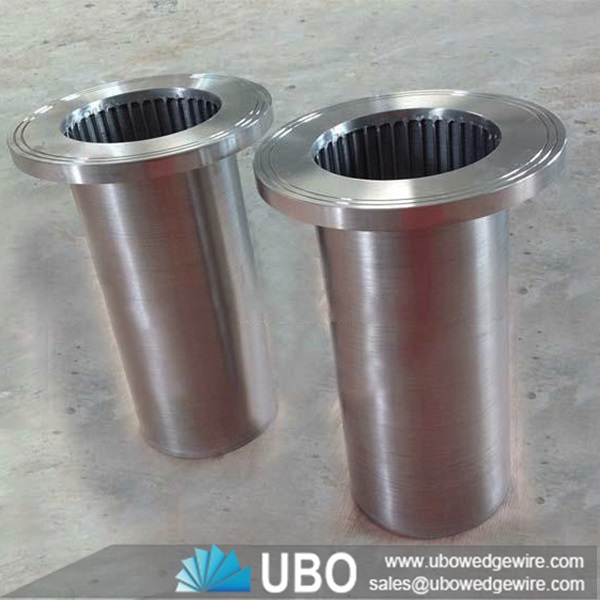

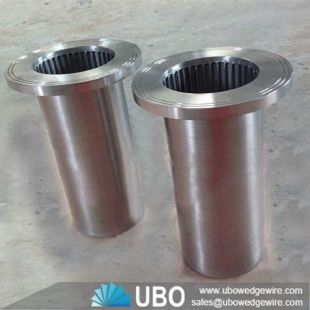

wedge wire water well screen strainer resin trap

Specifications of wedge wire water well screen strainer resin trap:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of wedge wire water well screen strainer resin trap:

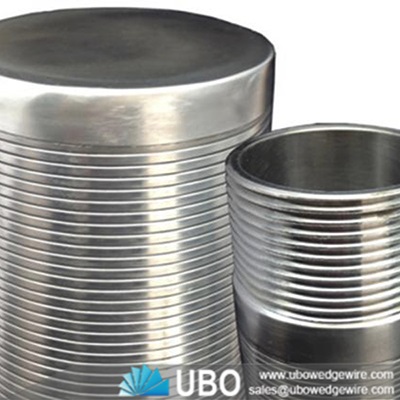

wedge wire water well screen strainer resin trap
