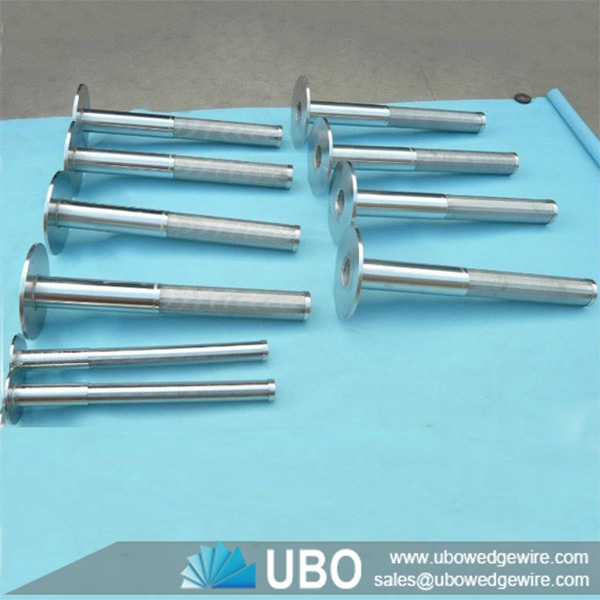

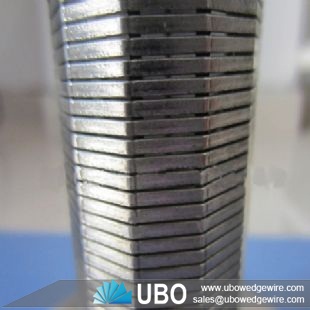

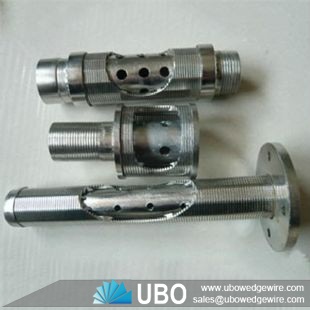

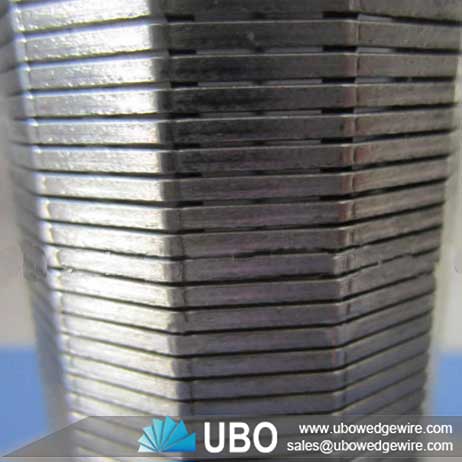

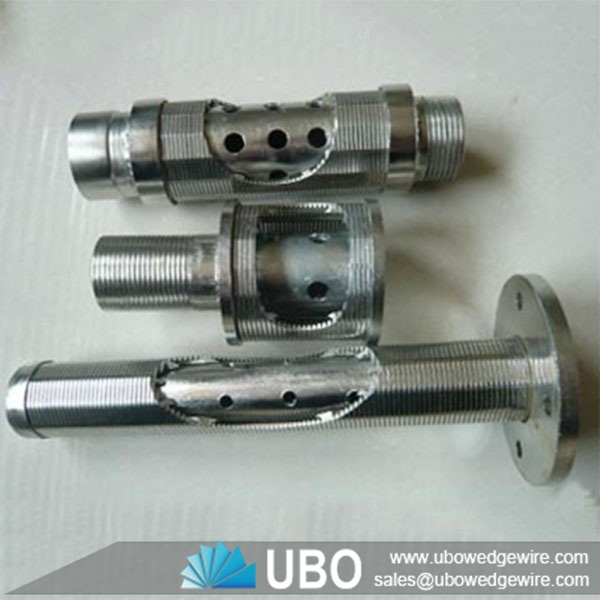

wedge wire screen for Resin Traps

More Views

wedge wire screen for Resin Trapswedge wire screen for Resin Trapswedge wire screen for Resin Traps

wedge wire screen for Resin Traps

Category:Resin Traps
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen for Resin Traps

    Resin traps are safety devices used on the outlet pipelines of ion exchange units, high-purity water systems and activated carbon and media filters. In many systems a valve failure can allow media to escape from the treatment vessel. Not only is the loss of this media expensive, it can easily cause damages to downstream pumping equipments. Placed inline, resin traps provide reliable protection against such damage.

Application for wedge wire screen for Resin Traps:

Resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly.  All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Characteristics for wedge wire screen for Resin Traps:

High mechanical strength
High wear resistance
High impact resistance
Larger open area
Self-supporting structure
Non-plugging slot design
Lower operation and maintenance cost

Advantages for wedge wire screen for Resin Traps:

Precise slot
Non-clogging surface
Large open area
Low pressure drop
High flow rates
Great mechanical strength
Abrasion-resistant
Easy cleaning
Flexibility in design
Perfect roundness,smooth surface

wedge wire screen for Resin Traps

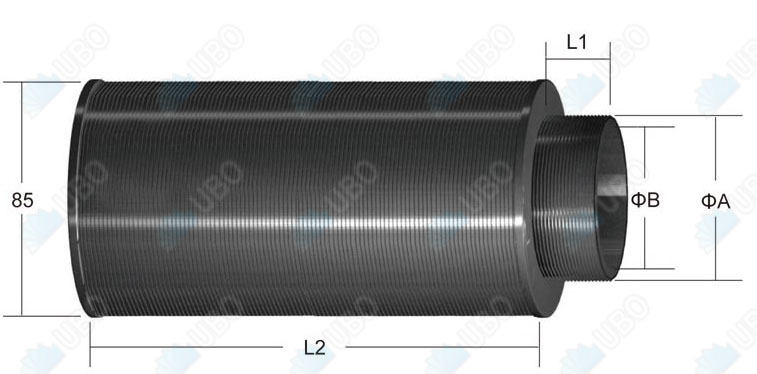

Specifications of wedge wire screen for Resin Traps:

wedge wire screen for Resin Traps

Type
Slots mm
ΦA
ΦB
L1mm
L2mm
AM
0.05,
0.1,
0.2,
0.3,
0.5,
1.0
G2"
G1 1/2"
G2"
G2"
Φ60
1 1/2"NPT
2 1/2"
Φ50
Φ38
1 1/4"NPT
1 1/2"NPT
G2"
1 1/4"NPT
Φ60
30,55
30,55
30
30
30
30
20
73, 126, 180, 231, 284, 338, 389

Packaging and Transportation of wedge wire screen for Resin Traps:

wedge wire screen for Resin Traps
