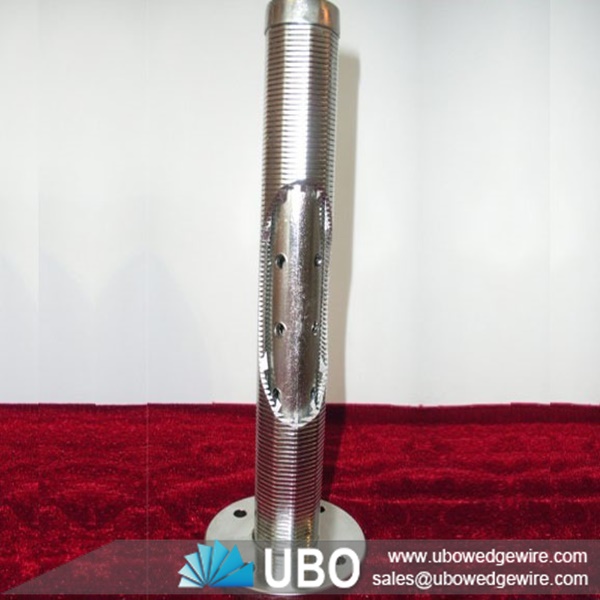

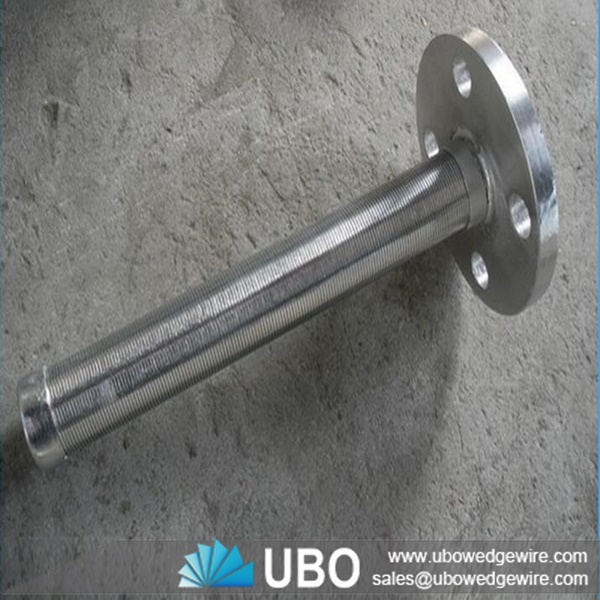

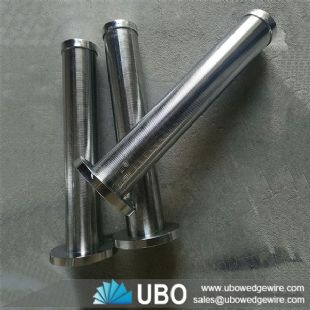

Wedge Wire wrapped v wire screen resin trap stainless steel

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire wrapped v wire screen resin trap stainless steel

Wedge Wire wrapped v wire screen resin trap stainless steel is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

Wedge Wire wrapped wire screen resin trap stainless steel

Application of Wedge Wire wrapped wire screen resin trap stainless steel

wedge wire screen resin traps connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features of Wedge Wire wrapped wire screen resin trap stainless steel

1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong body

Wedge Wire wrapped wire screen resin trap stainless steel

Wedge Wire wrapped wire screen resin trap stainless steel

Specifications of Wedge Wire wrapped v wire screen resin trap stainless steel:

Wedge Wire wrapped wire screen resin trap stainless steel

Wedge Wire wrapped wire screen resin trap stainless steel

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings



Packaging and Transportation of Wedge Wire wrapped v wire screen resin trap stainless steel:

Wedge Wire wrapped wire screen resin trap stainless steel
