Wedge Wire Screen Resin Trap for Water Treatment

More Views

Wedge Wire Screen Resin Trap for Water Treatment

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Resin Trap for Water Treatment

Wedge Wire screen resin traps are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

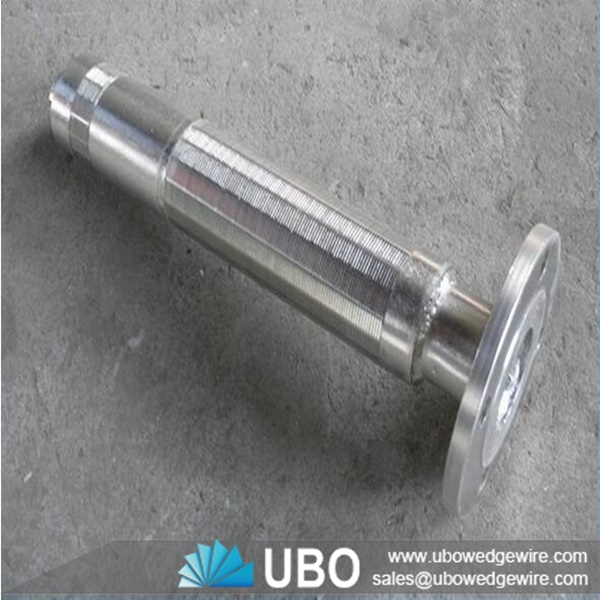

Wedge Wire resin trap for water treatment

Features of Wedge Wire Screen Resin Trap for Water Treatment

1) filter made of stainless steel trapezoidal wire, screen slot is v-shape, can effectively intercept resin impurities.

2) trapezoidal wire evenly circumferentially array on the support bar,ensure the screen filter area and non-obstructive, avoiding impurities concentrated.

3) resin trap all connected by welding, durable, long life.

4) After working for some time,can filter backwash, multiple use

Applications of Wedge Wire Resin Trap for Water Treatment

1) feedstock oil backwash cleaning filter device in the system for petrochemical hydrogenation

2) precious metals catalysts recovery for hydrogenation system

3) catalytic outer rejection oil automatic backwash cleaning filter system

4) purification of liquid sulphur filter

5) lubricants and heat-conducting oil filter

6) paraffin raw materials and products of filter

7) the rich amine liquid backwash purification filter in the amine desulfurization system

8) high-temperature coal gas, smoke gas and oil gas purification

9) raw materials of paraffin wax and backwash purification filter

10) the gas-liquid mixing pressurized reverse washing efficiency continuous filtration technology。

Wedge Wire resin trap for water treatment

Specifications of Wedge Wire Screen Resin Trap for Water Treatment:

Wedge Wire resin trap for water treatment

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End Connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Screen Resin Trap for Water Treatment:

Package: in wood case

Delivery Time: 5-25 days
