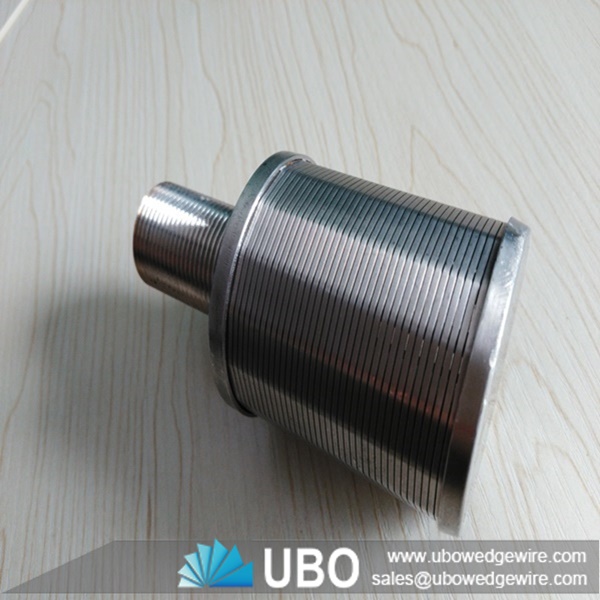

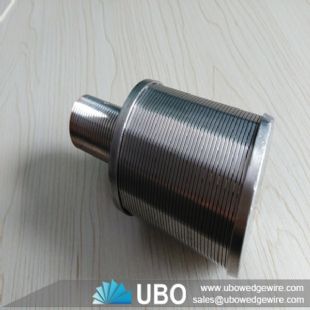

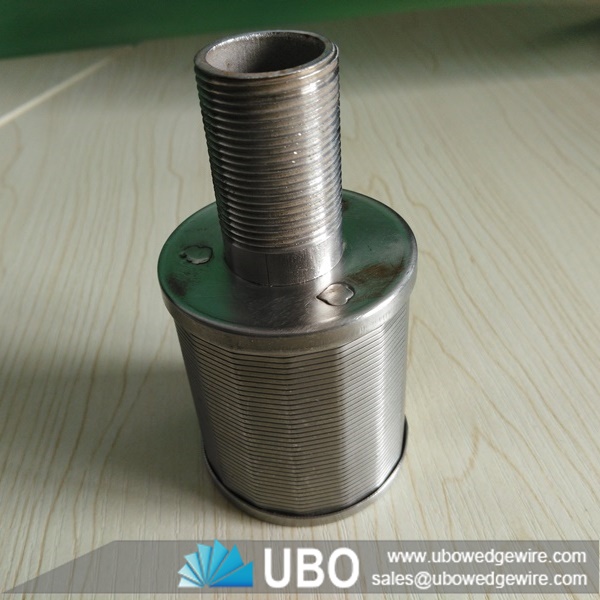

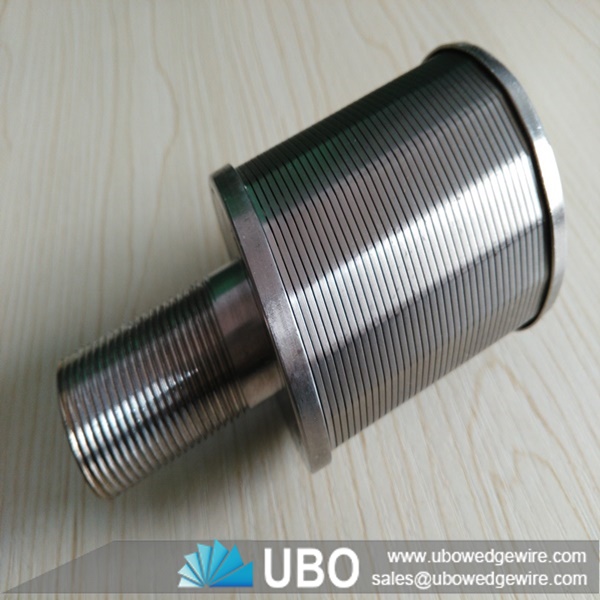

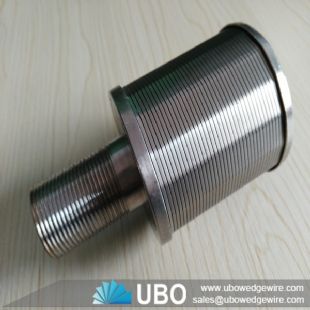

wedge wire water cap
Category: | Filter Nozzle |
---|---|
Material: | stainless steel |
Properties: | wedge wire screen |
Application: | water filtration,oil filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge wire water cap
wedge wire water cap(filter nozzle), have many called, for example, strainer nozzle, stainless steel filter nozzle, header lateral, stainless steel lateral arm, water &gas Strainers.
wedge wire water caps are used in liquid/solid or gas/solid separation. Their design and quantity will vary depending on application and customer-flow requirements. Scree Nozzles allow a more effective use of the treatment media.
Common applications include:
Collectors and distributors installed uniformly across a plate or a header lateral arrangement.
Demineralizers, water softeners and in pressure and gravity sand filters.
Benefits of wedge wire water cap
Economical design
Non-plugging design
High open area
Increased strength and corrosion resistance
Features of wedge wire water cap
Standard diameter: 1.97 in. (50 mm)
Typical slot opening ranging from 0.008 in. (0.2 mm) to 0.020 in. (0.5 mm)
Threaded end fittings or “L” bolts
Primarily made of stainless steel; however, special spherical nozzles made are also available
Specifications of wedge wire water cap:
Type | DiameterD | L | L1 | Slot | Thread | Open area |
FYN1 | 45 | 98 | 34 | 0.2-0.25 | M20 | 380-493 |
FYN2 | 45 | 100 | 34 | 0.2-0.25 | M24 | 551-690 |
FYN3 | 53 | 100 | 34 | 0.2-0.25 | M24 | 453-597 |
FYN4 | 53 | 100 | 50 | 0.2-0.25 | M27 | 680-710 |
FYN5 | 53 | 105 | 34 | 0.2-0.25 | M32 | 800-920 |
FYN6 | 57 | 115 | 35 | 0.2-0.25 | M30 | 560-670 |
FYN7 | 57 | 120 | 55 | 0.2-0.25 | M32 | 780-905 |
FYN8 | 60 | 120 | 55 | 0.2-0.25 | G1″ | 905-1100 |
FYN9 | 82 | 130 | 50 | 0.2-0.25 | M33 | 1170-1280 |
FYN10 | 108 | 200 | 100 | 0.2-0.25 | G2″ | 3050-4600 |
Note:
You can choose a rubber gasket, lockable nut on the nozzle.
Fitting can be NPT thread, M20 Threaded or Rings.
