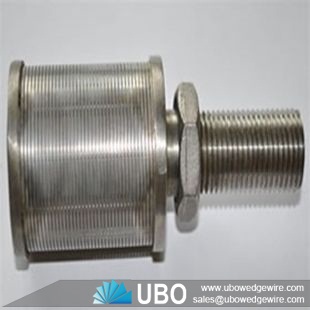

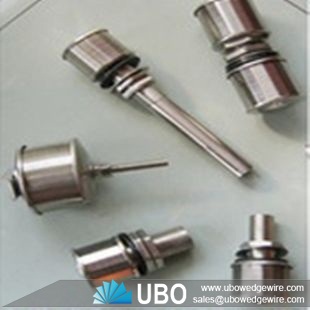

wedge wire screen nozzle/sand filter nozzle

wedge wire screen nozzle/sand filter nozzle

Category:	Filter Nozzle
Material:	stainless steel
Properties:	wedge wire screen
Application:	water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry

tag:wedge wire screen, nozzle/sand filter nozz,stainless steel,wedge wire screen,

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Email to Us

Start Order

Skype:Enla

Email:sales@ubowedgewire.com

Details of wedge wire screen nozzle/sand filter nozzle

UBO filter Nozzles, manufactured uniquely in stainless steel or alloy, are successfully used in mixed beds, ion exchangers and regenerators of condensate polishing system.

The wedge wire element in a nozzle is a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. One rubber shim, one steel shim and two thin nuts of the same material for a nozzle Material: SUS304, 1Cr18Ni9Ti, AISI316L, 316 and Haynes alloy C etc.

Application of wedge wire screen nozzle/sand filter nozzle

The wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Stainless Steel Wedge Wire Screen Nozzle/ Filter Nozzle Features

Composed of surface profile
High open area, non clogging filter surface
Spirally wrapped around the axial support profile
Accurate, narrow slot openings
Triangular wedge wire design creates orifice effect
Cake discharge by back washing

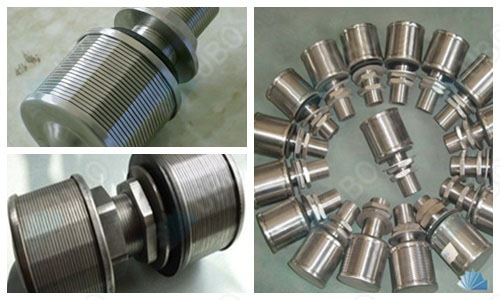

filter nozzle

Specifications of wedge wire screen nozzle/sand filter nozzle:

UBO offer a reliable and efficient range of Stainless Steel Wedge Wire Filter Cartridges. Our offered products are extensively demanded by various industries and are manufactured in accordance with the industry set norms and guidelines. Post-production, we test each product on various stages to give our clients

filter nozzle

Type	Diameter D	L	L1	Slot	Thread	Open area
FYN1	45	98	34	0.2-0.25	M20	380-493
FYN2	45	100	34	0.2-0.25	M24	551-690
FYN3	53	100	34	0.2-0.25	M24	453-597
FYN4	53	100	50	0.2-0.25	M27	680-710
FYN5	53	105	34	0.2-0.25	M32	800-920
FYN6	57	115	35	0.2-0.25	M30	560-670
FYN7	57	120	55	0.2-0.25	M32	780-905
FYN8	60	120	55	0.2-0.25	G1″	905-1100
FYN9	82	130	50	0.2-0.25	M33	1170-1280
FYN10	108	200	100	0.2-0.25	G2″	3050-4600

Packaging and Transportation of wedge wire screen nozzle/sand filter nozzle:

Packing:Wooden case or as your request

Delivery time: 30 days or according to the customerthe order quantity

filter nozzle
