Wedge Wire Screen Filter Nozzle

More Views

Wedge Wire Screen Filter NozzleWedge Wire Screen Filter NozzleWedge Wire Screen Filter Nozzle

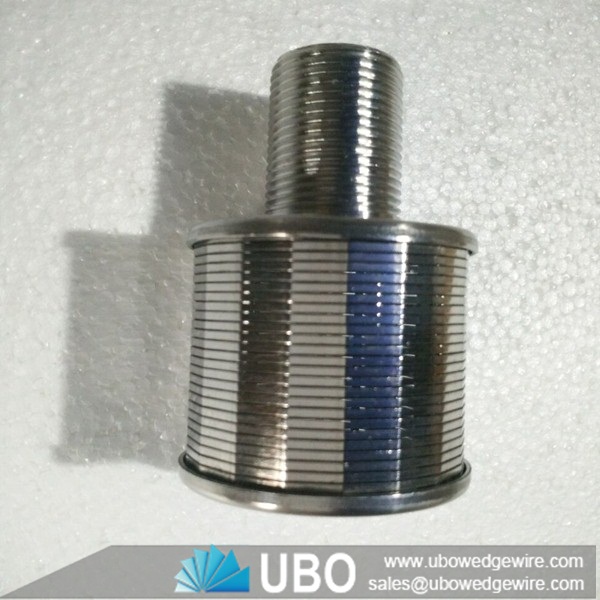

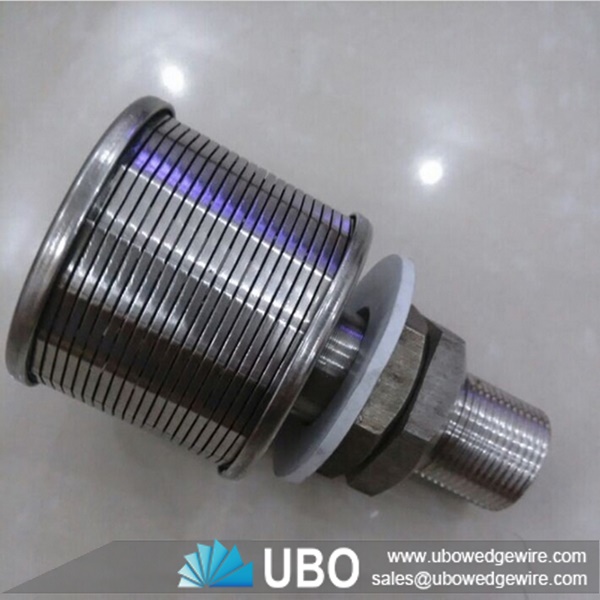

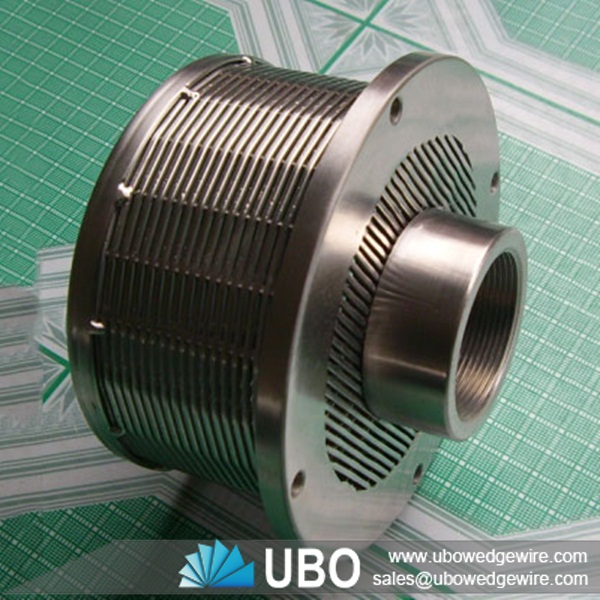

Wedge Wire Screen Filter Nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Filter Nozzle

The wedge wire screen filter nozzle, also known as sand filter nozzle with thread coupling, can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry. Mostly made of stainless steel materials.

Advantage of Wedge Wire Screen Filter Nozzle

High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap.

Use of Wedge Wire Screen Filter Nozzle

The wedge wire structure nozzle strainers / sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Wedge Wire Screen Filter Nozzle

Specifications of Wedge Wire Screen Filter Nozzle:

Wedge Wire Screen Filter Nozzle

Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot Size 0.10 -- 6.00mm ,also can be customized as your request.
Length Max 6 meters.
Diameter 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.
