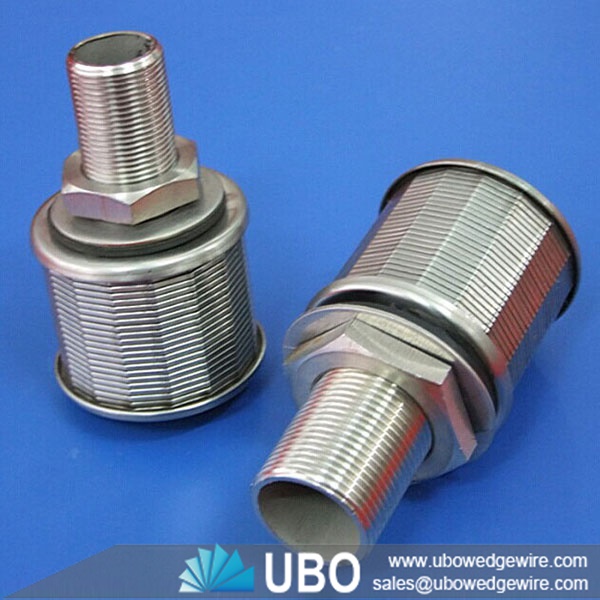

Water Wedge Wire Screen Filter Nozzle Supplier

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water Wedge Wire Screen Filter Nozzle Supplier

Water wedge wire screen filter nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Application of Water Wedge Wire Screen Filter Nozzle Supplier

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Features of Water Wedge Wire Screen Filter Nozzle Supplier

Wedge Wire screen have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.

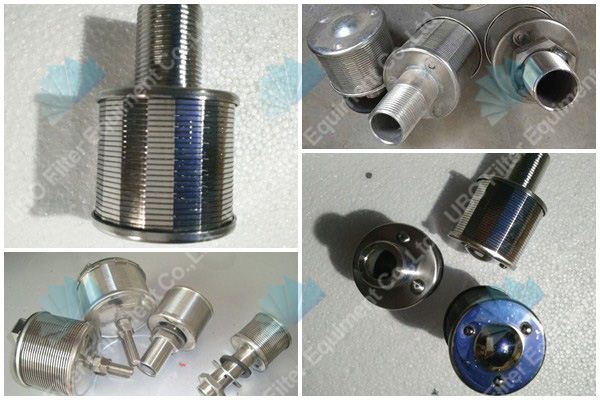

Water wedge wire screen filter nozzle supplier

Specifications of Water Wedge Wire Screen Filter Nozzle Supplier:



Water wedge wire screen filter nozzle supplier



NO.



    Type



 Ton



  Slot Opening



          Size

  0.2-0.25mm slot opening

    Area of through-flow

    mm²(reference)

  D

  L1

   L

 M



1

 TYS45-1-C

 0.5

 0.2-0.5

  45

  45

  95

 24

      500

2

 TYS53-2-B

  1

 0.2-0.5

  53

  45

  100

 24

      570

3

 TYS53-2-C

 1.5

 0.2-0.5

  53

  50

  110

 32

      700

4

 TYS57-3-B

  2

 0.2-0.5

  57

  45

  110

 32

      600

5

 TYS70-4-B

  3

 0.2-0.5

  70

  55

  120

 32

      1000

Packaging and Transportation of Water Wedge Wire Screen Filter Nozzle Supplier:

Package: in wood case.

Delivery Time: 5-25 days.
