SS v wire wedge screen nozzle filter

More Views

SS v wire wedge screen nozzle filterSS v wire wedge screen nozzle filterSS v wire wedge screen nozzle filter

SS v wire wedge screen nozzle filter

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS v wire wedge screen nozzle filter

SS v wire wedge screen nozzle filter is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

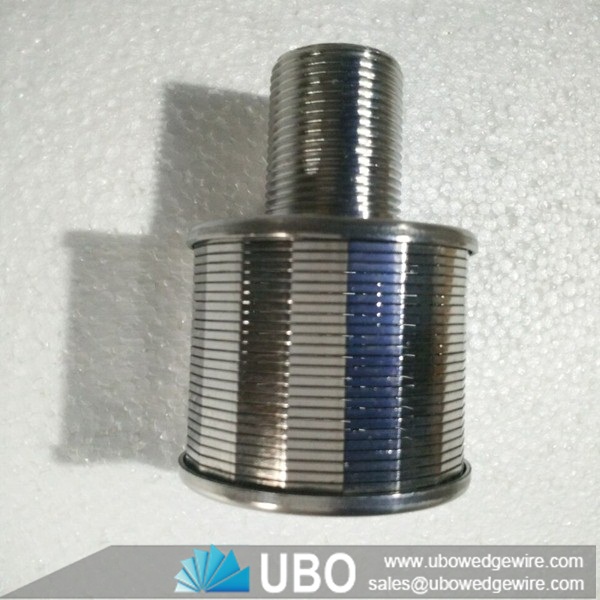

SS v wire wedge screen nozzle filter

Application of SS v wire wedge screen nozzle filter

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

Features of SS v wire wedge screen nozzle filter

Johnson screen have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.

Advantages of SS v wire wedge screen nozzle filter

Wedge Wire Screen & Nozzle Filters has a continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)
A uniform and efficient well development due to the continuous slot opening.

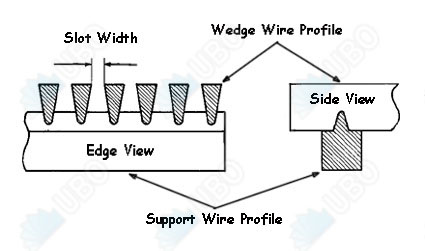

A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.

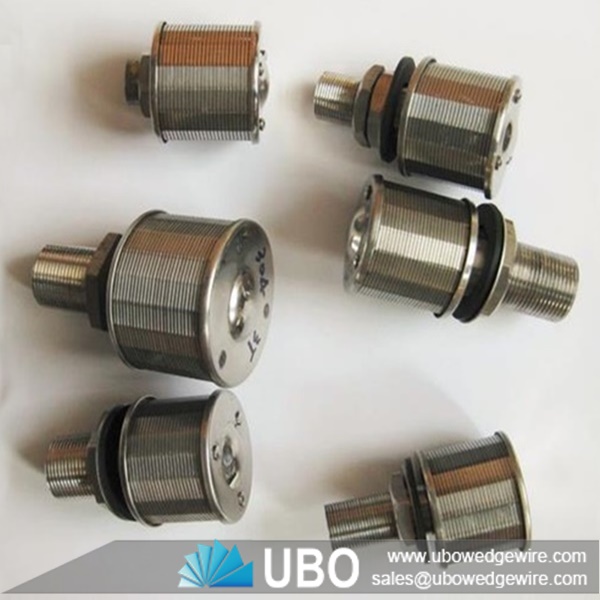

SS v wire wedge screen nozzle filter

Specifications of SS v wire wedge screen nozzle filter:

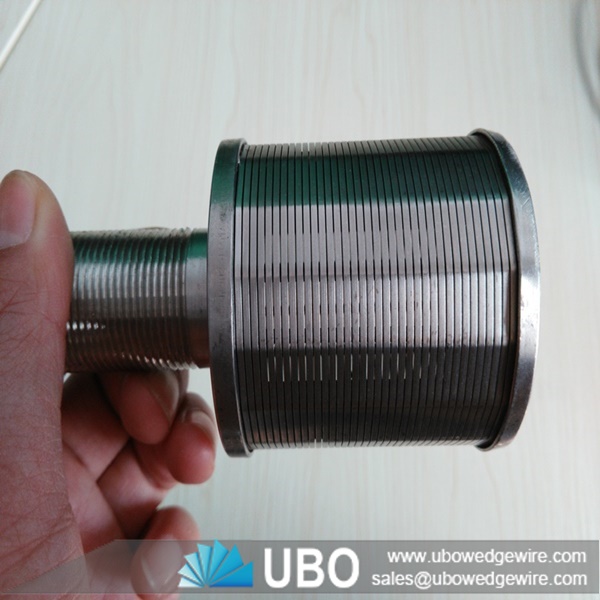

SS v wire wedge screen nozzle filter

No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

SH45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

SH53-2-B

1

0.2-0.5

53

45

100

24

570

3

SH53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

SH57-3-B

2

0.2-0.5

57

45

110

32

600

5

SH70-4-B

3

0.2-0.5

70

55

120

32

1000



Packaging and Transportation of SS v wire wedge screen nozzle filter:
