Pressure Wedge Wire Water Filter Nozzle Strainer for Liquid Filtration

More Views

Pressure Wedge Wire Water Filter Nozzle Strainer for Liquid FiltrationPressure Wedge Wire Water Filter Nozzle Strainer for Liquid FiltrationPressure Wedge Wire Water Filter Nozzle Strainer for Liquid Filtration

Pressure Wedge Wire Water Filter Nozzle Strainer for Liquid Filtration

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Pressure Wedge Wire Water Filter Nozzle Strainer for Liquid Filtration

Pressure wedge wire water filter nozzle strainers are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That’s because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.

UBO manufactures nozzles using a variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes UBO nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.

If needed, UBO can also custom manufacture nozzles to your exact specifications, including assembled nozzle.

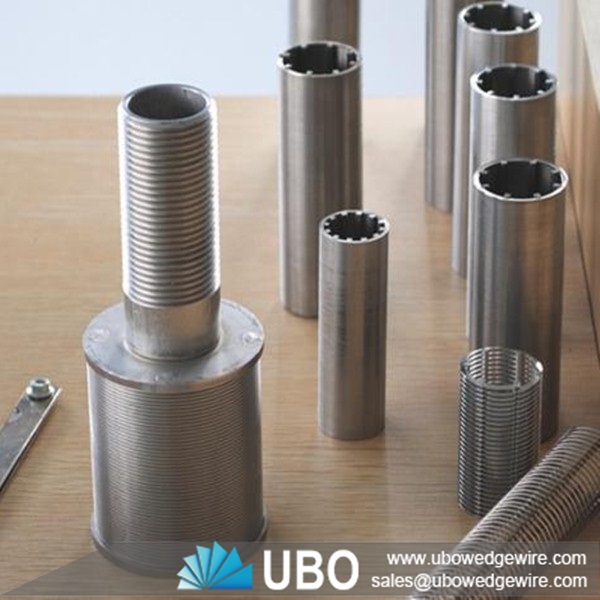

Pressure wedge wire water filter nozzle strainer for liquid filtration

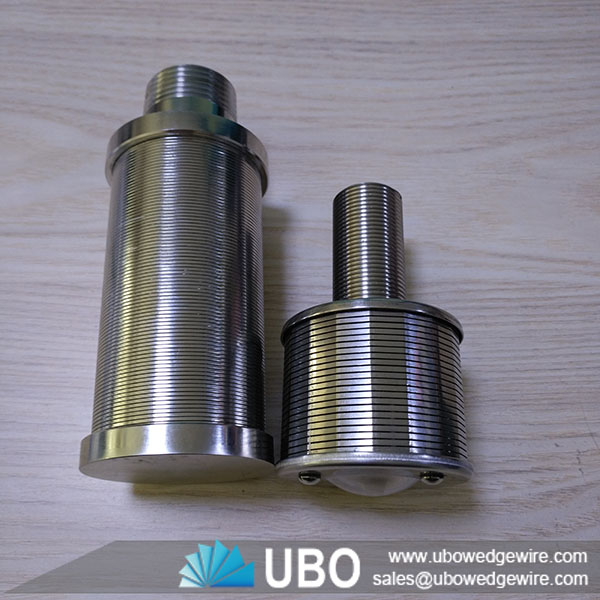

Pressure wedge wire water filter nozzle strainer for liquid filtration

Advantages of Pressure Wedge Wire Water Filter Nozzle Strainer for Liquid Filtration

-- Excellent roundness

-- Very good slot width precision

-- High mechanical load capacity

-- No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry

-- Automated welding process for high-precision manufacturing

-- Perfectly adjusted screen basket profiles

-- Available for all screens

-- Surface finishing as required

Application of Pressure Wedge Wire Water Filter Nozzle Strainer for Liquid Filtration

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

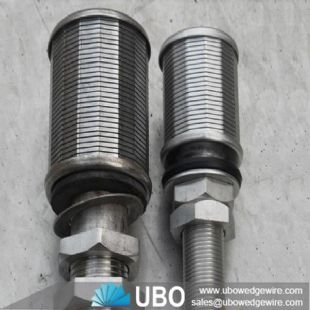

Pressure wedge wire water filter nozzle strainer for liquid filtration

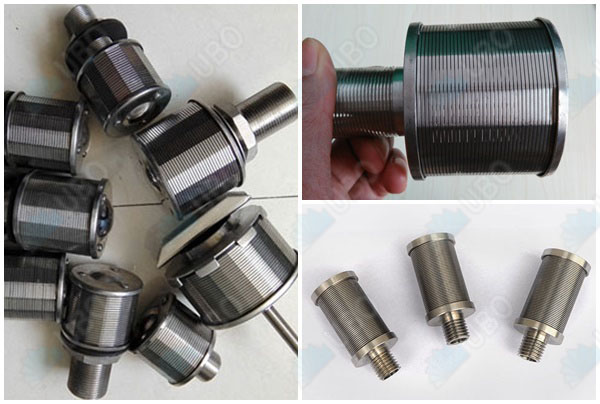

Pressure wedge wire water filter nozzle strainer for liquid filtration

Specifications of Pressure Wedge Wire Water Filter Nozzle Strainer for Liquid Filtration:

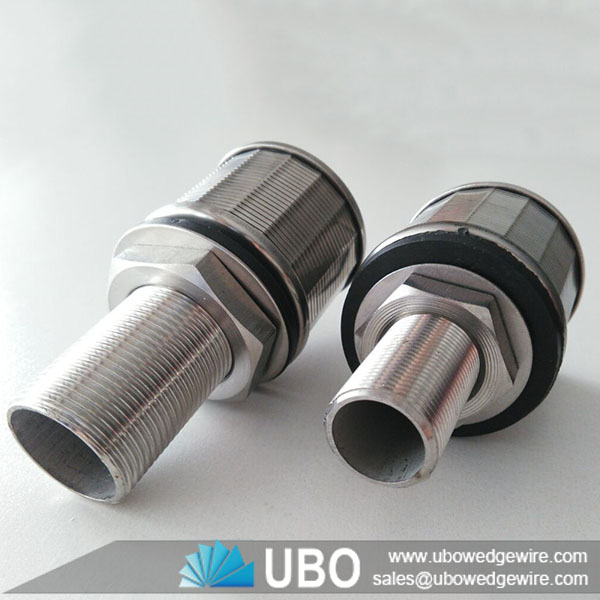

Pressure wedge wire water filter nozzle strainer for liquid filtration

Type

Slot

Dimension

Flow  area

D

H

L

M

L1

A

0.2mm

Φ45

35

150

M24

Decided by the perforated plate thickness

330m3

A1

0.2mm

Φ45

40

160

M24

400m3

B

0.2mm

Φ53

45

160

M24

500m3

B1

0.2mm

Φ53

45

160

M32

600m3

B2

0.2mm

Φ53

50

170

M32

650m3

C

0.2mm

Φ57

45

160

M32

630m3

C1

0.2mm

Φ57

50

170

M32

780m3

C2

0.2mm

Φ57

55

180

M32

850m3

Packaging and Transportation of Pressure Wedge Wire Water Filter Nozzle Strainer for Liquid Filtration:

Package: in wood case

Delivery Time: 5-25 days
