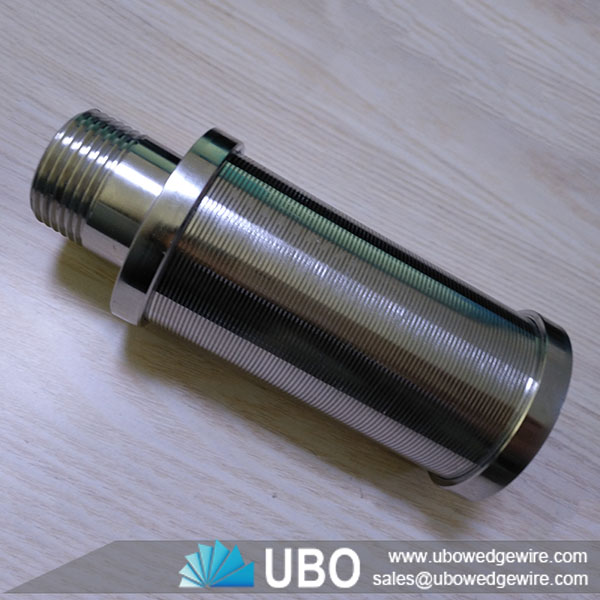

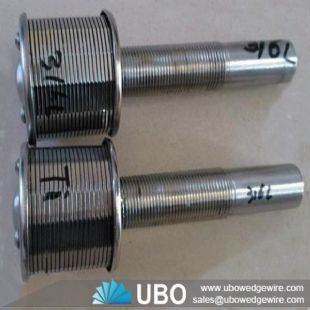

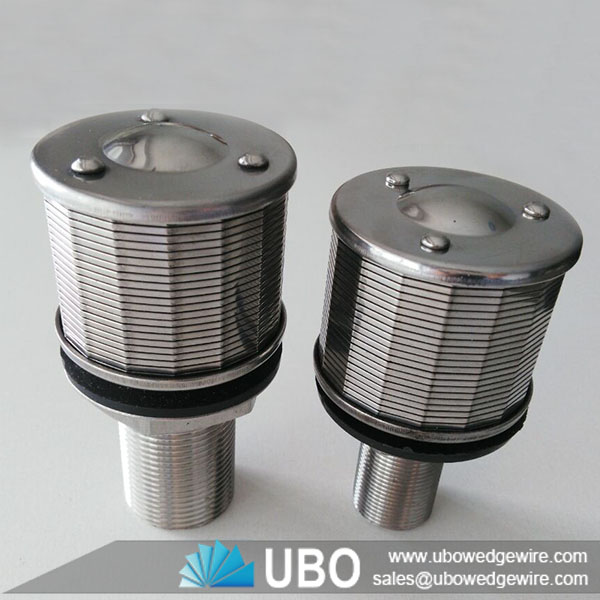

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

More Views

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen StrainerStainless Steel High Pressure Filter Nozzles Wedge Wire Screen StrainerStainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainers are used in liquid/solid or gas/solid separation. The wedge wire screen design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow thus almost eliminating the channeling, wall effects or dead zones.
Common applications include under drain media retention elements or flow distributors in demineralizers and water softeners in pressure and gravity sand filters,ion exchange processes Sand filters, Activated carbon processes . Nozzles can also be used as collectors at the bottom of the vessels by installing a number of nozzles uniformly across a tray plate. The combination of high open area and a non-plugging slot design makes this nozzle/collector application popular.

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Advantages of Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Large open area
Consistent slot width
non-clogging
non loss of resin
long using life
Smooth surface

Application of Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Specifications of Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer:

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)





D(mm)

H(MM)

L(MM)

Thread

Fittings



UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request





1.0

UBO-1.5

0.25

57

45

90/request





1.5

UBO-2.0

0.25

57

55

100/request





2.0

UBO-2.5

0.25

70

55

100/request





2.5

UBO-3.0

0.25

70

70

120/request





3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

Packaging and Transportation of Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer:

Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer
