wedge wire lateral assemblies

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

Wedge wire lateral assemblies consist of several wedge wire screen laterals and a supporting round hub. Genellary used for filtration.

Wedge Wire Lateral Assemblies


The components detail are as follows:
Lateral Assemblies
YUBO Screen uses its wedge wire screen to manufacture Hub and Lateral assemblies. Typical configurations include both horizontal herring bone style and vertical secured round hub.

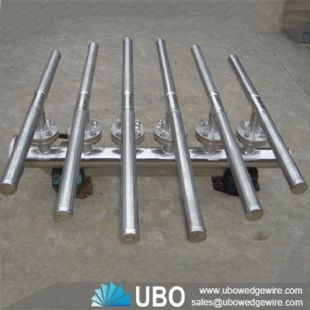

Header Assembly
In horizontal installations, the main header is typically bolted into a longitudinal vessel. The header is supplied with welded couplings to accept either screen laterals or pipe-based screen laterals.
Hub Assembly
With a vessel mounted upright, the pattern required for the underdrain assembly is round. This style is achieved with a central hub. Again couplings are typically welded to the hub to accept either wedge wire screen laterals or pipe-based laterals.

Types of our wedge wire lateral assemblies(as in the picture)

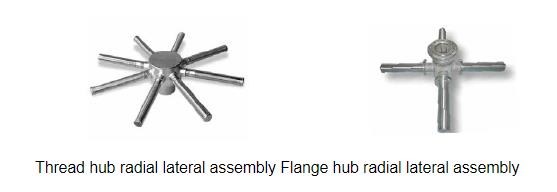

• Type 1

Types of our wedge wire lateral assemblies

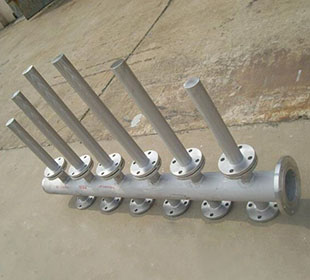

• Type 2

Types of our wedge wire lateral assemblies

Provide customized service and after-sales guarantee. Welcome to browse our website and leave a message at any time, we will reply in time! Email: sales@ubowedgewire.com

Who We Are?

YUBO Company is the professional supplier in China. It is always committed to study, design and produce wedge wire screen products for industry filter.Now its products include wedge wire screen panel, filter nozzle, cylinder,basket,pipe, Sieve Bend Screen,Profile Screen Laterals,etc.

What Is wedge wire screen

Wedge Wire Screens is a sieve made from looped wires formed into a deep wedge-shaped section. The wedge wire screens can be supplied in various shapes and forms as FLAT PANELS, CURVED SIEVE BENDS, CONICAL BASKETS, CYLINDERS, TROUGHS DISKS either in one one piece or in segments.

our advantages

  • Professtional, we have our Engineering designers
  • We are the factory
  • Quality is our cluture and soul
  • Customized. We produce and design according to your need
  • Low cost and high efficient
