uneven flow solve it with wedge wire curved screen

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

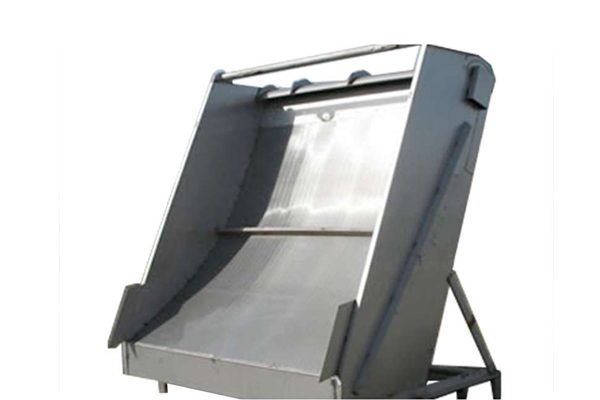

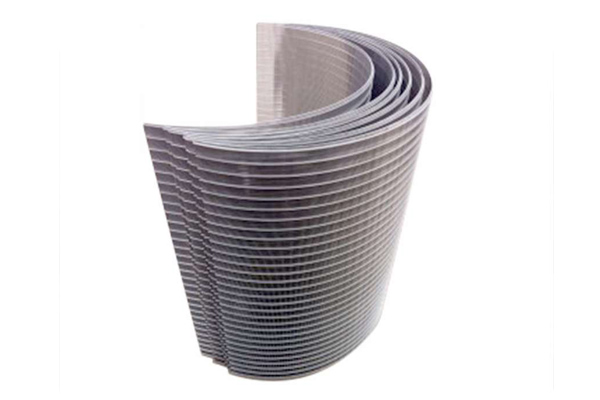

Wedge wire curved screens, also known as sieve bend screens or parabolic screens, are advanced filtration devices designed for efficient solid-liquid separation. They are constructed from stainless steel wedge wires arranged in a curved profile, forming continuous, precisely sized slots. This unique V-shaped wire structure allows liquids to pass through smoothly while retaining solids on the screen surface, reducing clogging and improving flow performance. The curved design further enhances separation efficiency by utilizing gravity and centrifugal force, making these screens widely used in industries such as wastewater treatment, mining, food processing, and pulp and paper.

The fine wedge (curved screen) is the purpose of an external high-speed pumping fluid material flowing into the arc mesh, relying on centrifugal force and gravity of the water in the sieve gate relative shear movement, separating the solids and liquids to sieve. The same time, the online gathering solids, with the flow rolling down liquid continuously hydraulic erosion sieve gate, making it play a role in self-purification, thus completing the whole process of sieve continuous self-purification and solids collected.

Features:

Efficient separation with sharp cut;Unique profile wire welded wege wire sieve bend;Safe and stand equipment;Simple screen replacement design;Pneumatically operated washing jet for screen surface.

Applications

Wedge wire curved screens are widely used across a variety of industries due to their high efficiency and low maintenance characteristics. In wastewater treatment, they are applied for primary screening, sludge thickening, and removing suspended solids. In the mining and mineral processing industry, they are commonly used for dewatering, classification, and desliming of ores. In food and beverage processing, such as sugar, starch, and brewing production, they help separate solids from liquids while meeting hygienic standards. They are also utilized in pulp and paper production for fiber recovery, as well as in chemical and petrochemical industries for process filtration and resource recovery.

Customization of all aspects is totally available to meet all your requirements.

Get a Free Quote for wedge wire curved screens

E-mail: sales@uboscreen.com

WhatsApp: 86-13653285589

FAQ: Wedge Wire Curved Screens

Q1: How do I choose the right slot size for my application?

Choosing the correct slot size depends on the particle size you need to retain and the desired flow rate. A smaller slot offers finer filtration but may reduce throughput, while a larger slot improves flow but captures fewer solids. It’s recommended to match slot size with your process requirements or consult with a supplier for customization.

Q2: How often does the screen need maintenance or cleaning?

Maintenance frequency depends on the operating environment and material being processed. However, due to their self-cleaning effect and optional washing systems, these screens typically require less frequent maintenance compared to flat or traditional mesh screens.

Q3: Can wedge wire curved screens handle high flow rates?

Yes, they are well-suited for high-capacity applications. The curved design allows for efficient liquid distribution across the screen surface, enabling consistent performance even under high flow conditions.

Q4: Are these screens suitable for corrosive or harsh environments?

Yes, they are commonly made from stainless steel (such as 304 or 316), which offers excellent resistance to corrosion, high temperatures, and chemical exposure, making them ideal for demanding industrial applications.

Q5: Is installation complicated?

No, most wedge wire curved screens are designed for easy integration into existing systems. Their modular structure and simple mounting options make installation and replacement straightforward, reducing downtime.

Q6: What makes curved screens better than flat screens?

Curved screens utilize gravity and flow dynamics more effectively, improving separation efficiency and reducing wear. This results in better performance, longer service life, and lower operational costs compared to flat screen designs.
