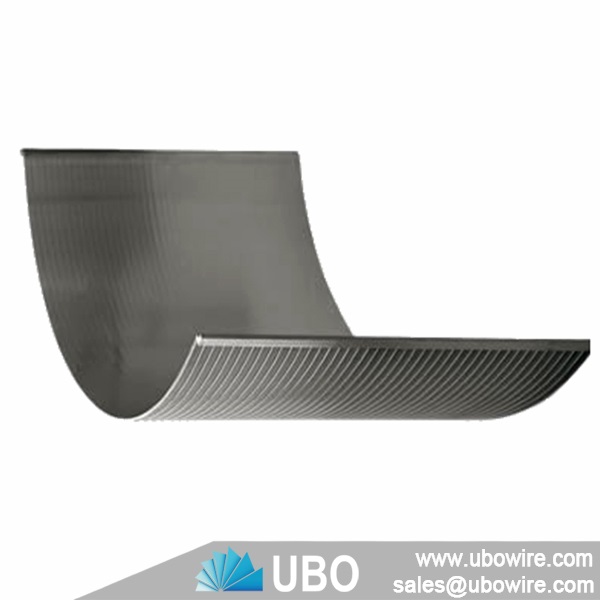

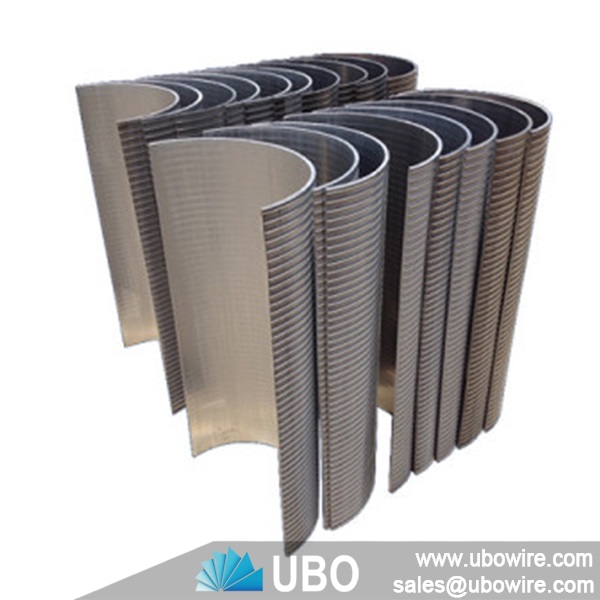

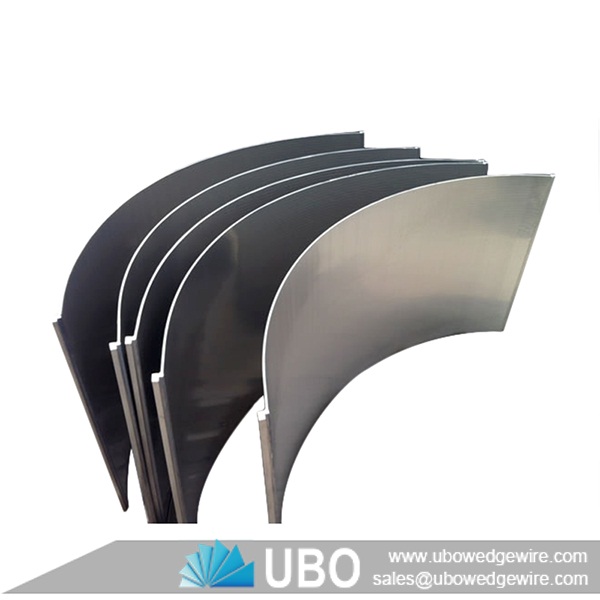

Wedge wire parabolic curved screen panel

More Views

Wedge wire parabolic curved screen panelWedge wire parabolic curved screen panelWedge wire parabolic curved screen panel

Wedge wire parabolic curved screen panel

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Wedge wire parabolic curved screen panel

Wedge wire parabolic curved screen panel of support rod and wedge wire. The wedge wire and support rod is welded for strength and durability. The shape of the rod is round, triangular or trapezoid. The wire is triangular(V- shaped) wire. With the structure of high open area, our wedge wire screen has accurate slot dimension.

UBO Parabolic screen filter heat resistant, anti-corrosive, safe and reliable. It can be used for filtering different kinds of medium. We can produce curved sieve screen as per customer’s requirements.

Wedge wire parabolic curved screen panel

wedge wire sturcture of Wedge wire parabolic curved screen panel

Feature of Wedge wire parabolic curved screen panel

1. Working with the water gravity, no energy consumption
2. High water treatment capacity
3. Not easy to be blocked and easy to clean
4. Using stainless steel, it has high mechanical strength and long life.

Application of Wedge wire parabolic curved screen panel

The wedge wire parabolic screen is a kind of filtered water tubing, which can be used with the deep well pump, submerged pump. It also can be used as the water treatment equipment for water desalination, running water treatment and softening.
This sieve bend screen is applied to filtering the acid and alkali liquid, ethyl alcohol and other organic solution in petrochemical industry.

strcture of Wedge wire parabolic curved screen panel

strcture of Wedge wire parabolic curved screen panel

Specifications of Wedge wire parabolic curved screen panel:

Wedge wire parabolic curved screen panel

Wedge wire parabolic curved screen panel

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot size

Slot size

Radian:

120º,60º,45º as your request

The Packaging and Transportation of the Wedge wire parabolic curved screen panel:

transportation of Wedge wire parabolic curved screen panel
