catalyst support grid screen

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

We provide catalyst support grid screens for the petrochemical and refining industries. They are meticulously engineered to withstand the harsh conditions of industrial environments, including high temperatures, corrosive chemicals, and intense pressure.

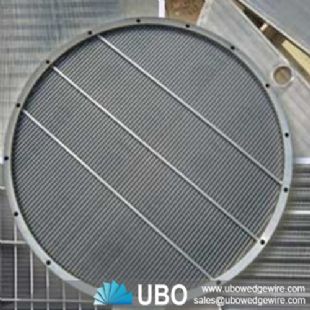

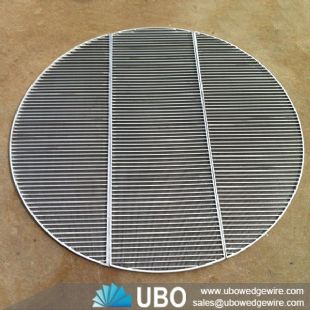

Catalyst support grid screens are wedge wire screen panels to support catalyst media.

Our wedge wire catalyst support grid is designed to hold catalyst particles within the reactor vessel securely. It can withstand the pressure drop across the catalyst bed during the entire catalyst cycle.

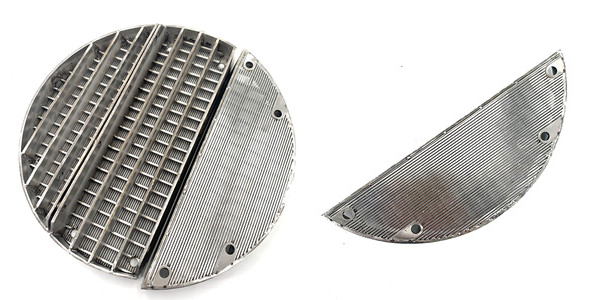

catalyst support grid screen, wedge wire screen, manufacturer

Features and Benefits of Catalyst Support Grid Screen

▪ Enhanced Distribution
One of the primary functions of support grid screens is to ensure the even distribution of catalyst particles throughout the reactor bed. This uniformity is crucial for promoting consistent reaction rates and preventing localized hotspots or dead zones.
▪ Optimized Flow Dynamics
By incorporating carefully designed perforations or mesh patterns, support grid screens help regulate the flow of reactants and products within the reactor. This optimization of flow dynamics minimizes channeling and promotes thorough mixing, thereby maximizing the efficiency of the catalytic process.
▪ Mechanical Stability
Catalyst support grid screens are engineered to provide robust mechanical support to the catalyst bed. They resist deformation, vibration, and thermal expansion, maintaining the integrity of the reactor system over prolonged operation periods.
▪ Easy Installation and Maintenance
These screens are typically designed for hassle-free installation and removal, facilitating routine maintenance and catalyst replacement tasks. This feature is crucial for minimizing downtime and ensuring continuous operation of industrial processes.

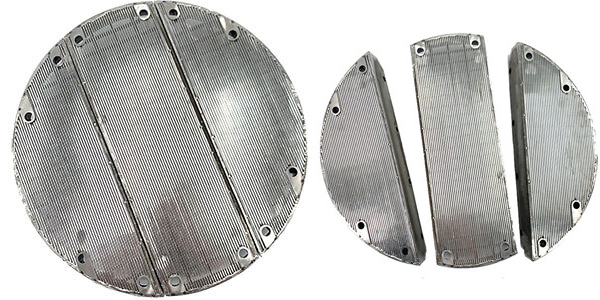

wedge wire support grid for the petrochemical and refining industries

Contact us for custom catalyst support grid screens for the petrochemical and refining industries!



Who We Are?

YUBO Company is the professional supplier in China. It is always committed to study, design and produce wedge wire screen products for industry filter.Now its products include wedge wire screen panel, filter nozzle, cylinder,basket,pipe, Sieve Bend Screen,Profile Screen Laterals,etc.

What Is wedge wire screen

Wedge Wire Screens is a sieve made from looped wires formed into a deep wedge-shaped section. The wedge wire screens can be supplied in various shapes and forms as FLAT PANELS, CURVED SIEVE BENDS, CONICAL BASKETS, CYLINDERS, TROUGHS DISKS either in one one piece or in segments.

our advantages

  • Professtional, we have our Engineering designers
  • We are the factory
  • Quality is our cluture and soul
  • Customized. We produce and design according to your need
  • Low cost and high efficient
