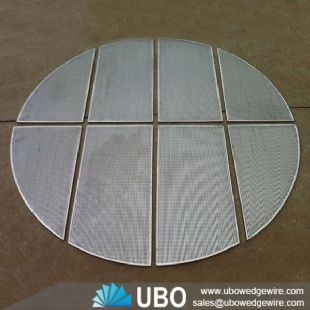

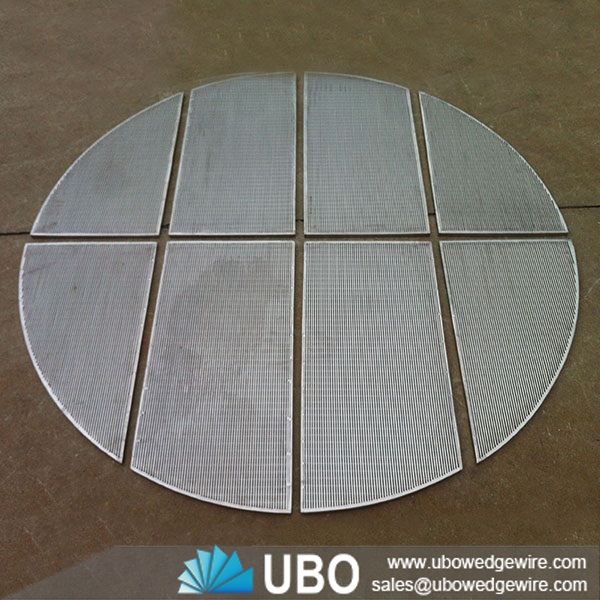

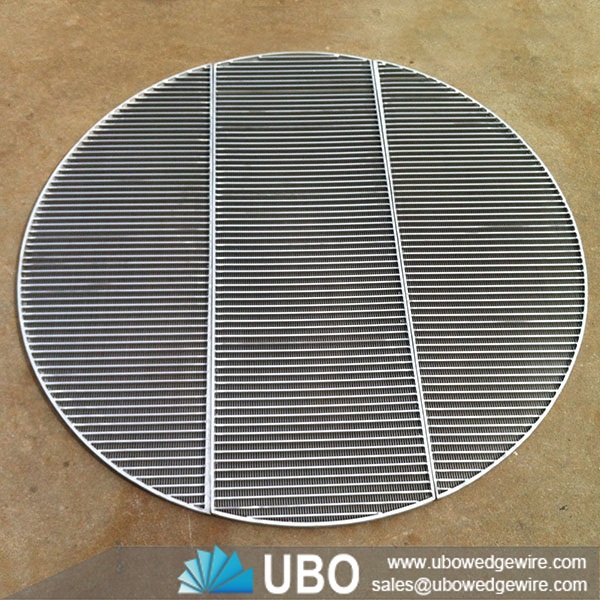

Stainless Steel Wedge V Wire Screen Support Grid

More Views

Stainless Steel Wedge V Wire Screen Support GridStainless Steel Wedge V Wire Screen Support GridStainless Steel Wedge V Wire Screen Support Grid

Stainless Steel Wedge V Wire Screen Support Grid

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:support grid
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge V Wire Screen Support Grid

The support grid is a flat screen that provides uniform flow collection which is essential in many applications. This is particularly important when screens are used to reserve expensive ion exchange resins. Support grids provide superior media retention characteristics in vessels of all types. They feature durable construction, precise open area, and are virtually non-clogging. For larger vessel diameters UBO support grids are fabricated in segments to allow installation through a vessel man-way.


Application for stainless steel wedge V wire screen support grid:



UBO have stainless steel wedge wire screen grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements



Installation for stainless steel wedge V wire screen support grid:

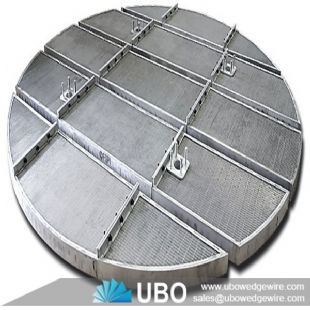

A support grid could be made out of parallel or pie shaped segments, each segment just resting on the beams or bolted to or welded to the next one. The joining bars could be flush or project above the screening surface. Support structure can be included for additional strength.

The support grids can be attached to the supporting structure by bolts fixed to the grid or part of the vessel itself.

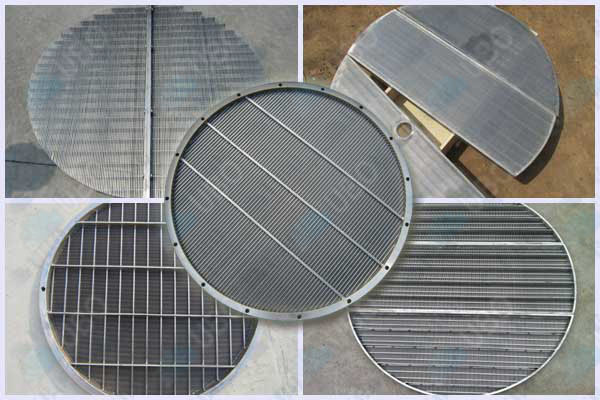

stainless steel wedge V wire screen support grid

Specifications of Stainless Steel Wedge V Wire Screen Support Grid:

stainless steel wedge V wire screen support grid

Material low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.
Slot (mm) 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 also achieved upon customer request.
Profile Wire  #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Support Rod 1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Steel Flat Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.
Frame Iron Frame, Steel Frame, or Nothing.

Packaging and Transportation of Stainless Steel Wedge V Wire Screen Support Grid:

stainless steel wedge V wire screen support grid
