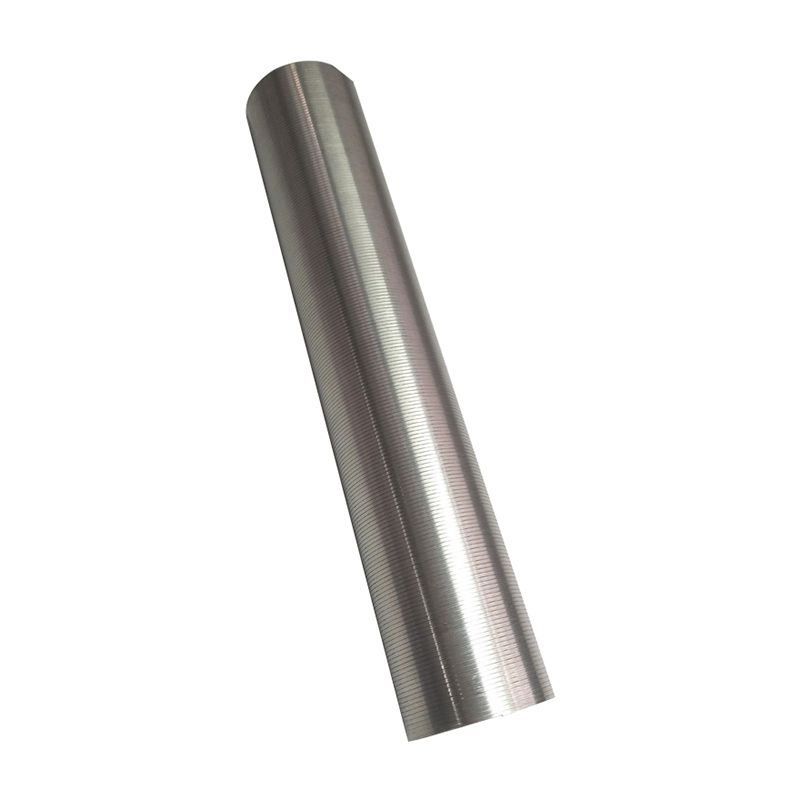

V Wire Tube for Water Well

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

V wire tubes for water wells also called water slot screen pipes are the better alternative to slotted pipes for tube wells. The water well V wire tube is made of wedge wires wounded and welded on the support rod. It has continuous opening slots to allow more water to enter in tube well.

The main role of the V wire tubes for water well: improving pumping efficiency by maximizing water flow rate into the well.

Our V wire tube for the water well is manufactured with stainless steel 304/316/316L. It has excellent high-temperature resistance and corrosion resistance.

Specifications of water well V wire tubes
1. Wedge wire:
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
2. Support rod:
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
3. Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Hebei YUBO Filtration Equipment Co., Ltd. can custom produce various specifications of V wire tubes for the water well. Welcome to contact us at any time!

E-mail: sales@ubowedgewire.com
WhatsApp/skype/WeChat: +86 135 2283 8175

V Wire Tube for Water Well

Who We Are?

YUBO Company is the professional supplier in China. It is always committed to study, design and produce wedge wire screen products for industry filter.Now its products include wedge wire screen panel, filter nozzle, cylinder,basket,pipe, Sieve Bend Screen,Profile Screen Laterals,etc.

What Is wedge wire screen

Wedge Wire Screens is a sieve made from looped wires formed into a deep wedge-shaped section. The wedge wire screens can be supplied in various shapes and forms as FLAT PANELS, CURVED SIEVE BENDS, CONICAL BASKETS, CYLINDERS, TROUGHS DISKS either in one one piece or in segments.
