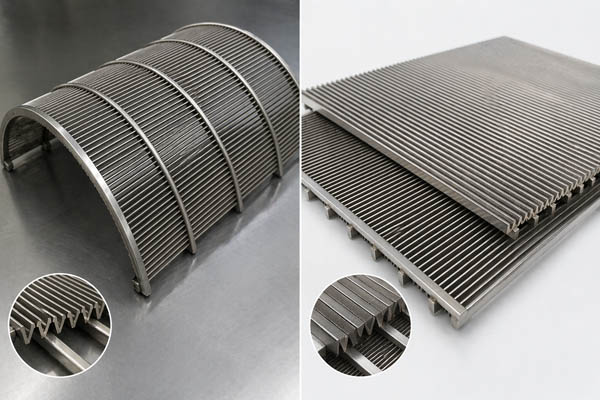

Introduction: Understanding Curved vs. Flat Wedge Wire Screens

Stainless steel wedge wire screens are precision filtration components manufactured with V-shaped profile wires that create continuous, non-clogging slots. These screens are commonly available in two main configurations: curved screens (sieve bends) and flat panels, each engineered to meet different operational requirements in solid-liquid separation.

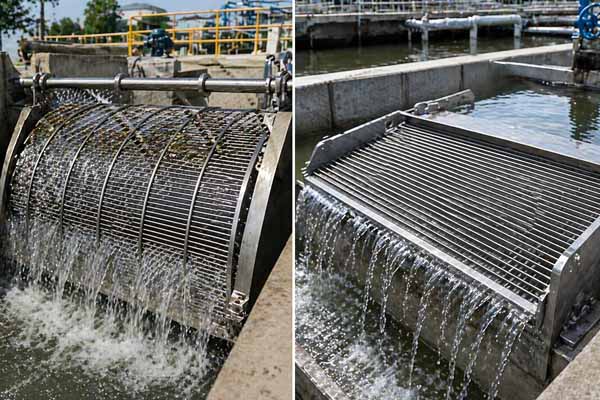

Curved wedge wire screens feature a concave design that utilizes gravity and hydraulic flow to enhance dewatering and handle high-capacity slurry processing. In contrast, flat wedge wire screens provide a rigid, planar surface suited for controlled, precise filtration, often integrated into vibrating or static screening systems.

Key distinction

The key distinction between these two lies in their flow dynamics, capacity, installation requirements, and application scope. While curved screens are optimized for continuous, high-volume separation processes, flat panels offer greater flexibility, easier installation, and higher precision in applications with lower flow rates or mechanical screening setups. Understanding these differences is essential for selecting the most effective solution for your specific filtration needs.

Wedge wire curved screens

Wedge wire screens are cylindrical at the beginning of fabrication but very often modified to be flat or curved in shape depending on customer requirements.  These types of screens are made to a specific length, width, or even radial dimension.  Our curved screens (also known as sieve bends) are well matched to the requirements of high capacity filtration.  These screens are self-cleaning, durable, and reusable.  The curved screen with wedge wire perpendicular to the flow direction allows water to drop through the screen and be collected as wastewater while the angle and flow allow the solids (or branches) to slide over the screen.  These products are effective in wastewater treatments, dewatering systems, and other applications.

Wedge wire screen flat panels

Wedge wire screen flat panels consist of a series of parallel "V-shaped" profile wire resistance welded or looped on perpendicular support rods. They are manufactured by high quality stainless & acid-proof steel with premium corrosive-resistance as well as mechanical strength. V wire screen with slot openings widening inwardly ensures the particles pass through smoothly and reduce clogging.

Features & Benefits

No-clogging Structure.

High-precision slot space & high slot opening ration.

High abrasion and corrosion resistance.

Low pressure drop.

Mechanical strength construction.

Bespoke specification for specific machines & uses.

Diverse apertures & profiles supplied.

Self-cleaning effect.

Smooth & flat surface.

Applications

Industrial filtration.

Food processing.

Petrochemical.

Mineral and aggregate processing.

Water treatment.

Stainless steel wedge wire curved and flat screens are designed to solve different filtration challenges, and neither is universally better than the other. Curved screens (sieve bends) are best suited for high-capacity, gravity-driven dewatering and continuous separation processes, while flat panels provide greater flexibility, precise filtration, and easier integration into vibrating or compact systems.

The right choice depends on key factors such as flow rate, solids load, installation space, and operational requirements. By evaluating these conditions carefully, users can select the most efficient and cost-effective wedge wire screen solution for their specific application.

FAQ: Choosing Between Curved and Flat Wedge Wire Screens

1. How do I determine whether my process needs a curved or flat screen?

Start by evaluating your process flow. If your system relies on gravity and handles large volumes of slurry, a curved screen is typically more efficient. For controlled environments with mechanical vibration or limited space, flat panels are usually the better fit.

2. What factors most affect screening performance in real applications?

Key factors include feed consistency, particle size distribution, flow rate, and system pressure. Even with the same slot size, performance can vary depending on how evenly material is distributed across the screen surface.

3. Can wedge wire screens be customized for existing equipment?

Yes. Both curved and flat screens can be manufactured to match existing dimensions, mounting systems, and operational requirements. Customization helps reduce installation time and ensures compatibility with current machinery.

4. How often do wedge wire screens need replacement?

Service life depends on material selection, abrasion level, and operating conditions. In most industrial environments, properly selected stainless steel wedge wire screens can last several years with minimal maintenance.
