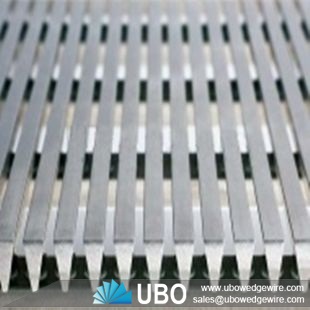

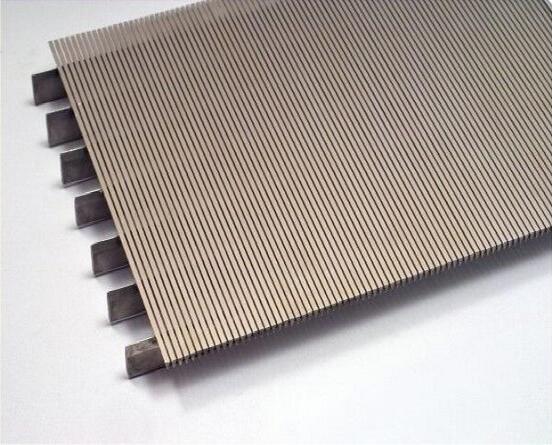

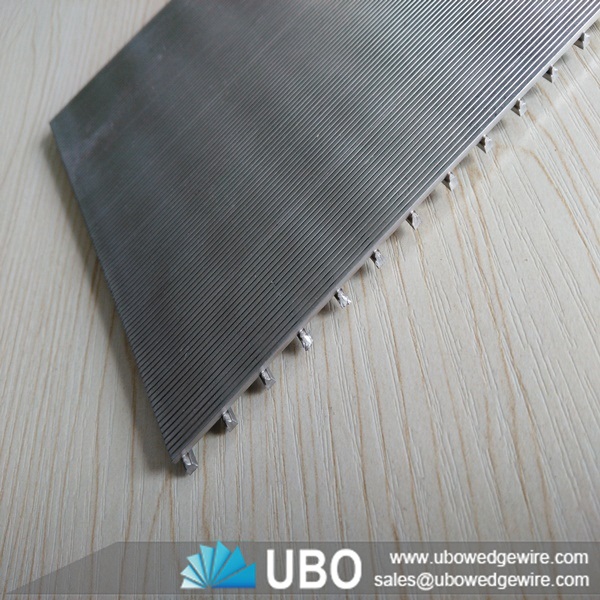

wedge wire slot screen panel

More Views

wedge wire slot screen panelwedge wire slot screen panelwedge wire slot screen panel

wedge wire slot screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:filteration/industry,liquid filter,water treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

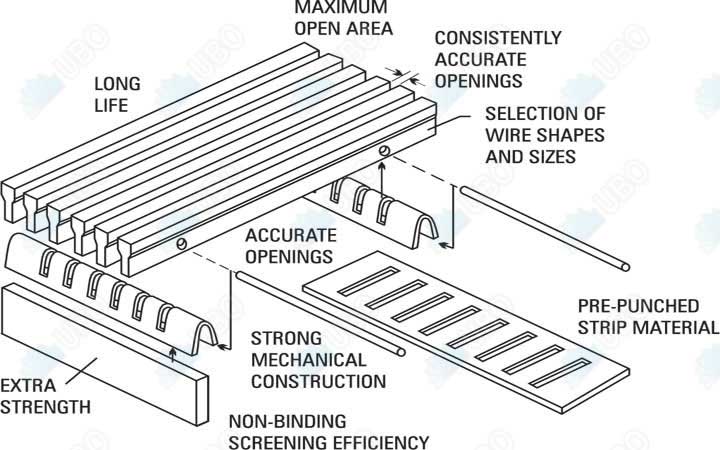

Details of wedge wire slot screen panel

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension

wedge wire slot screen panel

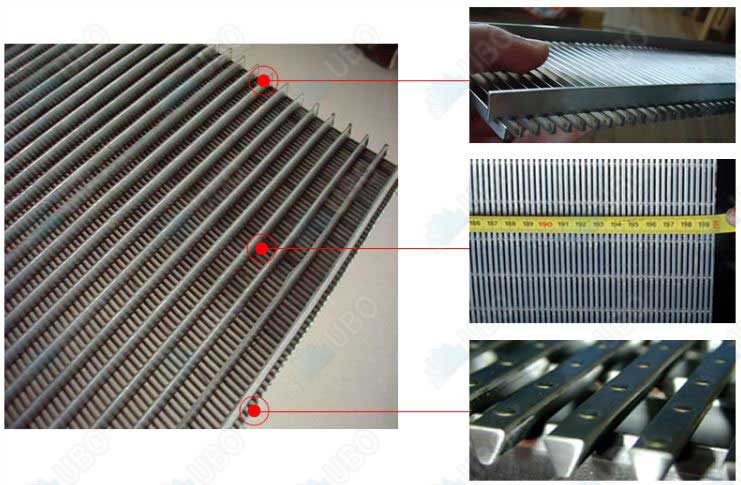

Characteristics of wedge wire slot screen panel

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Application of wedge wire slot screen panel

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load. Widely used for fiber removal in Starch industry.

wedge wire slot screen panel

Specifications of wedge wire slot screen panel:

wedge wire slot screen panel

Sepcification

Material

AISI304/316/316L,Galvanized low carton

Wedge Wire(mm)

Width :1.50 1.80 2.30 3.00 3.30 3.70

Height :2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod (mm)

Width :2.30 3.00 3.30 3.70



Height :2.70 3.60 4.70 5.60 6.30



Round : 2.50mm --6.00mm

Slot /opening size

0.10--6.00mm,also can be customized as your request.

Length /Width

Can be customized ad your request

Diameter

25mm--1200mm

Packaging and Transportation of wedge wire slot screen panel:

Based on the quantity of wedge wire screen panel, we will found the most available delivery way for client,Gurantee client receive goods in time .
About the package material:normally we use lignifiedwood wooden case with water-proof bag,make sure that client see their goods in good quality and complete quantity !

    packing
