Wedge Wire welding screen panels

More Views

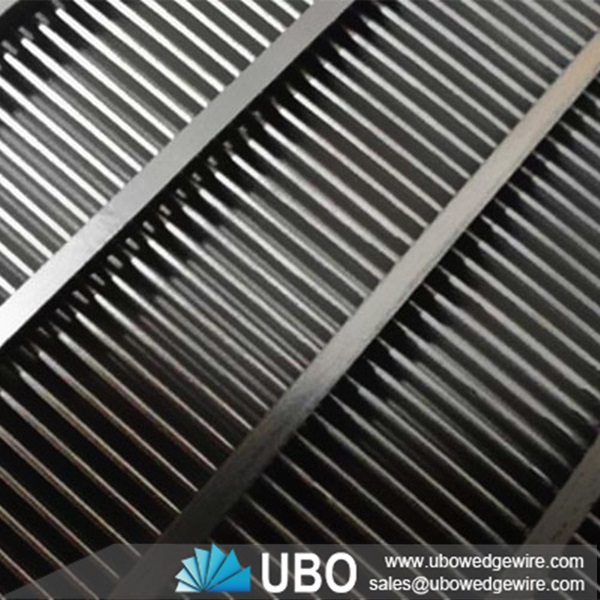

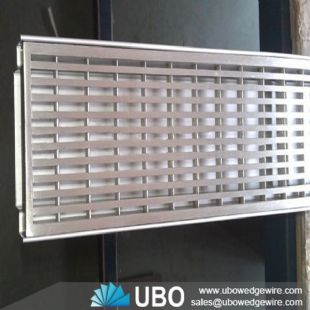

Wedge Wire welding screen panelsWedge Wire welding screen panelsWedge Wire welding screen panels

Wedge Wire welding screen panels

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire welding screen panels

    Wedge wire screen panel can be designed to optimize the open area, strength and wear life for each application. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.
    Wedge wire screen panel are made using only the highest quality standard stainless steel materials. The screen's surface structure is welded at 90 degrees angle with the support profiles which widen inwardly.

Application for Wedge Wire welding screen panels:

Wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,Many other liquids, solids separation applications.

Advantages for Wedge Wire welding screen panels:

Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
Low pressure-drop.
Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.
High efficiency: continuous slot opening.
Large flow rate: “v” shaped profile wire ensures a uninterrupted flow

Characteristics for Wedge Wire welding screen panels:

Wedge wire screen is made up of rods and profile wire.The rod can be round wire,triangular wire or trapezoid wire.The profile wire is triangular wire (V-shaped wire).Wedge wire screen has a structure and high open area,as well as accurate slot dimension.At the same time,water well screen have heat-resisting,anti-corrosive,good machine capability,last long,safety and reliability and so on characteristics.It can be used in many kinds of medium filtering.

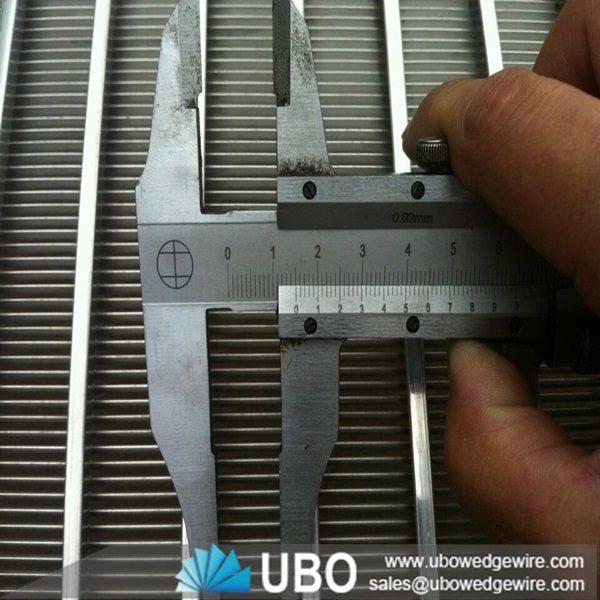

Wedge Wire wedge wire welding screen panels

Specifications of Wedge Wire welding screen panels:

Wedge Wire wedge wire welding screen panels





Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.
