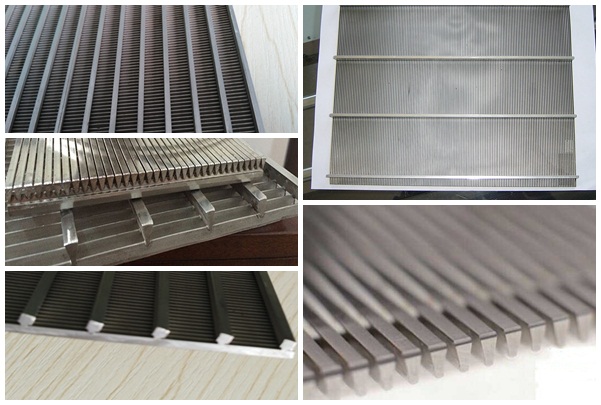

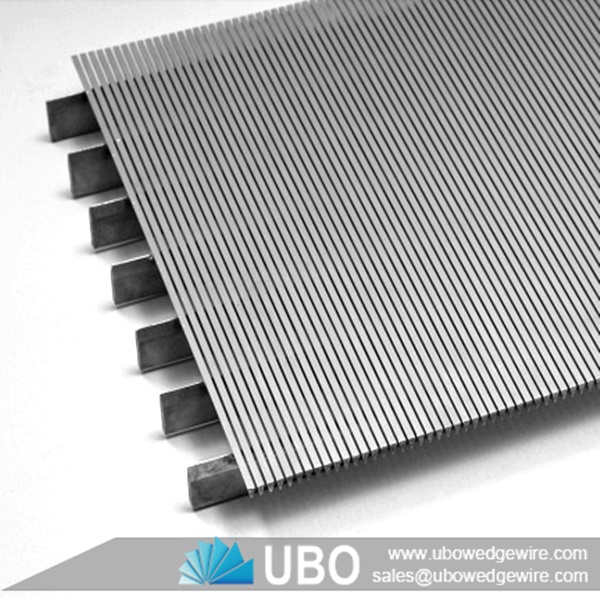

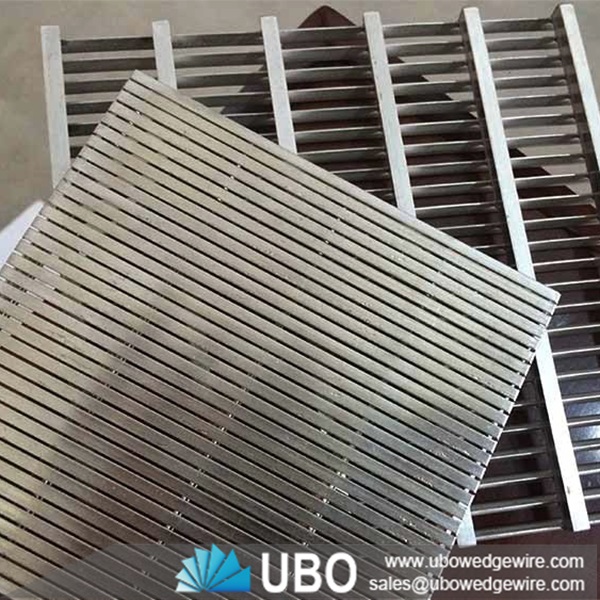

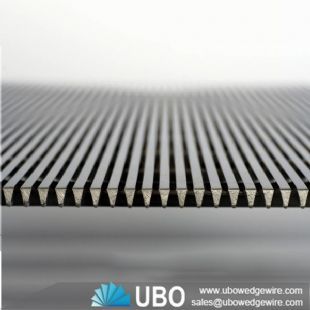

Wedge Wire Slot Wedge Wire Plate

More Views

Wedge Wire Slot Wedge Wire PlateWedge Wire Slot Wedge Wire PlateWedge Wire Slot Wedge Wire Plate

Wedge Wire Slot Wedge Wire Plate

Category:Wedge Wire Screen Panel
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Slot Wedge Wire Plate

The Wedge Wire slot wedge wire plates are used in the filtration industry,dewatering,desliming,jigging machines,sieve bend,wedge wire grating and vibrating screens.


We make polyurethane frame wedge wire panel and sieve bend,the abrasive resistance is much better than other steel screens,wedge wire sieve bend is economical and long life use.

Our company can custom make any Wedge Wire slot wedge wire plate to fit any customer's specified width and length requirements. The quality of workmanship that comes with constructing the panels, superior materials used and high precision slots ensure that our panels will meet even the most demanding applications in the industry.

Features of Wedge Wire Slot Wedge Wire Plate

The features of the Wedge Wire screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

Applications of Wedge Wire Slot Wedge Wire Plate

-- Fish Diversion Screen Panels

-- Flooring for malt kiln, germination and grain drying

-- Food Processing

-- Hatchery Screens

-- Mineral Processing

-- Surface water intake screens

-- Vibrating or Static intake screens

Wedge Wire slot wedge wire plate

Specifications of Wedge Wire Slot Wedge Wire Plate:

PROFILE WIRE
B (mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
H (mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
α (°)     6° ,10° , 12°
GAP SLOT WIDTH(mm)    0.3mm-10mm



LONG WEDGE
SUPPORT WIRE
  Convex shape wire
B(mm) 1MM-3MM B (mm) 3mm-5 mm
H(mm) 4MM-6MM H (mm) 3mm-5mm



SUPPORT PROFILES
 WIDTH(mm) 2.30 2.30 3.00 3.70 3.30
 HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30



Round Support Rod Construction Rectangular Support Rod Construction
63V on ¼" diameter at 1 ¼" centers 63V on .074" x ½" at 1" centers
69U on 5/16" diameter at 2" centers 69U on .074" x ¾" at 1 ½" centers
93V on 5/16" diameter at 2" centers 93V on .074" x 1" at 2" centers
125V on 3/8" diameter at 3" centers 125V on .105" x1" at 2" centers



Wedge Wire slot wedge wire plate

Packaging and Transportation of Wedge Wire Slot Wedge Wire Plate:

Package: in wood case

Delivery Time: 5-25 days
