Wedge Wire Screen Support Grid V Wire Flat Screen

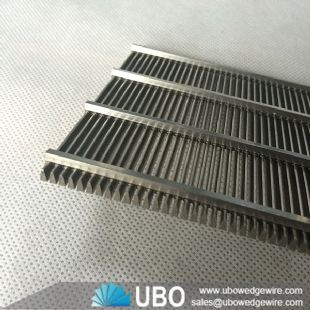

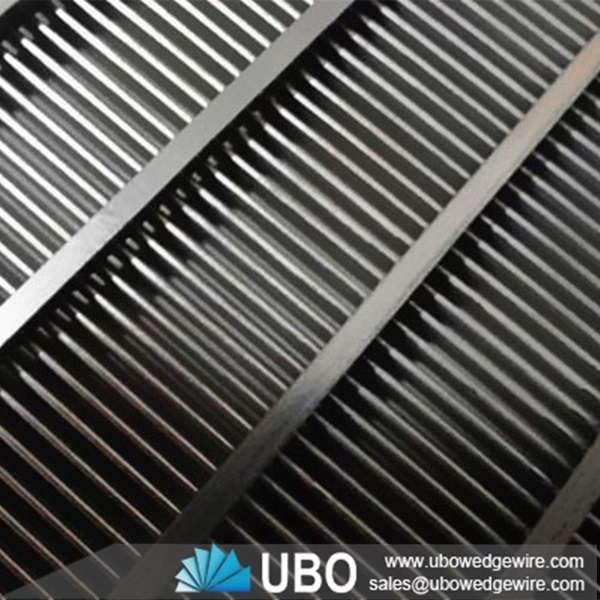

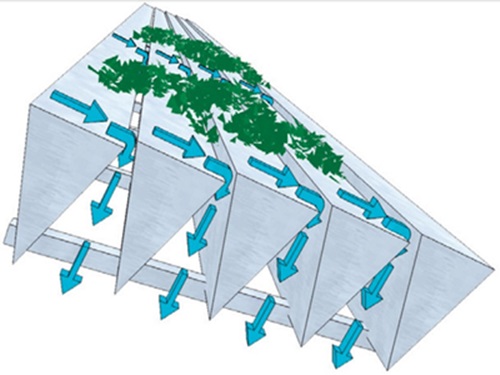

Wedge wire screen support grid V wire flat screen is also known as wedge wire screen flat panel. This V-shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.

Application for Wedge Wire Screen Support Grid V Wire Flat Screen

wedge wire screen support grids and V wire flat screens are versatile and reliable filtration solutions that are widely used in various industrial applications.

1. One common application for wedge wire screen support grids is in water treatment plants.

2. V wire flat screens are commonly used in the mining industry for dewatering and sizing applications.

3. Both wedge wire screen support grids and V wire flat screens are also used in the food and beverage industry for separation and filtration of liquids and solids.

Advantages for Wedge Wire Screen Support Grid V Wire Flat Screen

1. High Strength: Wedge wire screens are made of high-quality stainless steel wire that is welded onto a support structure, providing high strength and durability.

2. Corrosion Resistance: The stainless steel material used in wedge wire screens is highly resistant to corrosion, making it ideal for use in harsh environments.

3. Uniform Slot Opening: The wedge wire design creates a uniform slot opening that allows for efficient filtration of liquids and gases while preventing the passage of unwanted particles.

4. Easy to Clean: Wedge wire screens are easy to clean and maintain, ensuring a long service life.

Standard Constructions of Flat Welded Screens:

A combination of different support profiles and pitches within one flat screen is possible
Variable spacing between support wires in one screen
Curved screens; curve direction and filtration direction are to be determined by the customer
Frames and reinforcements can be designed and calculated on request, provided that we know the temperature, supports and differential pressure

Slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm.
Diameter available: 1.5”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 14”.
Open area: up to 60%.
Material: low carbon, low carbon galvanized steel (LCG) steel treated with plastic. spraying, stainless steel (304).
Lengths up to 6 meters.
Diameter: ranging from 25 to 2000mm.
End connection: plain beveled ends for butt welding or threaded.
