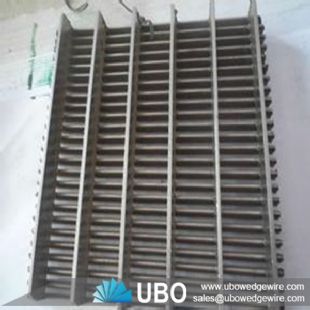

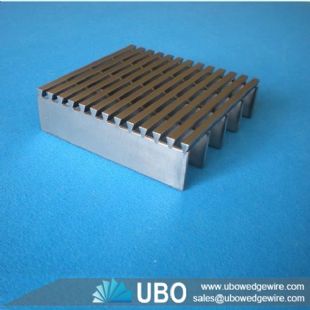

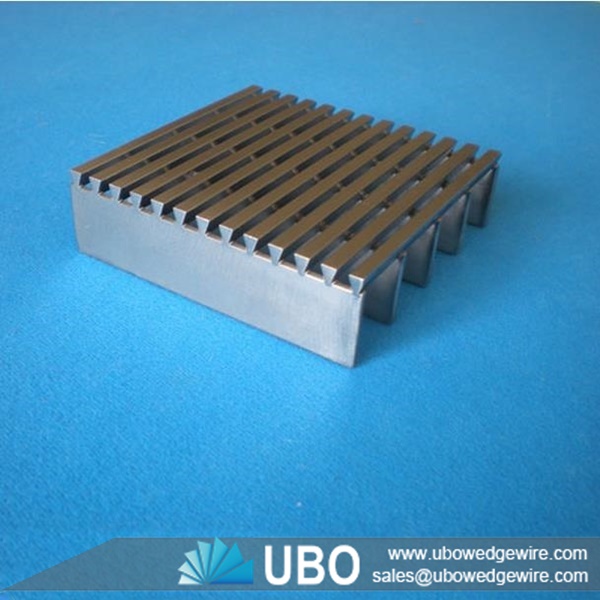

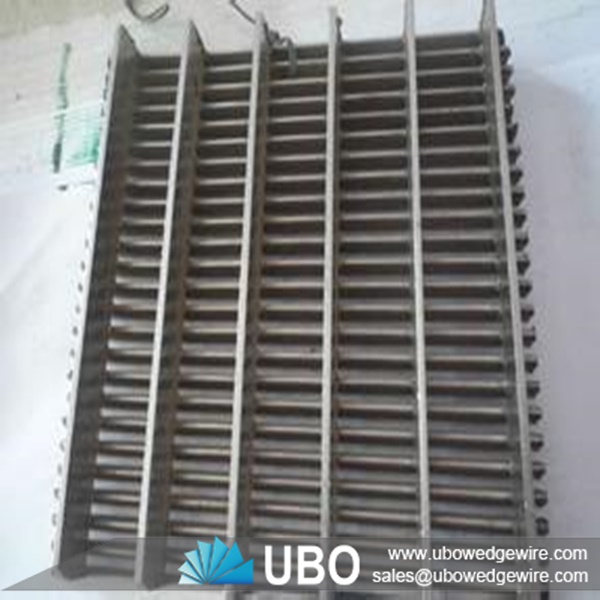

Wedge Wire Cross-Flow Sieve Panels

More Views

Wedge Wire Cross-Flow Sieve PanelsWedge Wire Cross-Flow Sieve PanelsWedge Wire Cross-Flow Sieve Panels

Wedge Wire Cross-Flow Sieve Panels

Category:Wedge Wire Screen Panel
Material:stainless steel 304, 316, 316L
Properties:wedge wire screen
Application:water,oil,gas,liquid filtration, industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Cross-Flow Sieve Panels

Wedge wire cross-flow sieve panels can also be  called Johnson screen flat panel, wedge wire sieve bend screen,stainless steel screen plate.

The dewatering capacity of a wedge wire cross-flow sieve panels is primarily influenced by the screen width, the slot opening, and the wire size (width). Installation angle, feed velocity and uniform distribution across the screen are also very important.

Features of Wedge Wire Cross-Flow Sieve Panels

-- High strength

-- Excellent performance

-- Fine finish

-- Typical static panels, including architectural panels, will have a surround frame welded around the screen

-- Typical vibrating panels will have angles welded down two sides of the panel and rubber vibration dampening strips glued to the top and bottom of the screen

Usages of Wedge Wire Cross-Flow Sieve Panels

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Wedge wire Cross-Flow Sieve Panels

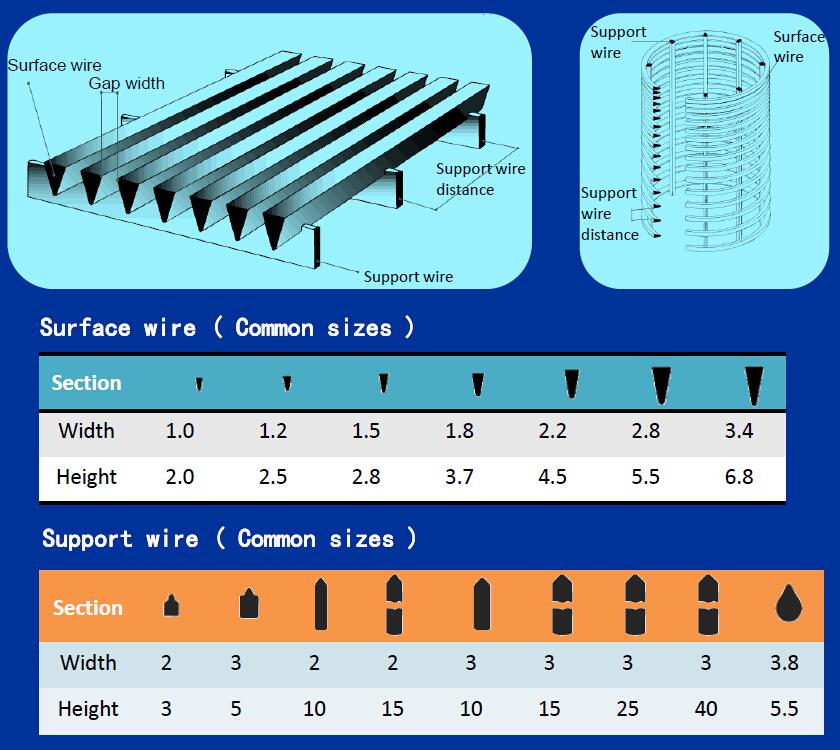

Specifications of Wedge Wire Cross-Flow Sieve Panels:

Slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm.

Open area: up to 60%.

Material: low carbon, low carbon galvanized steel (LCG) steel treated with plastic. spraying, stainless steel (304).

Lengths up to 6 meters.

Width: ranging from 25 to 2000mm.

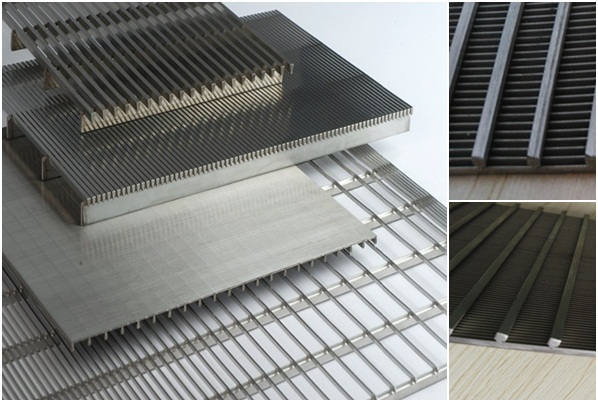

Wedge wire Cross-Flow Sieve Panels

Packaging and Transportation of Wedge Wire Cross-Flow Sieve Panels:

packing
