Wedge Slotted Wire Flat Screen Plate for Sewage Filtration
Category: | Wedge Wire Screen Panel |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen panel |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Slotted Wire Flat Screen Plate for Sewage Filtration
Wedge Slotted Wire Flat Screen Plate for Sewage Filtration are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a Wedge Slotted Wire Flat Screen Plate on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements.

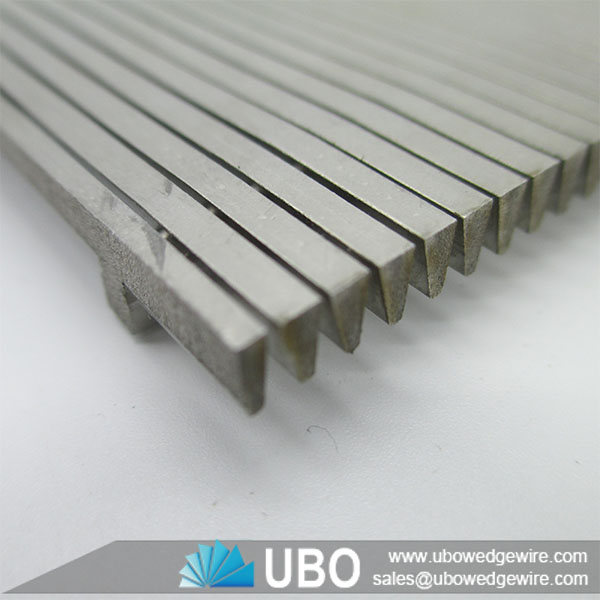

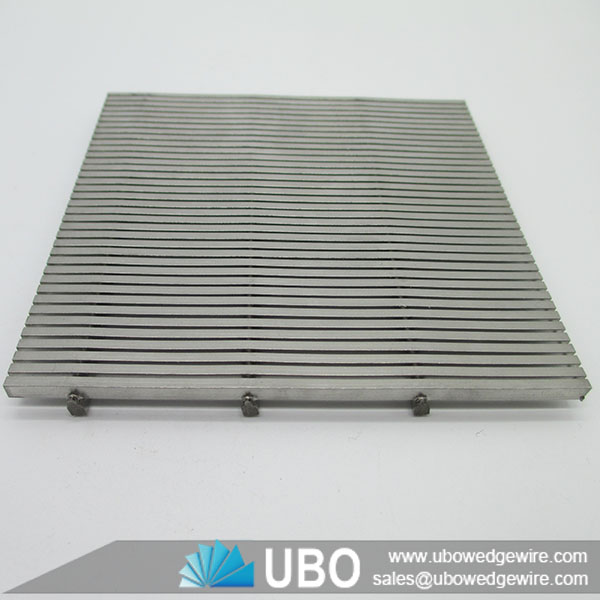

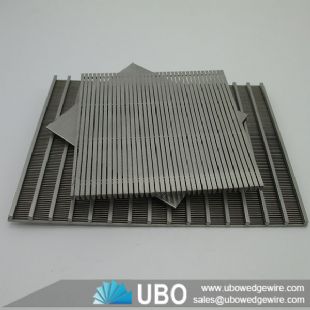

Our wedge wire screen panels also known as Johnson screen panels, are composed of v wire profiles and support profiles.
Application of Wedge Slotted Wire Flat Screen Plate for Sewage Filtration
The Wedge Slotted Wire Flat Screen Plate is a highly suitable solution for sewage filtration due to its specific design and features. Its application in this domain offers numerous benefits and ensures efficient wastewater treatment.
One of the primary applications of the Wedge Slotted Wire Flat Screen Plate is in municipal wastewater treatment plants. It is commonly used as a key component in the initial stage of the filtration process, known as preliminary or coarse screening. The screen plate effectively removes large debris, such as sticks, rags, plastics,and other solid waste materials that could potentially clog downstream equipment or interfere with subsequent treatment processes.
Characteristic of Wedge Slotted Wire Flat Screen Plate for Sewage Filtration
Wedge Wire screen plate offers several characteristics that make it an ideal choice for sewage filtration. Its precise slot design, durable construction, optimal filtration efficiency,ease of maintenance,and versatility contribute to effective solid separation in wastewater treatment systems.The use of this screen plate promotes cost-effective operation while supporting environmental sustainability by ensuring cleaner effluent discharge.
Specifications of Wedge Slotted Wire Flat Screen Plate for Sewage Filtration:
|
|||||||
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
Length Range |
Up to 6000mm |
||||||
Width Range |
Up to 6000mm |
||||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
Other Shapes |
Could cut to any shape according to requirement, such as round, semicircle, sector, and so on. |
||||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5x2 |
2x3 |
2x4 |
3x5 |
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.8x2.5
2x3 |
2x3
2x4
3x5
3x6
3x10
4x7 |
2x4
3x5
3x6
3x10
4x7
5x6 |
3x5
3x6
3x10
4x7
5x6
5x8 |
End Finishing |
With the frame, without any frame, according to request. |
||||||
Note |
Customized According To Requirement |
Packaging and Transportation of Wedge Slotted Wire Flat Screen Plate for Sewage Filtration:
