Quality Wedge Wire Screen Manufacturer in China

Stainless Steel wedge wire flat sieve screen plate for separation

More Views

Stainless Steel wedge wire flat sieve screen plate for separationStainless Steel wedge wire flat sieve screen plate for separationStainless Steel wedge wire flat sieve screen plate for separation

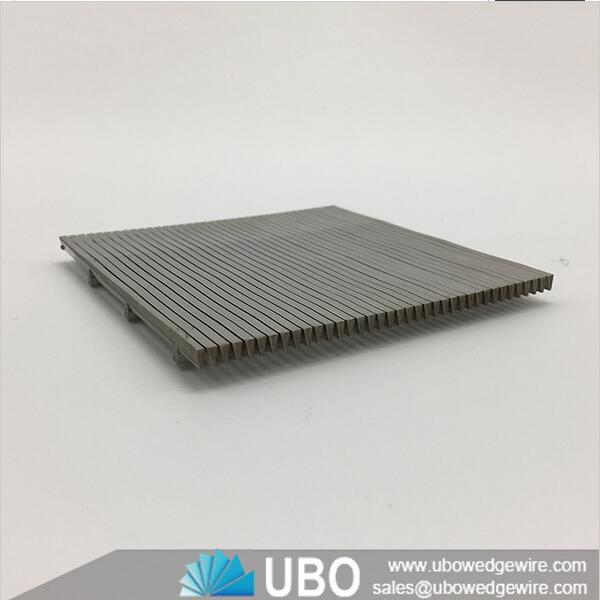

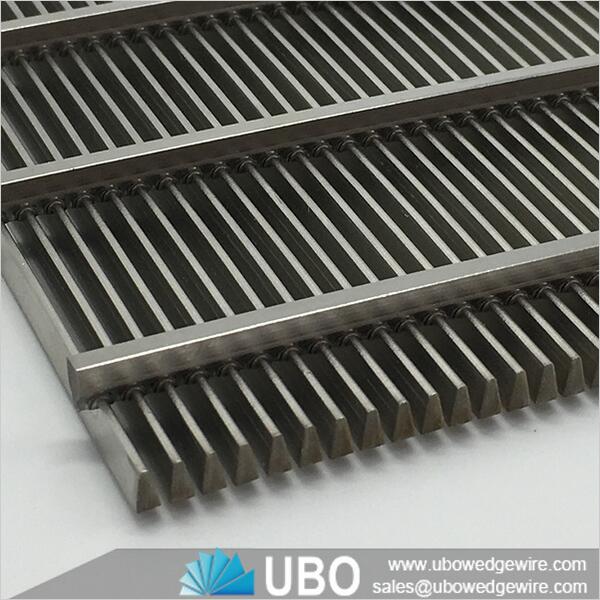

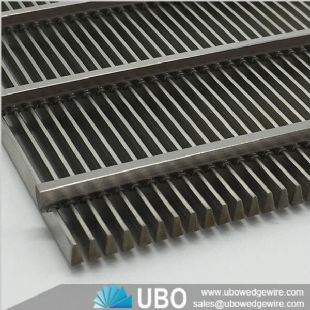

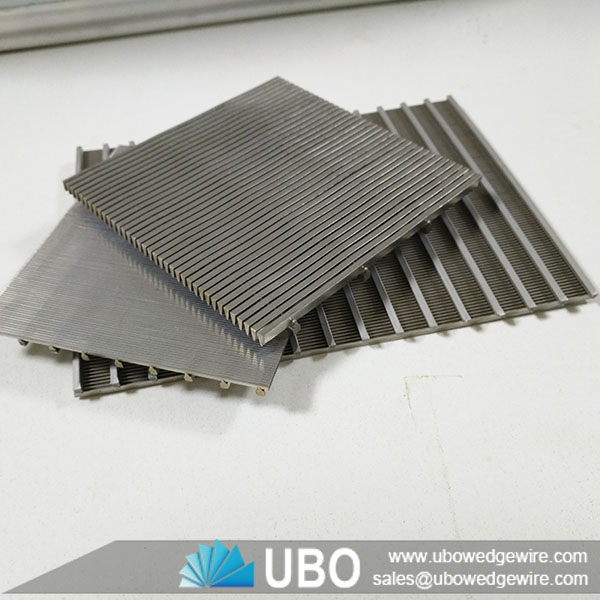

Stainless Steel wedge wire flat sieve screen plate for separation

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:flat wedge wire screen panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel wedge wire flat sieve screen plate for separation

Stainless Steel wedge wire flat sieve screen plates are made in panel type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Wedge Wire wedge wire flat sieve screen plate for separation

Stainless Steel wedge wire flat sieve screen plate
offer a perfectly flat and smooth surface with rectangular openings.This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen.

Stainless Steel wedge wire flat sieve screen plate for separation

Stainless Steel wedge wire flat sieve screen plate for separation

Features of Stainless Steel wedge wire flat sieve screen plate for separation

Wedge Wire flat wedge wire screen panel is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Application of Stainless Steel wedge wire flat sieve screen plate for separation

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Stainless Steel wedge wire flat sieve screen plate for separation

Specifications of Stainless Steel wedge wire flat sieve screen plate for separation:

Wedge Wire wedge wire flat sieve screen plate for separation

Stainless steel wedge wire screen for filtration
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Width:
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Packaging and Transportation of Stainless Steel wedge wire flat sieve screen plate for separation:

Wedge Wire wedge wire flat sieve screen plate for separation
