Vee Slot Wedge Wire Screen Panel
Category: | Wedge Wire Screen Panel |
---|---|
Material: | stsainless steel |
Properties: | wegde wire screen |
Application: | water filtration,liquid filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

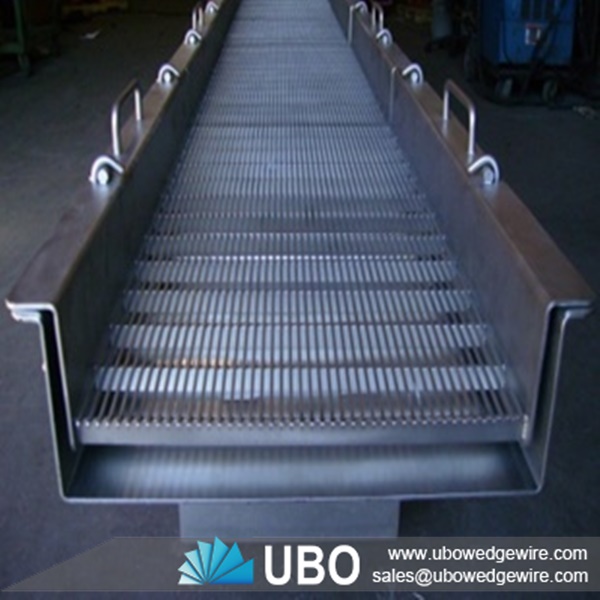

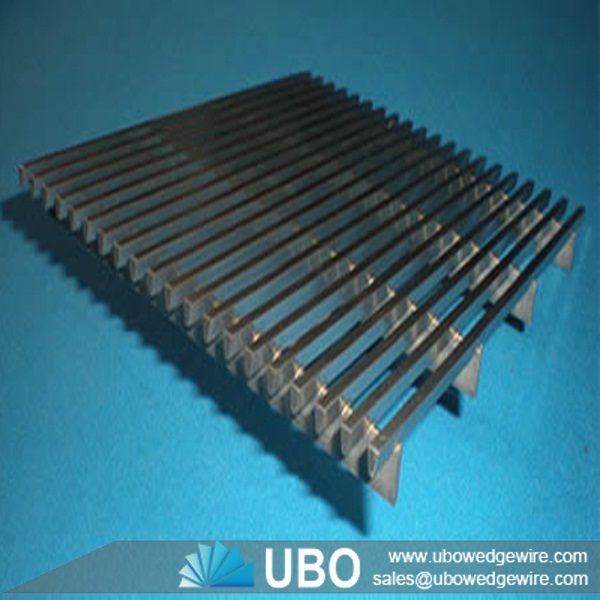

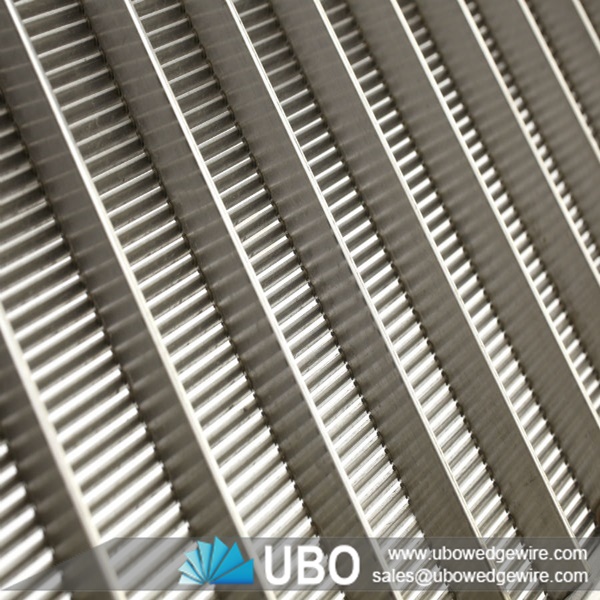

Details of Vee Slot Wedge Wire Screen Panel
Vee slot Wedge Wire screen panels are manufactured to the highest standard using quality stainless steel Wedge Wire. We deliver high open area screens built for purpose. The combination of quality workmanship, superior materials, accurate slots and high open areas ensures that our panels meet the needs of the most demanding applications.
Advantages of Vee Slot Wedge Wire Screen Panel
-- Non-clogging surfaceLarge open area
-- Low pressure drop
-- Hydraulic efficiency
-- High flow rates
-- Mechanical strength
-- Abrasion-resistant
-- Easy cleaning
Usages of Vee Slot Wedge Wire Screen Panel
It can be used in Salt industry,food,the water-treating equipment,mineral processing,coal-cleaning plant and so on.
Specifications of Vee Slot Wedge Wire Screen Panel:
Diameter: 1-30inch
Minimum slot: 0.01mm
Wall thickness: 4mm or 6mm
Standard length: 5.8-6meters

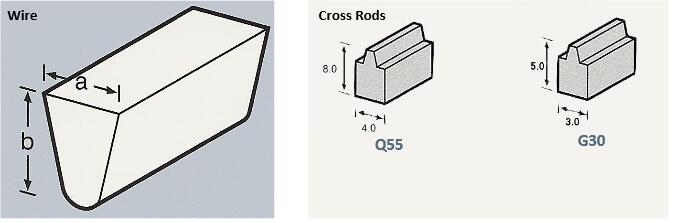

Wire Width | Wire Height | Relief Angle | Typical Support Rods | |
---|---|---|---|---|
30V | .030" | .06" | 10 | .125" round |
45V | .045" | .09" | 10 | .125" round |
63V | .063" | .11" | 13 | .156" round |
69U | .069" | .17" | 8 | .075" x 1" bar |
93V | .093" | .15" | 13 | .25" round or .075" bar |
93U | .093" | .17" | 5 | .25" or .38" round |
125V | .125" | .20" | 13 | .38" round |
