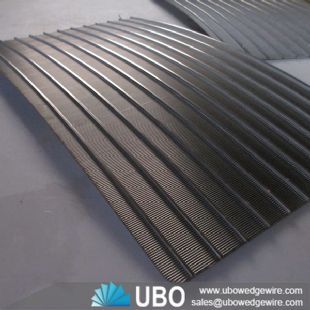

Vee slot curve screen for food processing

More Views

Vee slot curve screen for food processingVee slot curve screen for food processingVee slot curve screen for food processing

Vee slot curve screen for food processing

Category:Wedge Wire Application
Material:stsainless steel
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration,fond filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Vee slot curve screen for food processing

Vee slot curve screen also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.

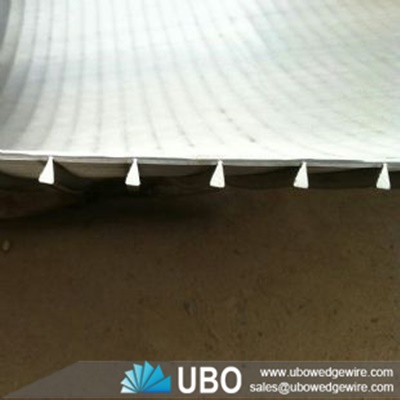

Vee slot curve screens are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

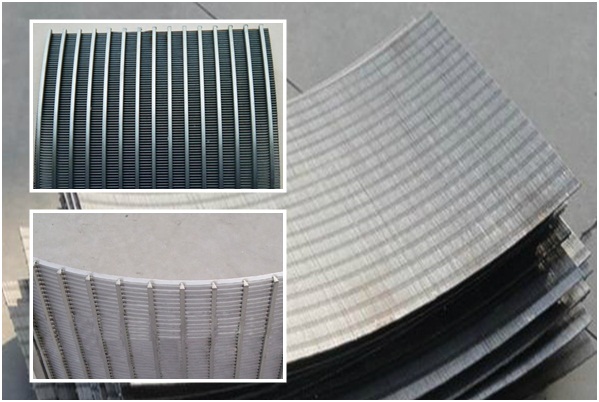

Vee slot curve screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Features of V shap wire sieve bend screen for filtration

Low Headroom - only 1.1 metres (44") tall for the 900mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Application of V shap wire sieve bend screen for filtration

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

       Vee slot curve screen for food processing



Specifications of Vee slot curve screen for food processing:

Material:stainless steel

Type:curve screen

Radian:15º  30º  and as your request

Vee slot curve screen

Specifications:


Profile Wire Width Relief Angle Typical Support Rod
1/16”  (.063”) 13 degrees Small round rod
3/32”  (.093”) 13 degrees Round or Rectangular bar
1/8” (.125”) 13 or 5 degrees Round or Rectangular bar



SUPPORT ROD
ROUND
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30 Ø2.5--Ø5mm
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30 ----

Packaging and Transportation of Vee slot curve screen for food processing:

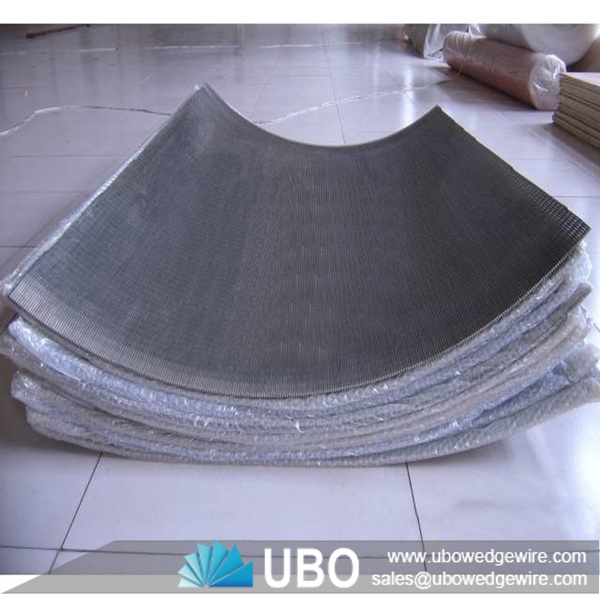

1.Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2.We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
