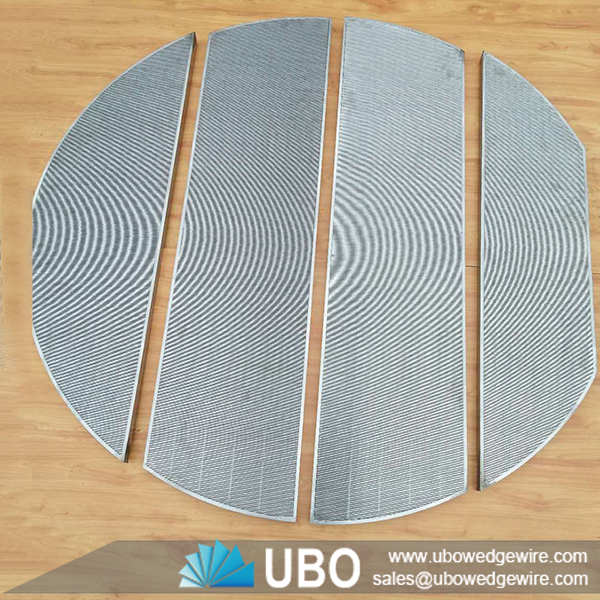

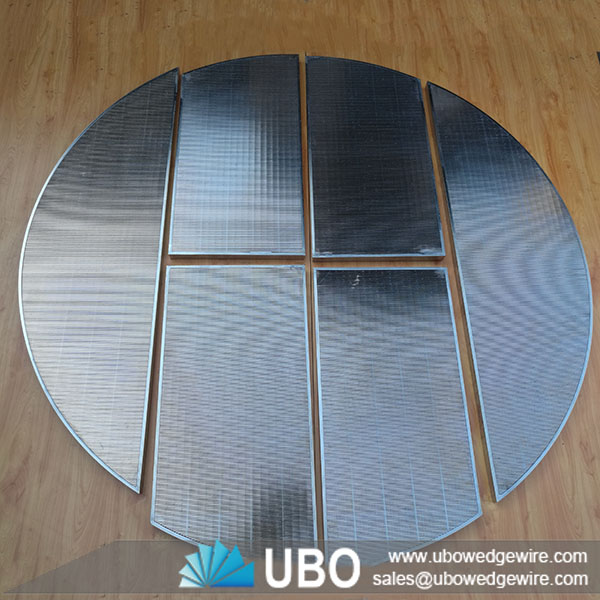

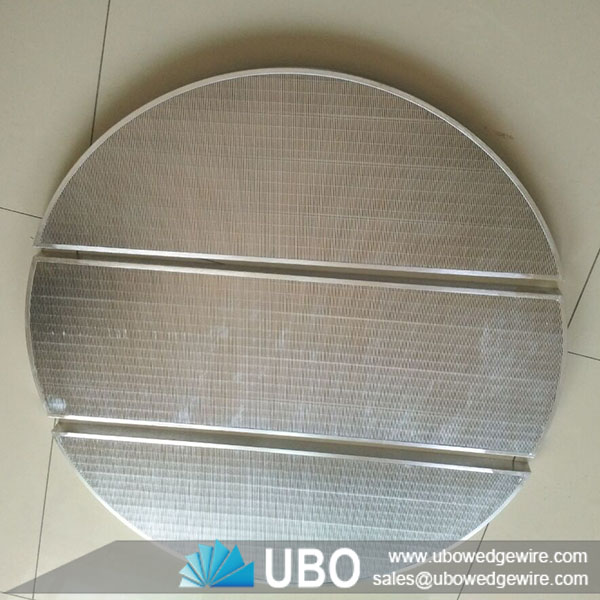

Stainless Steel wedge wire lauter tun screen plate for beer processing
Category: | Wedge Wire Screen Panel |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | lauter tun screen |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel wedge wire lauter tun screen plate for beer processing
Stainless Steel wedge wire lauter tun screen plate for beer processing consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
Application of Stainless Steel wedge wire lauter tun screen plate for beer processing
• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations
Characteristic of Stainless Steel wedge wire lauter tun screen plate for beer processing
1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.
Specifications of Stainless Steel wedge wire lauter tun screen plate for beer processing:
Material: |
stainless steel (304,316,316Letc.) |
Wedge Wire (mm): |
Width : 2 |
Height:4 |
|
Support Rod (mm): |
Width : 3 |
Height : 5 |
|
Diameter: |
37'',45'',47'',54'',59'',74'',900mm,1.2m,1.6m,1.899m etc |
Bearing rod: |
3*15,3*20,3*25 |
Frame |
8*25,8*30 |
Slot size: |
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
Note: |
Other specifications can be customized according to your requirement. |
Packaging and Transportation of Stainless Steel wedge wire lauter tun screen plate for beer processing:
