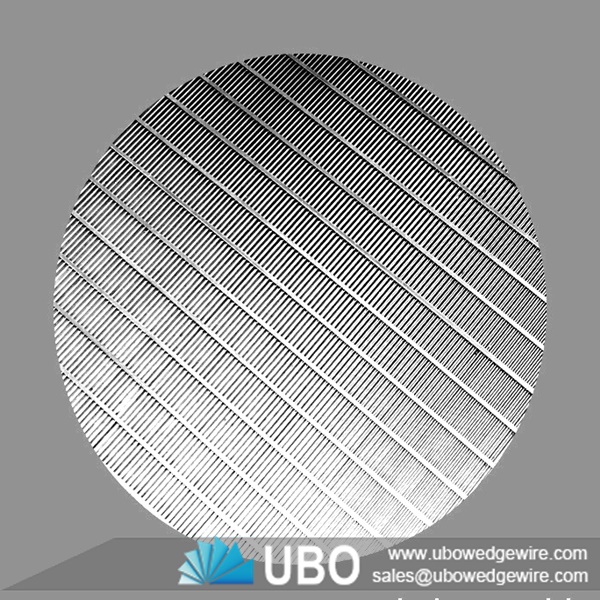

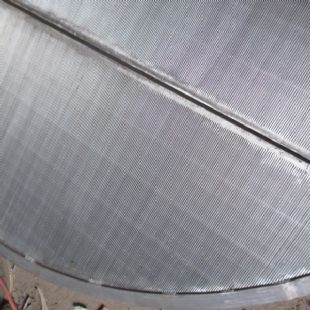

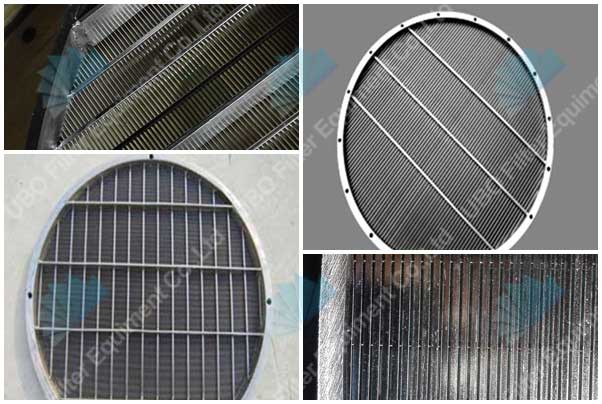

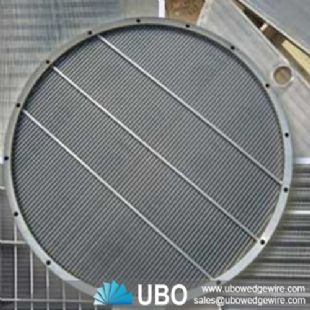

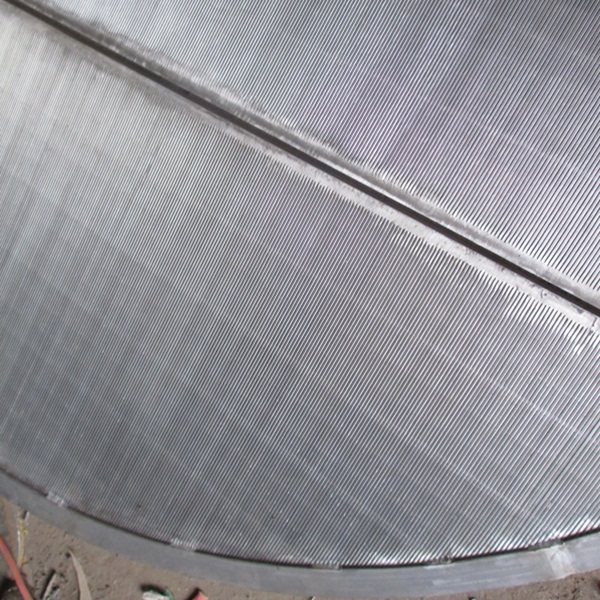

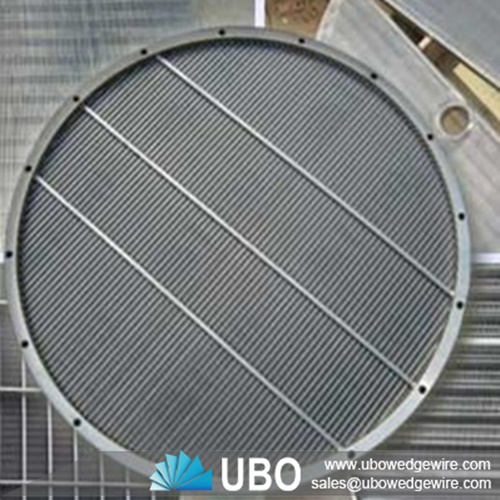

Stainless Steel Wedge Wire Lauter Tun Screen

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Lauter Tun Screen

The stainless steel wedge wire lauter tun screen can be used in a variety of applications ranging from classifying to recovering usable products that would end up in sewer line to capturing solids from effluents.

A continuous slot screen sieve bend gives you a great amount of open area, is significantly more affordable and requires less maintenance than vibrating or rotary drum options.

It's made of support rod and wire , wire shape is normally triangle wire ,support rode shape could be triangle wire, round wire , cuboid wire .Also it could be as per your requirement.

Features of Stainless Steel Wedge Wire Lauter Tun Screen

-- Self Supporting;

-- High Abrasion resistance;

-- Low pressure drop;

-- High resistance to Vibration.

Application of Stainless Steel Wedge Wire Lauter Tun Screen

Stainless steel wedge wire lauter tun screen can be parts of deep well pumps or submersible pumps; can be used for water treatment equipment, environment protection, the sea water desalination, water softening treatment, oil and chemical processing; terminal filtration for petroleum products, filtration for chemical acid and soda liquid, for alcohol and other organic solvents recycle filtration.

stainless steel wedge wire lauter tun screen

Specifications of Stainless Steel Wedge Wire Lauter Tun Screen:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

stainless steel wedge wire lauter tun screen

Packaging and Transportation of Stainless Steel Wedge Wire Lauter Tun Screen:

Package: in wood case

Delivery Time: 5-25 days
