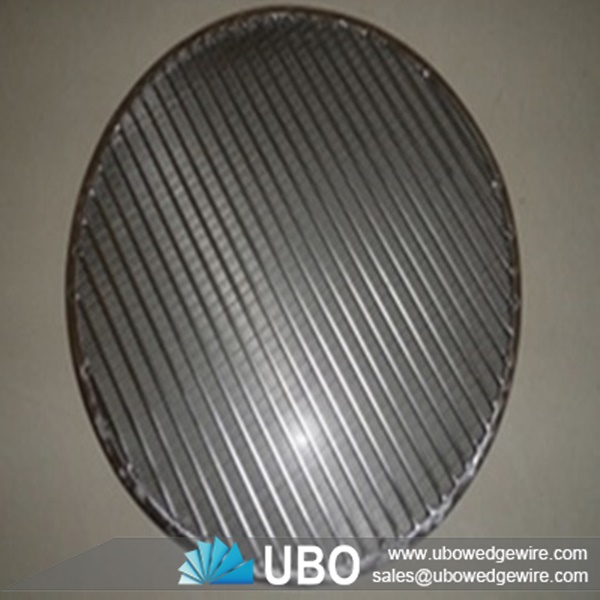

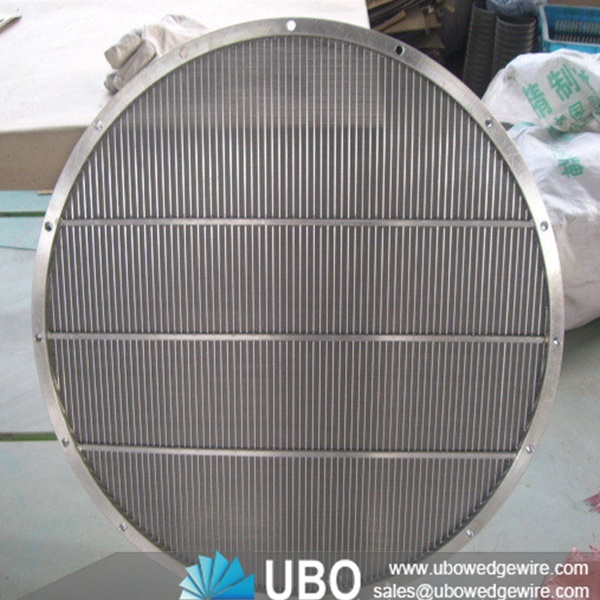

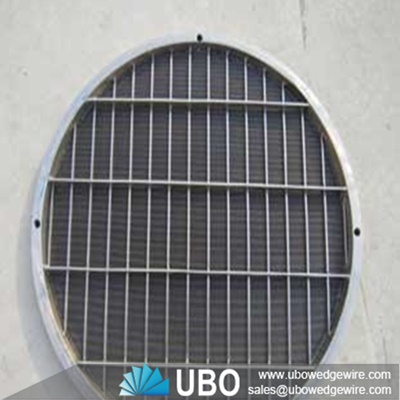

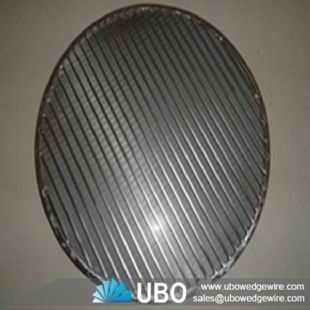

Stainless Steel Wedge Wire Circular Sieve Plate

More Views

Stainless Steel Wedge Wire Circular Sieve PlateStainless Steel Wedge Wire Circular Sieve PlateStainless Steel Wedge Wire Circular Sieve Plate

Stainless Steel Wedge Wire Circular Sieve Plate

Category:Wedge Wire Screen Panel
Material:stainless steel
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wedge Wire Circular Sieve Plate

stainless steel wedge wire circular sieve plate can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.


stainless steel wedge wire circular sieve plate can be designed to optimize the open area, strength and wear life for each application. The sieve plates are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.

Advantages of Stainless Steel Wedge Wire Circular Sieve Plate

- flatness to within tight tolerances

- no weakening of the welds, because of flattening (and no stress corrosion problems as a result)

- accurate distance between support profiles

- possibility of different support wires in one screen

- possibility of variable spacing between support wires in one screen

Usage of stainless steel wedge wire circular sieve plate

vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.

stainless steel wedge wire circular sieve plate

Specifications of Stainless Steel Wedge Wire Circular Sieve Plate:

stainless steel wedge wire circular sieve plate

stainless steel wedge wire circular sieve plate


Specification
(Profile wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30


Specification (support rods):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm


Note: other wires and rods can be customed according to your requests


Slot size

0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also

achieved upon request.


Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)


Length

Lengths up to 6 meters.


Diameter

ranging from 25mm to 800mm.


End connection

Plain beveled ends for butt welding or threaded


Packaging and Transportation of Stainless Steel Wedge Wire Circular Sieve Plate:

Package: in wood case

Delivery Time:5-25 days.
