Screen Support Grids

Category:Wedge Wire Screen Panel
Material:stainless steel
Properties:wedge wire screen
Application:Molecular sieve; Catalyst bed support; Ion exchange; Sand filters; False bottoms

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Screen Support Grids

The support grid is a flat screen panel that provides uniform flow collection which is essential in many applications. This is particularly important when screens are used to reserve expensive ion exchange resins. Support grids provide superior media retention characteristics in vessels of all types. They feature durable construction, precise open area, and are virtually non-clogging. For larger vessel diameters Longjia screen support grids are fabricated in segments to allow installation through a vessel man-way.

Arrangement & Installation of Screen Support Grids

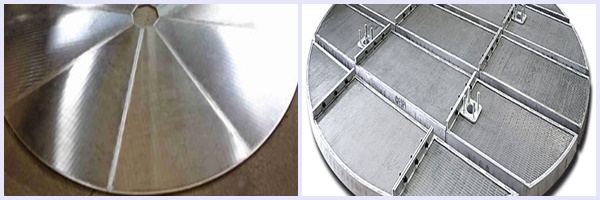

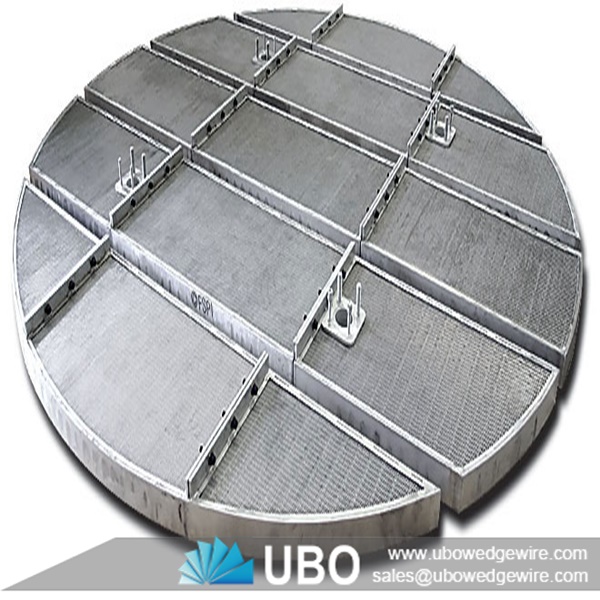

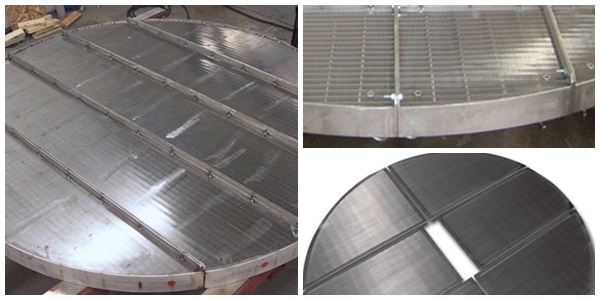

A support grid could be made out of parallel or pie shaped segments, each segment just resting on the beams or bolted to or welded to the next one. The joining bars could be flush or project above the screening surface. Support structure can be included for additional strength.
The support grids can be attached to the supporting structure by bolts fixed to the grid or part of the vessel itself.

Usage of Screen Support Grids

Molecular sieve; Catalyst bed support; Ion exchange; Sand filters; False bottoms

Screen Support Grids

Specifications of Screen Support Grids:

Material:stainless steel

Slot:0.2-1mm

OD:1-4meter

Part: 5 fans or as your requirement

Screen Support Grids

Packaging and Transportation of Screen Support Grids:

Package: in wood case

Delivery Time: 5-25 days
