Flat Wedge Wire Plate Filter

More Views

Flat Wedge Wire Plate FilterFlat Wedge Wire Plate FilterFlat Wedge Wire Plate Filter

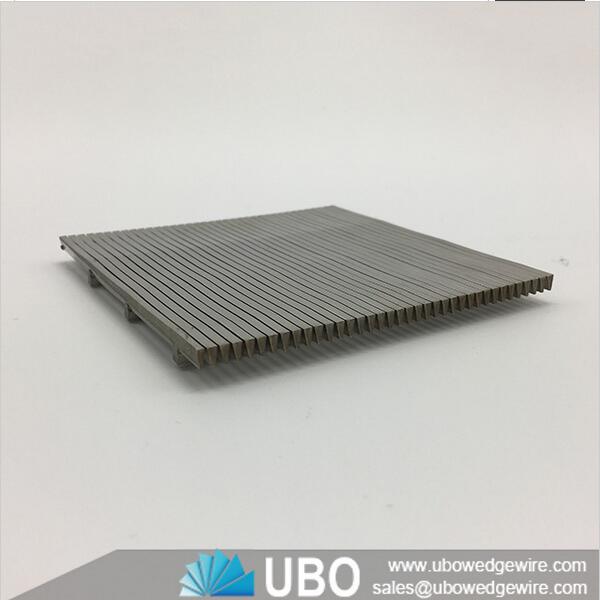

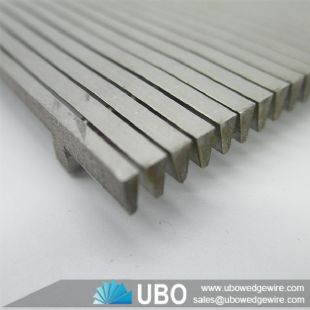

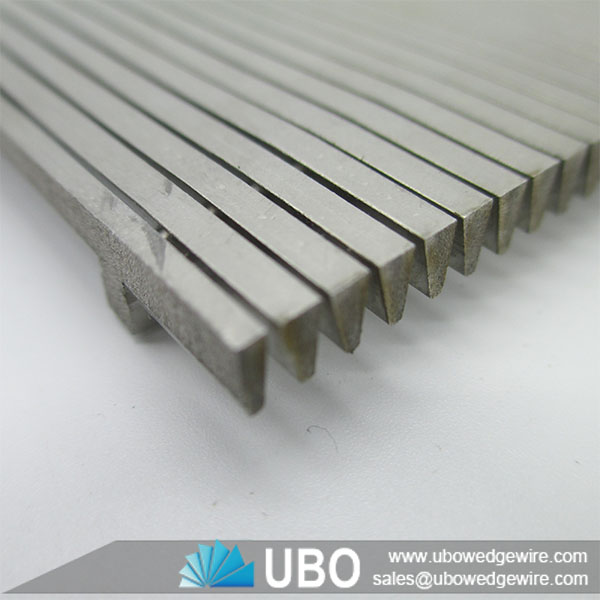

Flat Wedge Wire Plate Filter

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Flat Wedge Wire Plate Filter

Flat wedge profile Wedge Wire Wedge Wire screen plate filters are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a stainless steel circle screen plate on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

Flat wedge profile Wedge Wire Wedge Wire screen plate filter

Flat wedge profile Wedge Wire Wedge Wire screen plate filter

Advantages of Flat Wedge Wire Plate Filter



-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

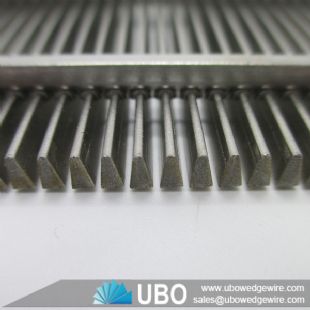

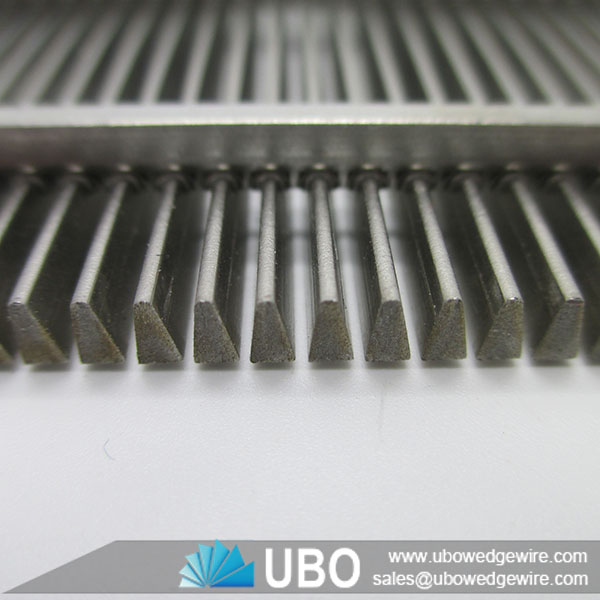

-- A ’V’ shaped profile wire which avoids clogging and ensures uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening

Applications of Flat Wedge Wire Plate Filter



1) Widely used in vairous kinds of medium filtering

2) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;

3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;

4) The organic solution recycling filter



Flat wedge profile Wedge Wire Wedge Wire screen plate filter

Specifications of Flat Wedge Wire Plate Filter:

Flat wedge profile Wedge Wire Wedge Wire screen plate filter

Flat wedge profile Wedge Wire Wedge Wire screen plate filter

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Other Shapes

Upon request, can be round, semicircle, sector, etc.

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

With the frame, without any frame, according to request.

Note

Customized According To Requirement

Packaging and Transportation of Flat Wedge Wire Plate Filter:

Flat wedge profile Wedge Wire Wedge Wire screen plate filter
